This chapter identifies the various components of your computer.
Become familiar with each component before you operate the computer.
Front with the display closed
The following figure shows the computer’s front with its display panel in the
closed position.

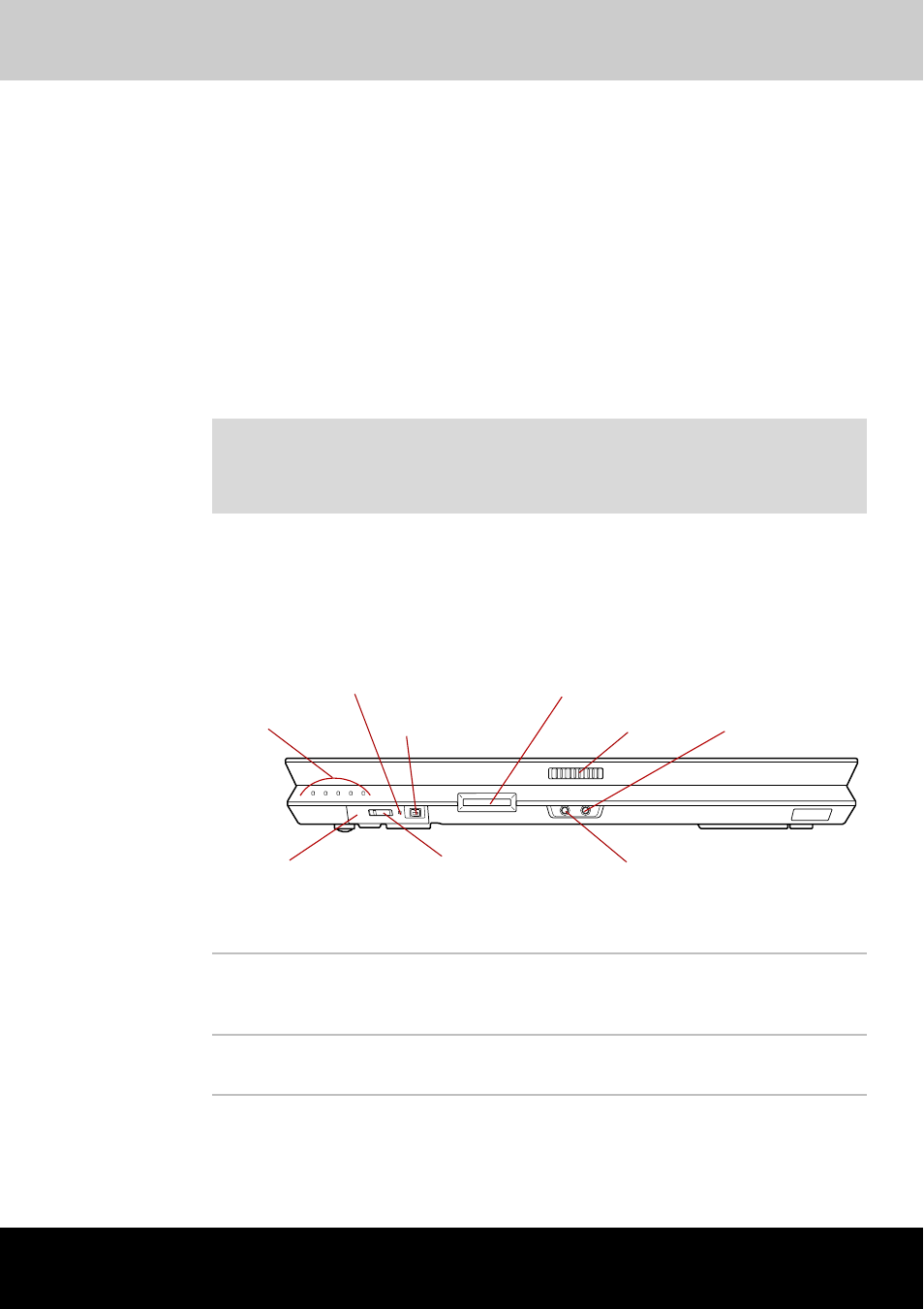

Front of the computer with display closed
Disclaimer (Non-applicable Icons)
For more information on the Disclaimer regarding Non-applicable Icons,
please refer to the Disclaimers section in Chapter 11.
Display latch
System
indicators
Microphone jack
Wireless communication
switch
i.LINK (IEEE1394)
port
Headphone jack
Bridge media slot
Infrared receiver
window
Wireless communication
indicator
System indicators
Five LEDs let you monitor the DC IN, power,
battery, HDD and Bridge media slot status.
Details are in the
Display latch
This latch secures the LCD panel in its closed
position. Slide the latch to open the display.
