Additional notes on speaker
for MCS-FS131
Install the main front left and right speakers at
an equal distance from the TV.
Precautions:
These speakers are not magnetically shielded
and so should not be placed near a TV or
monitor. Magnetic storage media (such as
floppy discs and tape or video cassettes) should
also not be kept close to these speakers.
Do not attach the subwoofer to a wall or
ceiling. They may fall off and cause injury.

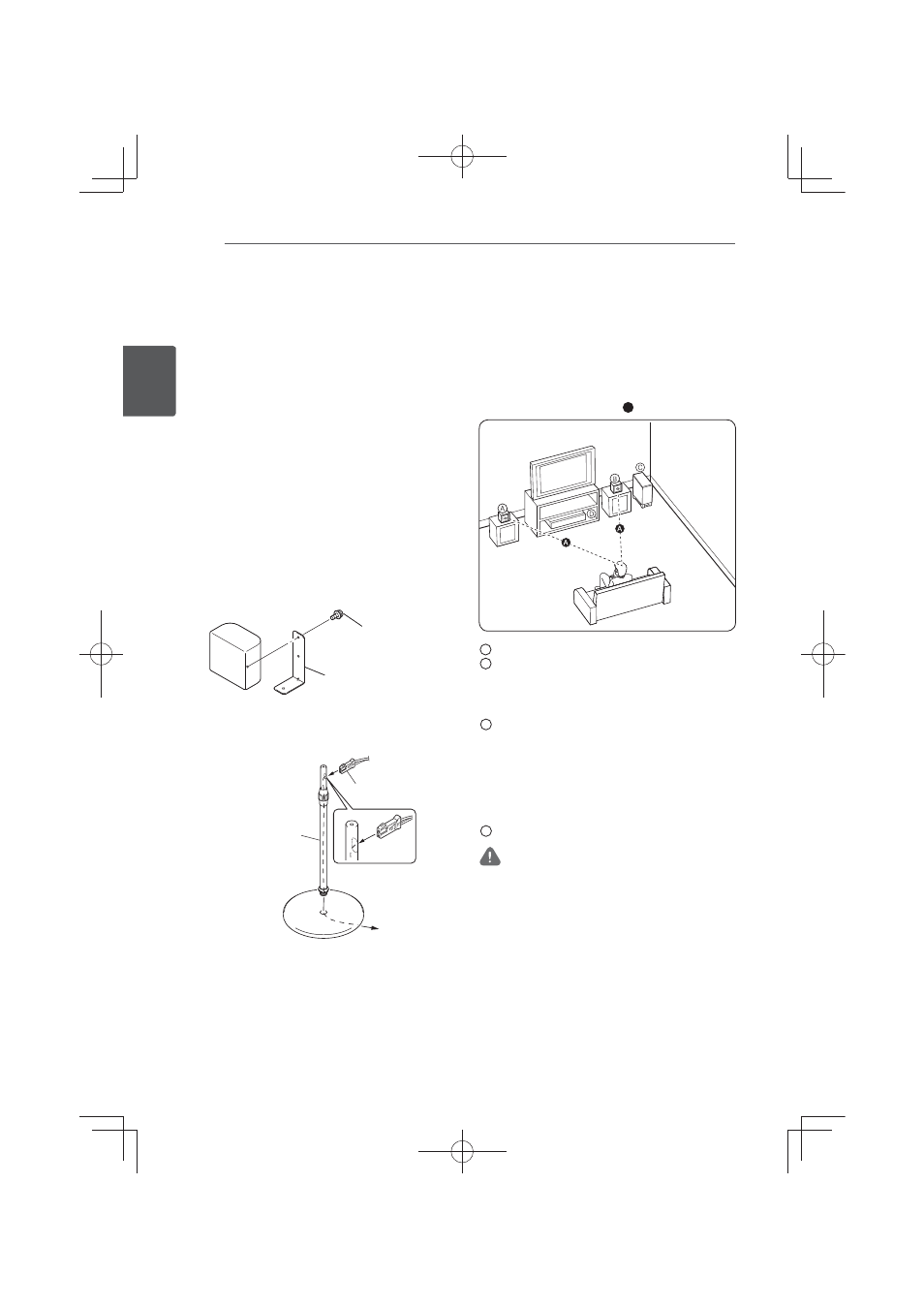

The unit’s front speaker can be attached to
speaker stand CP-31B.
:KHQXVLQJWKH&3%WKHVSHDNHUPXVW
be attached to the stand’s bracket using the
screws supplied with this unit. (The screws (M5)
supplied with the CP-31B cannot be used to
attach the speakers from this unit).
Stand bracket
Screws supplied
with this unit
You must also pass the speaker cable through
the bottom of the base from the hole in the
upper part of the speaker stand pipe.
Speaker cable
Speaker stand
(CP-31B)
Positioning the system for
MCS-FS131
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit
for explanation purposes. For the best possible
surround sound, all the speakers other than the
subwoofer should be placed at the same distance
from the listening position (
A
).
A Front left speaker (L)/
B Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as flush with the screen
surface as possible.
C Subwoofer:
The position of the subwoofer is not so
critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it
slightly toward the center of the room to reduce
the wall reflections.
D Unit
Caution
‡ Be careful to make sure children do not put their
hands or any objects into the *subwoofer duct.
*subwoofer duct: A hole for plentiful bass sound
on subwoofer cabinet (enclosure).
‡ Place the front speaker at a safe distance from the
child’s reach.
Otherwise it may result in the speaker falling
down and causing personal injury and/or property
damage.
‡ The speakers contain magnet parts, so color
irregularity may occur on the TV screen (CRT) or
computer monitor screen. Please use the speakers
away from the TV screen (CRT) or computer
monitor screen.
