Additional notes on speaker
for MCS-838, MCS-737
Install the main front left and right speakers at
an equal distance from the TV.
Precautions:
These speakers are not magnetically shielded
and so should not be placed near a TV or
monitor. Magnetic storage media (such as
floppy discs and tape or video cassettes) should
also not be kept close to these speakers.
Do not attach the front/surround speakers and
subwoofer to a wall or ceiling. They may fall off
and cause injury.
Positioning the system for
MCS-838, MCS-737

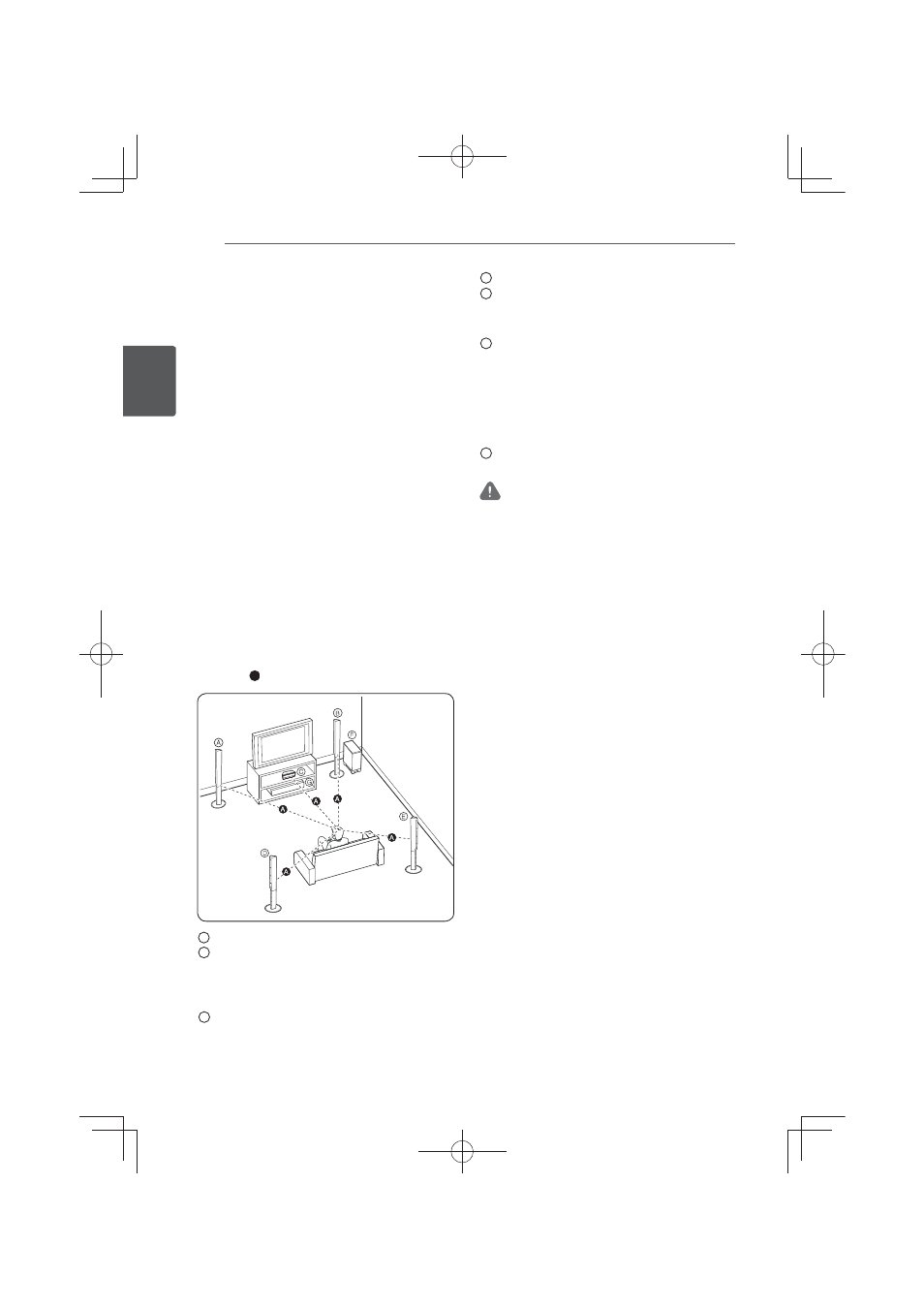

The following illustration shows an example
of positioning the system. Note that the
illustrations in these instructions differ from
the actual unit for explanation purposes. For
the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position (
A
).
A Front left speaker (L)/
B Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as flush with the screen
surface as possible.
C Center speaker:
Place the center speaker below or in front of
the monitor or screen.
D Surround left speaker (L)/
E Surround right speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
F Subwoofer:
The position of the subwoofer is not so
critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it
slightly toward the center of the room to reduce
the wall reflections.
G Unit
Caution
‡ Be careful to make sure children do not put their
hands or any objects into the *subwoofer duct.
*subwoofer duct: A hole for plentiful bass sound
on subwoofer cabinet (enclosure).
‡ Place the center speaker well out of the reach of
children.
Otherwise it may result in the speaker falling
down and causing personal injury and/or property
damage.
‡ The speakers contain magnet parts, so color
irregularity may occur on the TV screen (CRT) or
computer monitor screen. Please use the speakers
away from the TV screen (CRT) or computer
monitor screen.
