Connecting 29
En
C
onnec
ting
2

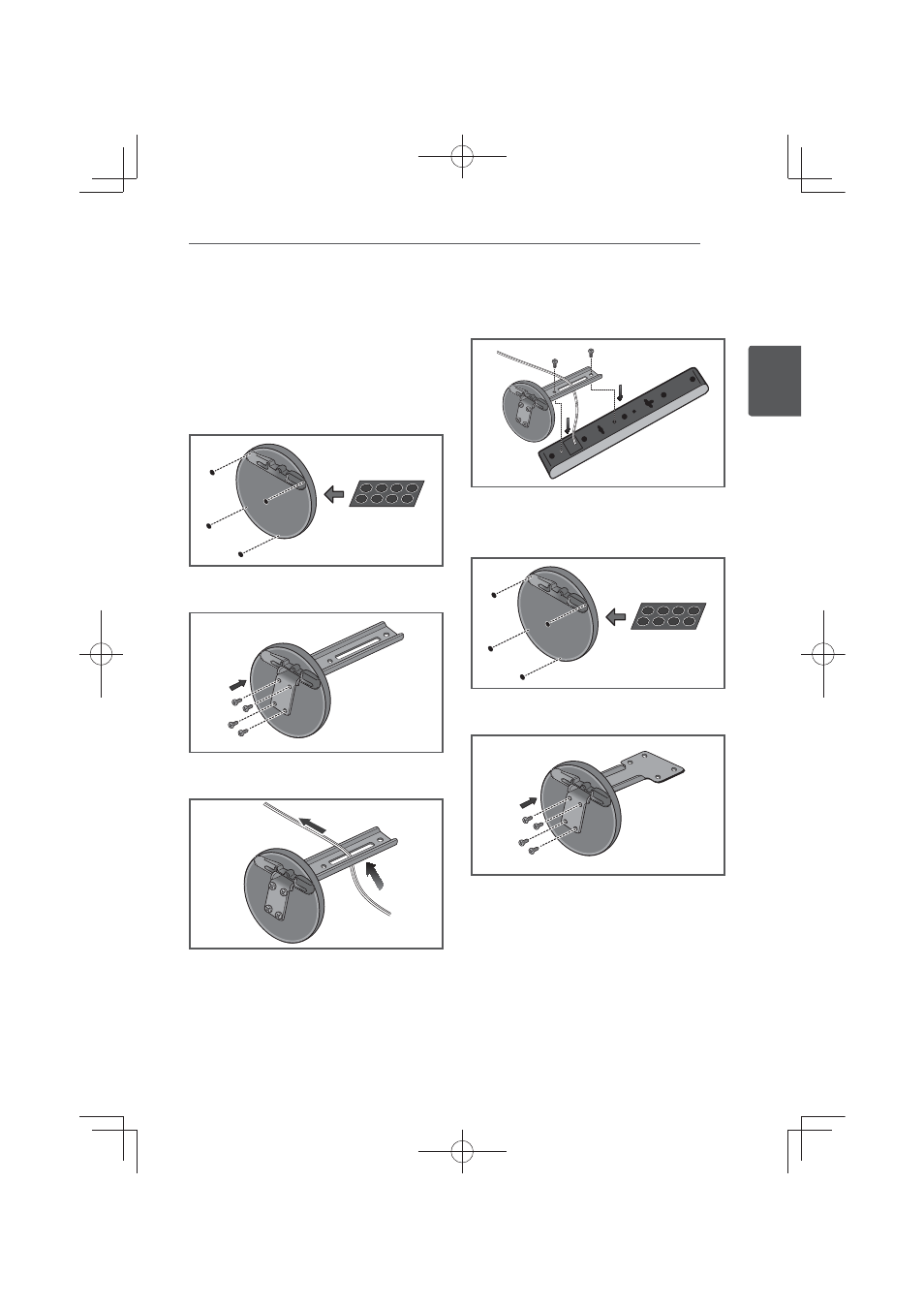

Speaker setup for MCS-FS232
Preparing the speakers
For front speakers:
Assembling the speaker stands and securing
your front speakers.
For vertical installation
1. Use the supplied adhesive to attach 4 small
pads to the speaker stand base.
Non-skid pads
2. Insert the large pole from the holes behind
the base and secure with the 4 screws.
3. Pass the speaker wire through the hole on
the pole.
4. Secure the speaker and the pole with 2
screws. Ensure that the speaker wire does
not get pinched between the speaker and
the pole.
For horizontal installation
1. Use the supplied adhesive to attach 4 small
pads to the speaker stand base.
Non-skid pads
2. Insert the small pole from the holes behind
the base and secure with the 4 screws.
