Connecting 31
En
C
onnec
ting
2
Wall mounting the speakers
for MCS-FS232
Before mounting
‡ Remember that the speaker system is heavy
and that its weight could cause the screws
to work loose, or the wall material to fail to
support it, resulting in the speaker falling.
Make sure that the wall you intend to mount
the speakers on is strong enough to support
them. Do not mount on plywood or soft
surface walls.
‡ Mounting screws are not supplied. Use
screws suitable for the wall material and
support the weight of the speaker.
Caution
‡ If you are unsure of the qualities and strength of
the wall, consult a professional for advice.
‡ Pioneer is not responsible for any accidents or
damage that result from improper installation.

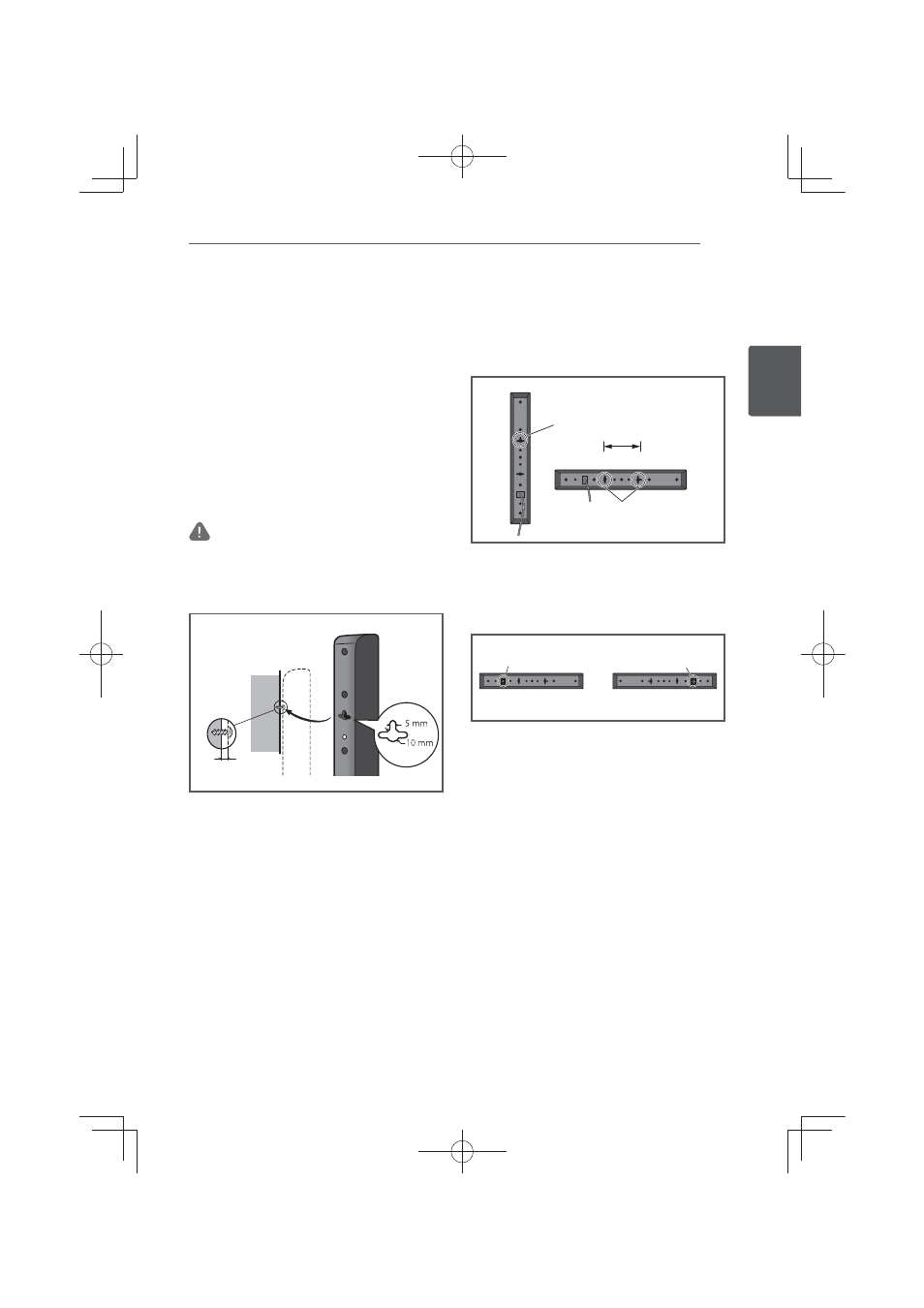

Attaching the speakers
The front speaker can be hung vertically or
horizontally on the wall. Use one hole to hang it
vertically and two holes to hang it horizontally.
The illustration below shows the front right
speaker.
Vertical set up
Horizontal set up
Hole
Hole
110
:KHQLQVWDOOLQJWKHVSHDNHUKRUL]RQWDOO\VHW
it up so that the speaker wire position on the
back side of the speaker is on the outside on
the end of the surface, farthest away from the
other speaker.
Speaker wire position Speaker wire position
Front right Front left
5 mm to 7 mm
Mounting screw
(not supplied)
