Board design and layout considerations, 1 power and ground planes, 2 power supply decoupling – Cirrus Logic CS4955 User Manual

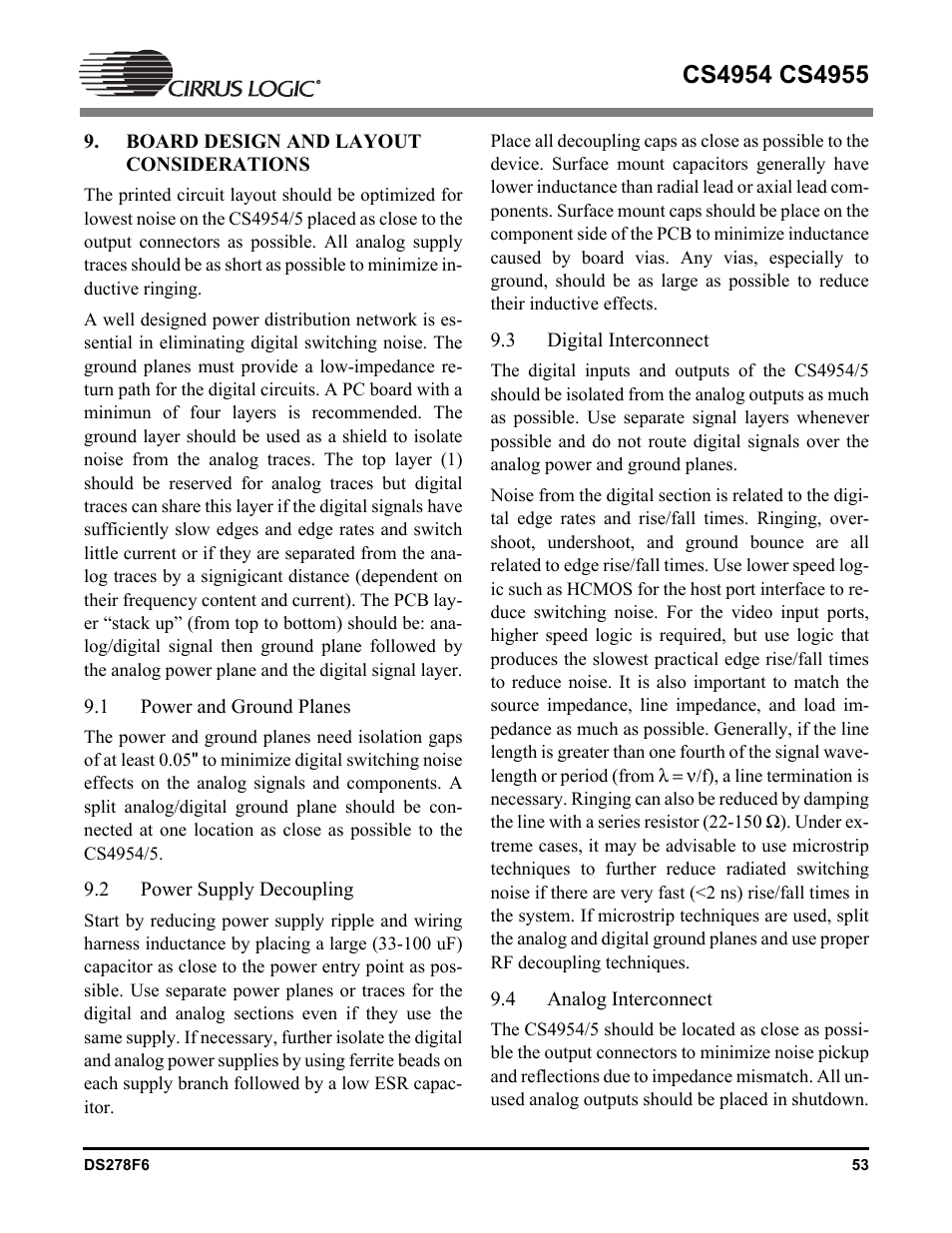

Page 53: 3 digital interconnect, 4 analog interconnect, Power and ground planes, Power supply decoupling, Digital interconnect, Analog interconnect

Board design and layout considerations, 1 power and ground planes, 2 power supply decoupling | 3 digital interconnect, 4 analog interconnect, Power and ground planes, Power supply decoupling, Digital interconnect, Analog interconnect | Cirrus Logic CS4955 User Manual | Page 53 / 60 Board design and layout considerations, 1 power and ground planes, 2 power supply decoupling | 3 digital interconnect, 4 analog interconnect, Power and ground planes, Power supply decoupling, Digital interconnect, Analog interconnect | Cirrus Logic CS4955 User Manual | Page 53 / 60
