2 output bstout sense & input iac sense, 3 boost auxiliary winding, 4 boost overvoltage protection – Cirrus Logic CS1631 User Manual

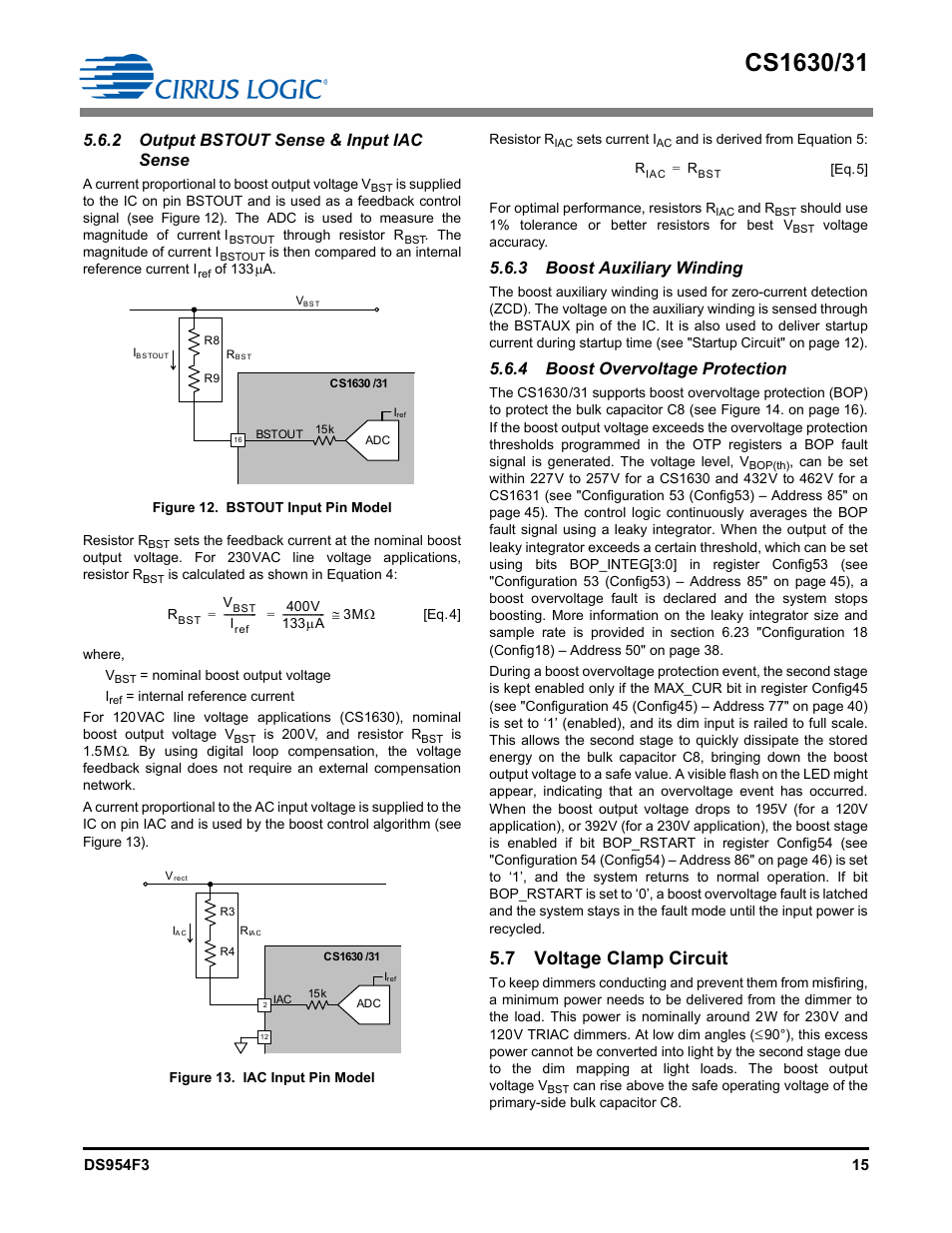

Page 15: Voltage clamp circuit, 7 voltage clamp circuit
