3. Installation / 4. Differential pressure gauge
6
11592011.04 06/2014 GB/D/F/I
GB
WIKA operating instructions differential pressure gauge models 712.15.100, 732.15.100
11563843.01

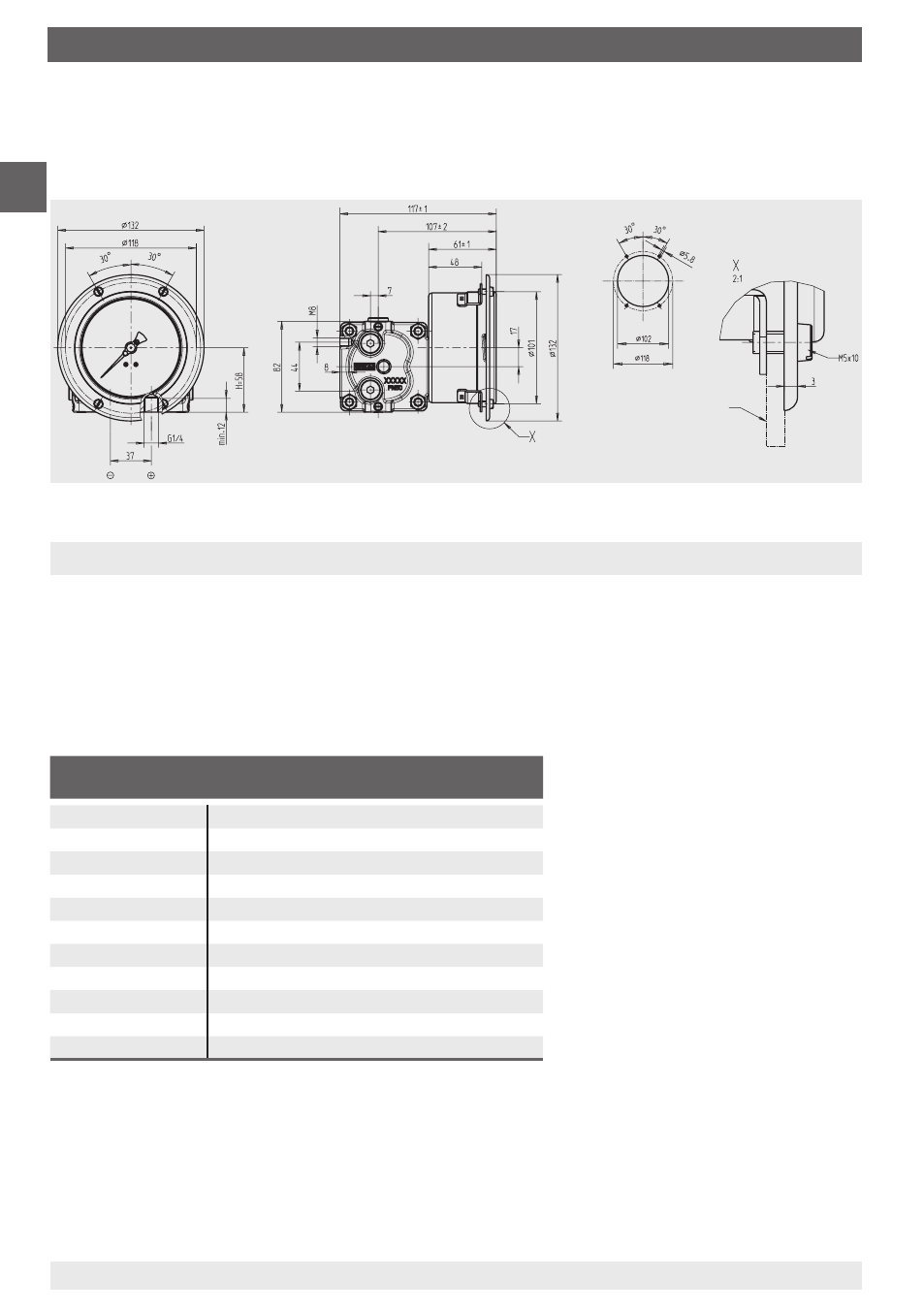

Panel cut-out
Panel
Measuring cell Adjustable measuring ranges
from to
60 mbar 0 ... 40 mbar - 0 ... 60 mbar
90 mbar 0 ... 60 mbar - 0 ... 90 mbar
120 mbar 0 ... 80 mbar - 0 ... 120 mbar
165 mbar 0 ... 110 mbar - 0 ... 165 mbar
240 mbar 0 ... 160 mbar - 0 ... 240 mbar
330 mbar 0 ... 220 mbar - 0 ... 330 mbar
480 mbar 0 ... 320 mbar - 0 ... 480 mbar
660 mbar 0 ... 440 mbar - 0 ... 660 mbar
975 mbar 0 ... 650 mbar - 0 ... 975 mbar
1,350 mbar 0 ... 900 mbar - 0 ... 1,350 mbar
1,725 mbar 0 ... 1,150 mbar - 0 ... 1,725 mbar
4. Differential pressure gauge
The measuring range of the differential pressure gauge can, depending on the particular
measurement system used, be adjusted within the limits given in the previous specifications
table). Ideally, this adjustment should be made on a test bench, though it can also be carried
out at the measuring point using a hand test pump.
Measuring range limits
Option
Panel mounting
