KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the Wall Plates (U.S. Versions)

6

4.3 SV-302 (U.S.)

The SV-302 is a single-gang wall plate insert and has an RJ-45 connector at the

rear.

Table 3

defines the front and rear views of the SV-302.

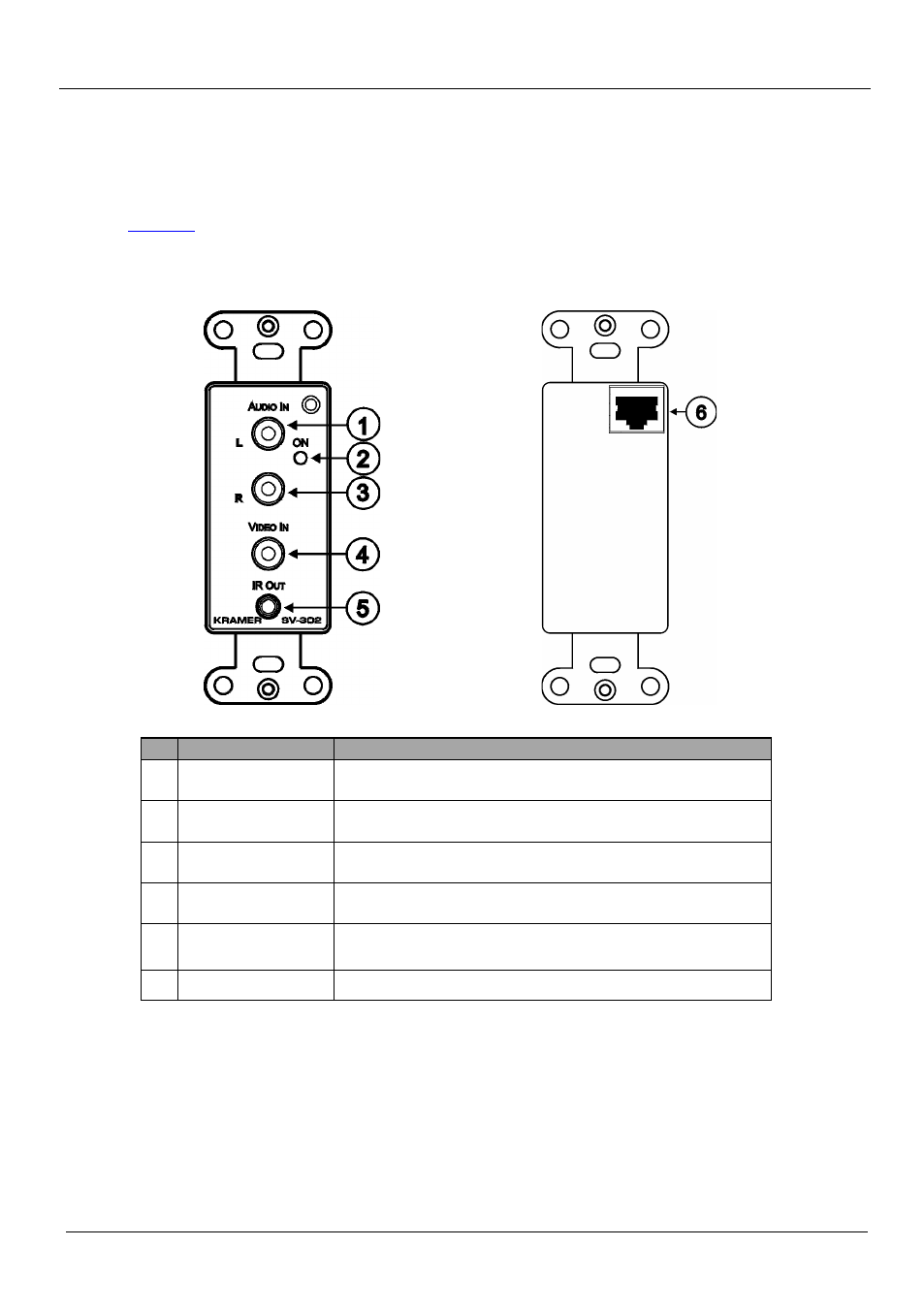

Table 3: SV-302 (U.S.) Front and Rear View

SV-302 Front View

SV-302 Rear View

#

Feature

Function

1

L AUDIO IN RCA

Connector

Connect to the left analog audio source

2

ON LED

Lights red when receiving power (when no signal is detected);

lights green when receiving a signal

3

R AUDIO IN RCA

Connector

Connect to the right analog audio source

4

VIDEO IN RCA

Connector

Connect to the composite video source

5

IR OUT 3.5mm Mini

Connector

Connect to a machine via an IR Emitter

6

RJ-45 Connector

Connect to the SV-551/SV-552 Processor/Controller
