Defining the Wall Plates (U.K. and Europe)
17
5.6 SV-305 (U.K. and Europe)
The SV-305 is a dual-gang wall plate and has two terminal blocks at the rear.

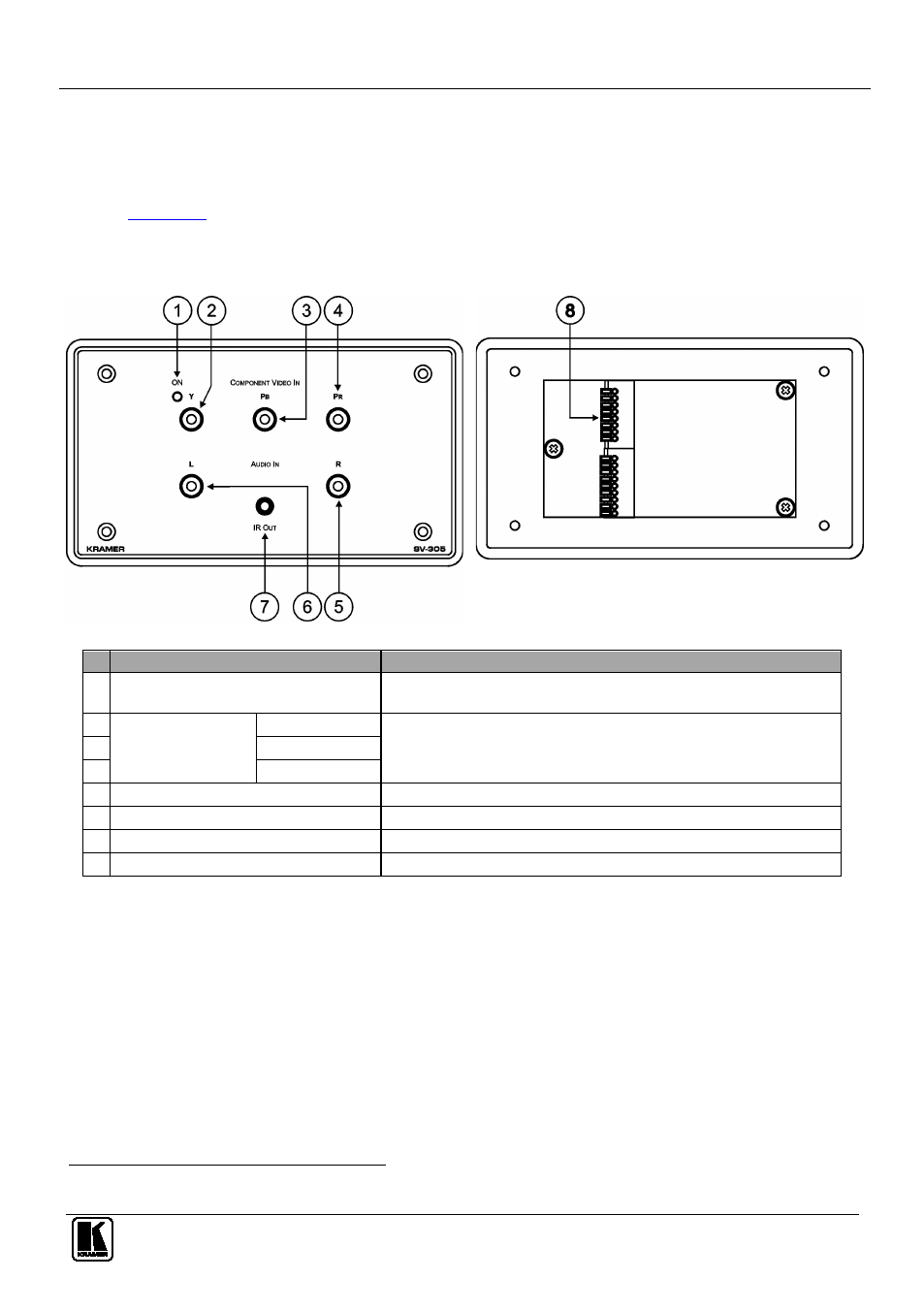

defines the front and rear views of the SV-305.
Table 14: SV-305 (U.K.and Europe)
SV-305 Front View
SV-305 Rear View
#
Feature
Function
1 ON LED
Lights red when receiving power (when no signal is detected); lights
green when receiving a signal
2 COMPONENT
VIDEO IN RCA
Connectors
Y
Connect to the component video source
3
PB
4
PR
5 R AUDIO IN RCA Connector
Connect to the right analog audio source
6 L AUDIO IN RCA Connector
Connect to the left analog audio source
7 IR OUT 3.5mm Mini Connector
Connect to a machine via an IR Emitter
8 2 Terminal Blocks
Connect to SV-551 Processor/Controller
1 When mounting in Belgium and Germany, use the standard WP Adapter
