Defining the Wall Plates (U.S. Versions)
4
4.1 SV-301 (U.S.)
The SV-301 is a single-gang wall plate insert and has two RJ-45 connectors at the
rear.
defines the front and rear views of the SV-301.

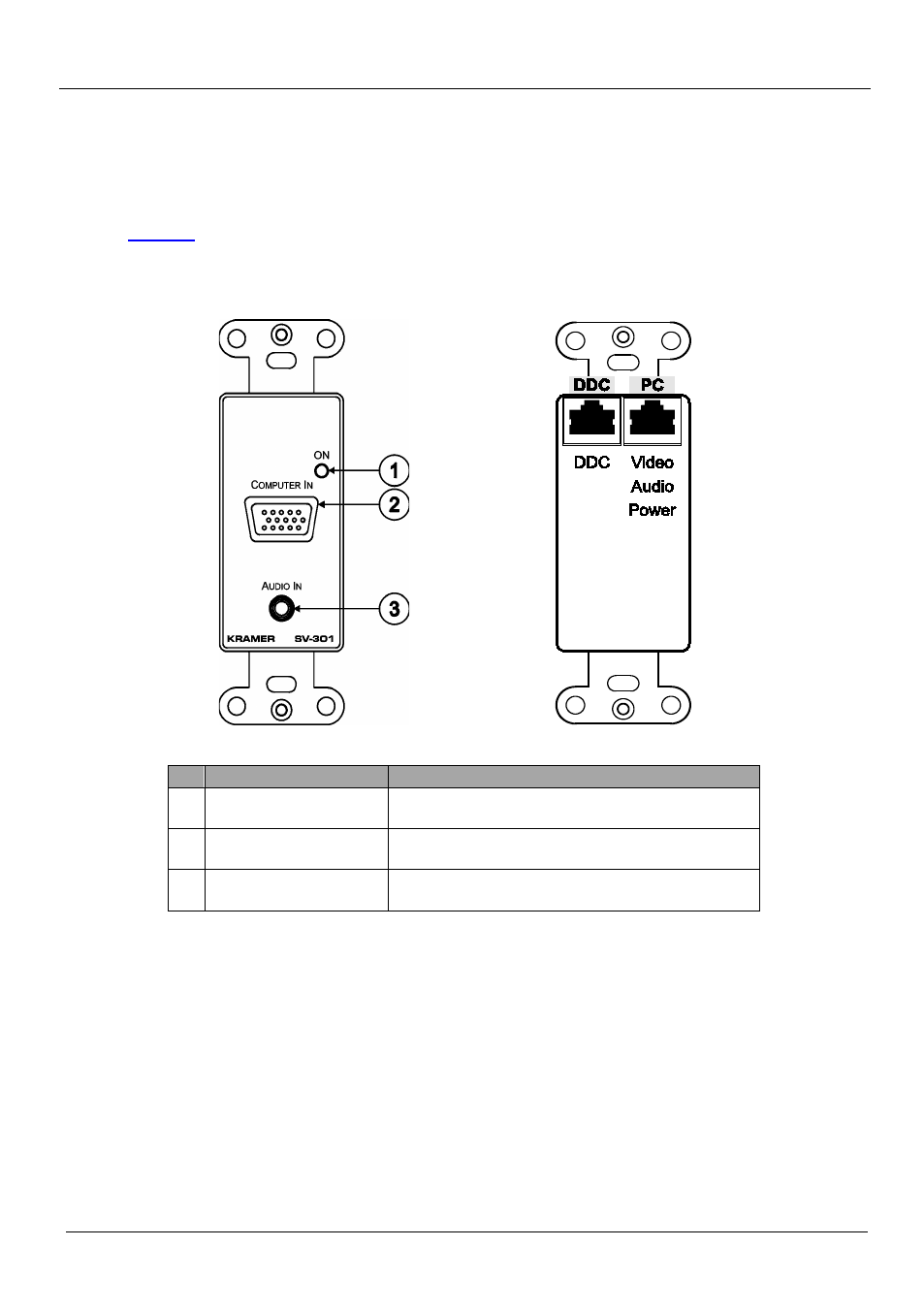

Table 1: SV-301 (U.S.) Front and Rear View
SV-301 Front View
SV-301 Rear View
#
Feature
Function
1
ON LED
Lights red when receiving power (when no signal is
detected); lights green when receiving a signal
2
COMPUTER IN 15-pin HD
Connector
Connect to the computer graphics source
3
AUDIO IN 3.5mm Mini
Connector
Connect to the audio source
