Defining the Wall Plates (U.S. Versions)
11
4.8 SV-307 (U.S.)
The SV307 is a triple-gang wall plate and has an RJ-45 connector and a power
connector at the rear.
Note: The SV-307 uses special twisted pair cable (see
).
defines the front and rear views of the SV-307.

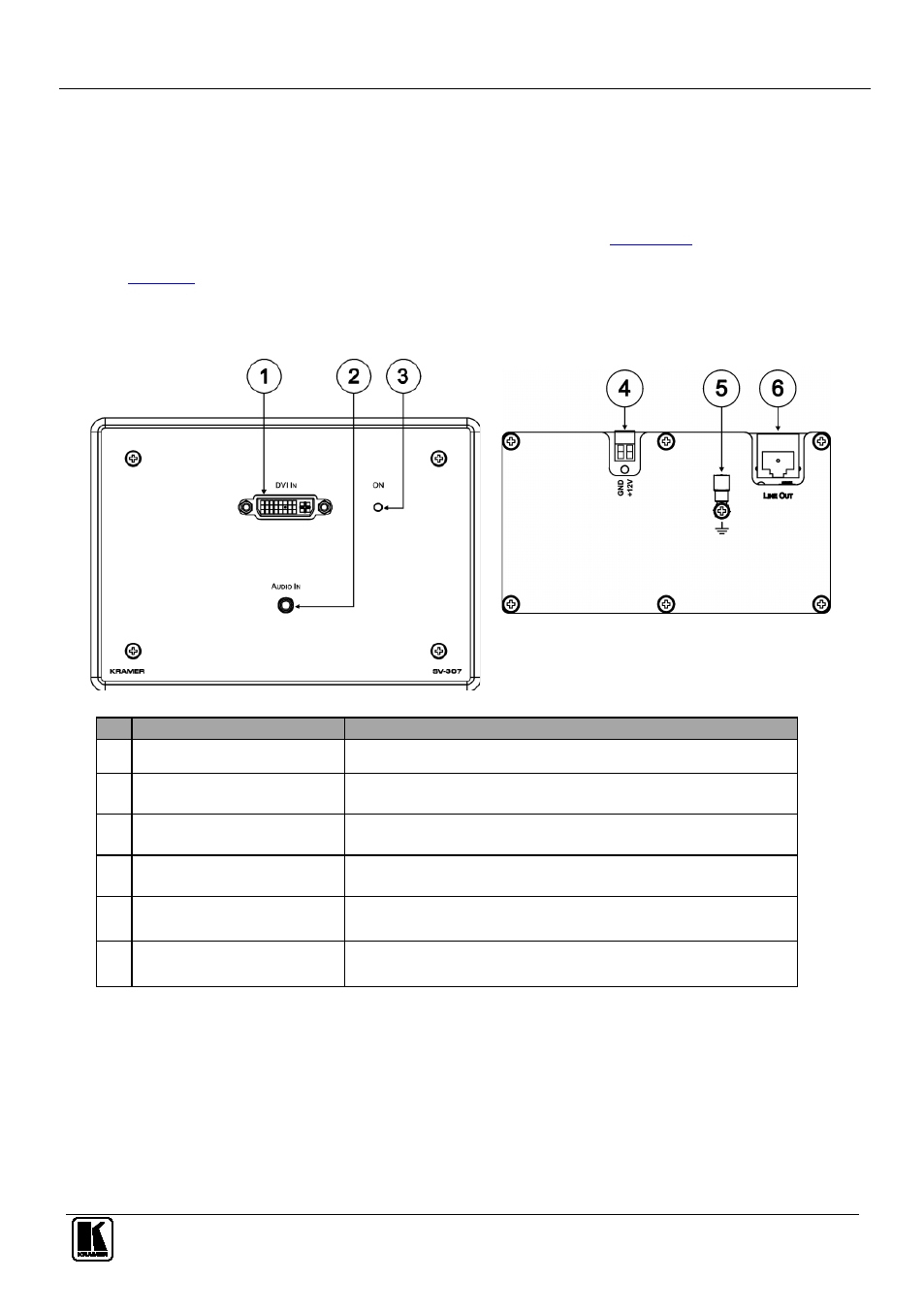

Table 8: SV-307 (U.S.) Front and Rear View
SV-307 Front View
SV-307 Rear View
#
Feature
Function
1
DVI IN Connector
Connect to the DVI source
2
AUDIO IN 3.5mm Mini
Connector
Connect to the audio source
3
ON LED
Lights red when receiving power (when no signal is detected); lights
green when receiving a signal
4
GND +12V 2-pin Power
Terminal Block
Connect to an optional 12V power supply
5
GROUND Connection
Ring tongue terminal and grounding screw
6
LINE OUT RJ-45 Connector Connect to the SV-552 Processor/Controller. Note that the SV-307
requires BC-DGKat524 or BC-DGKat-623 cable for connection
