Defining the Wall Plates (U.S. Versions)
9
4.6 SV-305 (U.S.)
The SV-305 is a single-gang wall plate insert and has two RJ-45 connectors at the
rear.
defines the front and rear views of the SV-305.

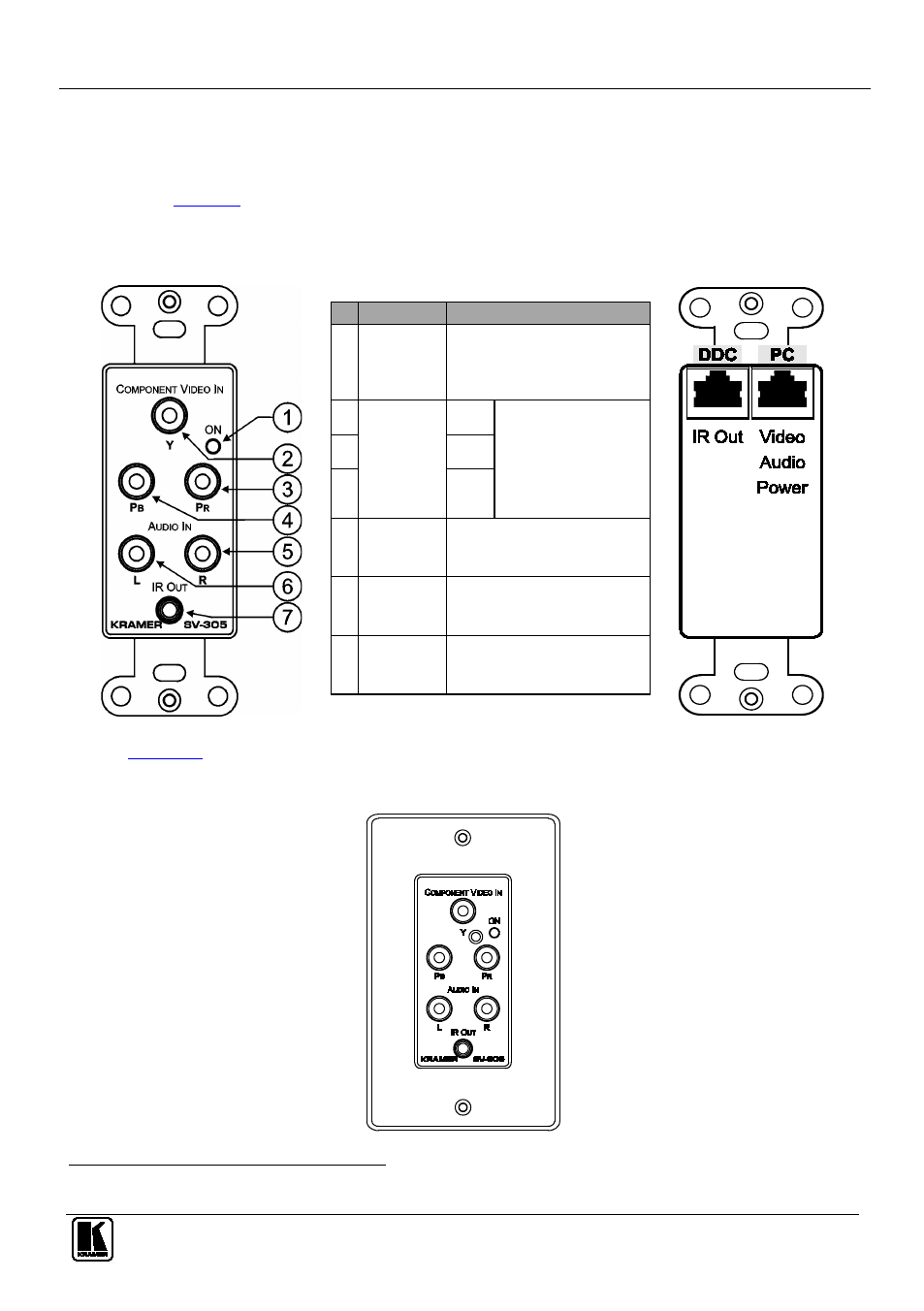

Table 6: SV-305 (U.S.) Front and Rear View
SV-305 Front View
SV-305 Rear View
#
Feature
Function
1 ON LED
Lights red when receiving
power (when no signal is
detected); lights green when
receiving a signal
2
CO
M
P
O
NE
NT
V
ID
E
O IN
R
CA
C
onn
ec
tor
s
Y
Connect to the
component video
source
3
PR
4
PB
5 R AUDIO
IN RCA
Connector
Connect to the right analog
audio source
6 L AUDIO IN
RCA
Connector
Connect to the left analog
audio source
7 IR OUT
3.5mm Mini
Connector
Connect to a machine via an
IR Emitter
defines the SV-305, as an example, in its plastic frame:
Figure 2: Wall Plate (U.S.) Enclosed in its Plastic Frame
4F
1
1 Each model that is designed specifically for the US market can be mounted inside a plastic frame
