KRAMER: SIMPLE CREATIVE TECHNOLOGY
Defining the Wall Plates (U.S. Versions)
10
4.7 SV-306 (U.S.)
The SV-306 is a single-gang wall plate insert and has an RJ-45 connector at the
rear.
The SV-306 provides EDID PassThru and HDCP support (passes EDID signals
from source to display).
In order to operate the IR when no HDMI signal is present, the HDMI cable must
be connected between the source and the SV-306.
Note: The SV-306 uses special twisted pair cable (see
).
defines the front and rear views of the SV-306.

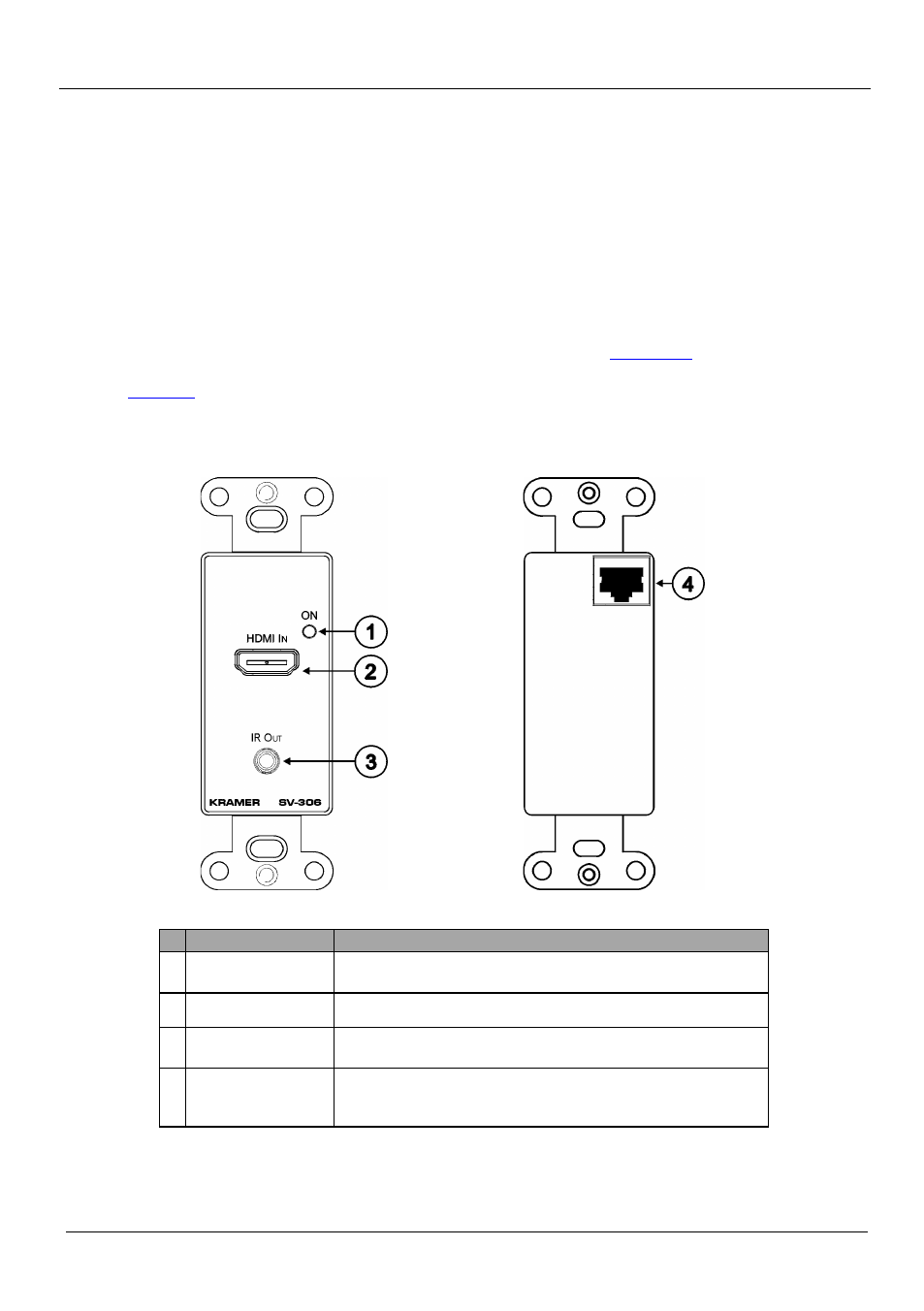

Table 7: SV-306 (U.S.) Front and Rear View
SV-306 Front View
SV-306 Rear View
#
Feature
Function
1 ON LED
Lights red when receiving power (when no signal is detected);
lights green when receiving a signal
2 HDMI IN Connector Connect to the HDMI digital source
3 IR OUT 3.5mm Mini
Connector
Connect to a machine via an IR Emitter
4 RJ-45 Connector
Connect to the SV-552 Processor/Controller. Note that the
SV-306 requires BC-DGKat524 or BC-DGKat-623 cable for
connection
