Defining the Wall Plates (U.S. Versions)
7
4.4 SV-303 (U.S.)
The SV-303 is a single-gang wall plate insert and has an RJ-45 connector at the
rear.
defines the front and rear views of the SV-303.

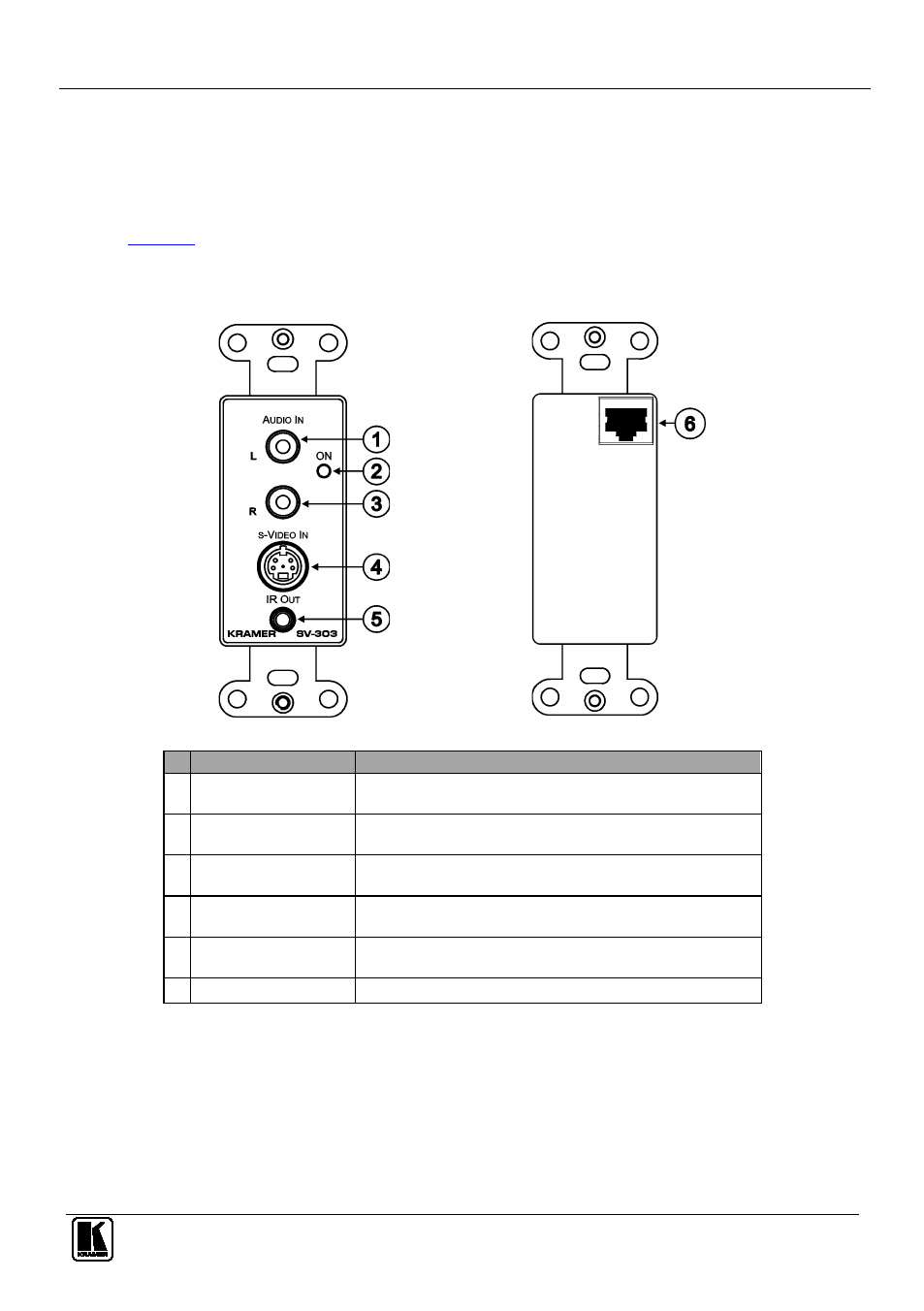

Table 4: SV-303 (U.S.) Front and Rear View
SV-303 Front View
SV-303 Rear View
#
Feature
Function
1 L AUDIO IN RCA
Connector
Connect to the left analog audio source
2 ON LED
Lights red when receiving power (when no signal is detected);
lights green when receiving a signal
3 R AUDIO IN RCA
Connector
Connect to the right analog audio source
4 s-VIDEO IN 4-pin
Connector
Connect to the s-Video source
5 IR OUT 3.5mm Mini
Connector
Connect to a machine via an IR Emitter
6 RJ-45 Connector
Connect to the SV-551 Processor/Controller
