Defining the Wall Plates (U.K. and Europe)
14
5.3 SV-302 (U.K. and Europe)
The SV-302 is a single-gang wall plate and has a terminal block at the rear.

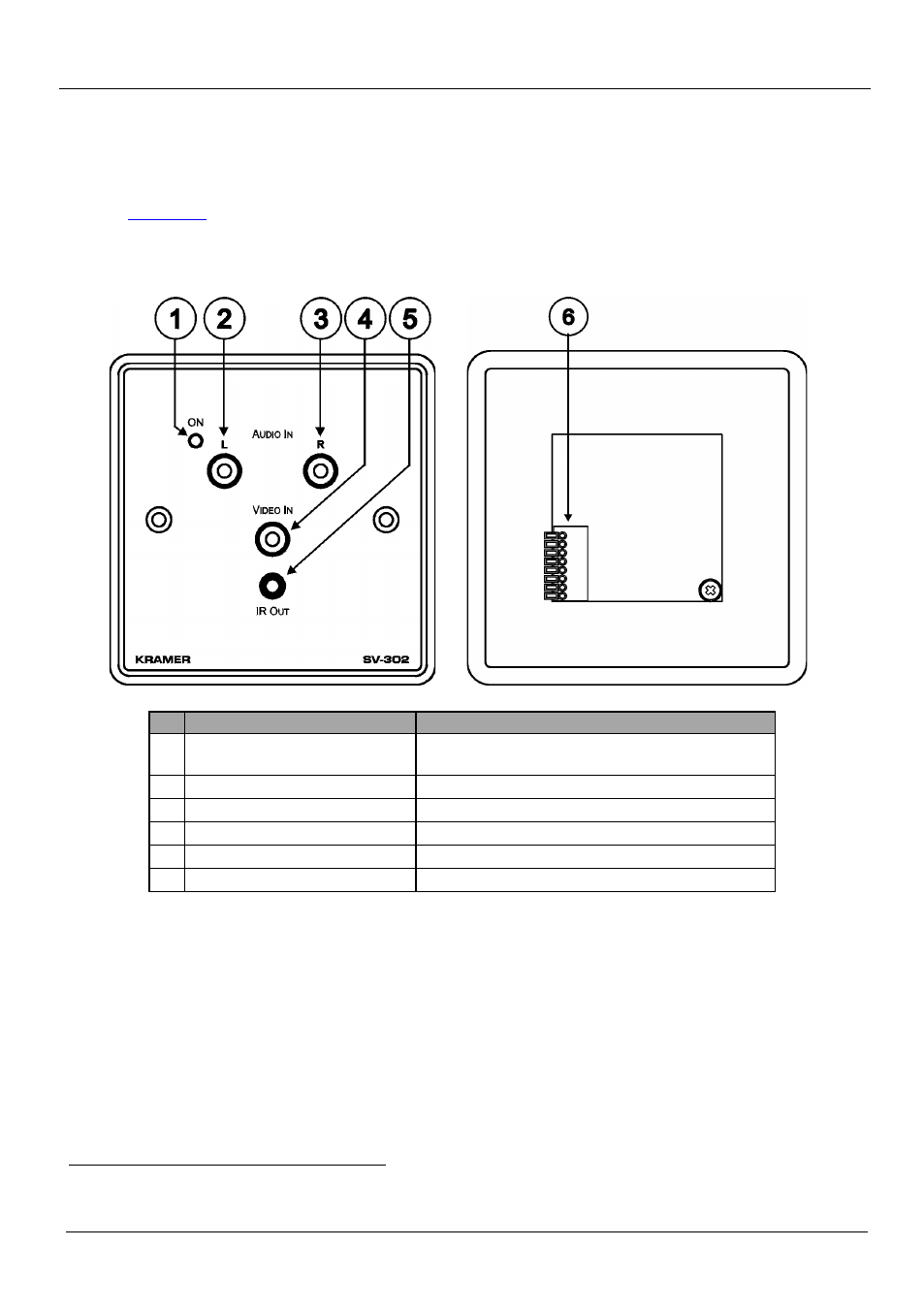

defines the front and rear views of the SV-302.
Table 11: SV-302 (U.K. and Europe)
SV-302 Front View
SV-302 Rear View
#
Feature
Function
1
ON LED
Lights red when receiving power (when no signal is
detected); lights green when receiving a signal
2
L AUDIO IN RCA Connector
Connect to the left analog audio source
3
R AUDIO IN RCA Connector
Connect to the right analog audio source
4
VIDEO IN RCA Connector
Connect to the composite video source
5
IR OUT 3.5mm Mini Connector
Connect to a machine via an IR Emitter
6
Terminal Block
Connect to SV-551/SV-552 Processor/Controller
1 When mounting in Belgium and Germany, use the standard WP Adapter
