Defining the Wall Plates (U.S. Versions)
8
4.5 SV-304 (U.S.)
The SV-304 is a single-gang wall plate insert and has two RJ-45 connectors at the
rear.
defines the front and rear views of the SV-304.

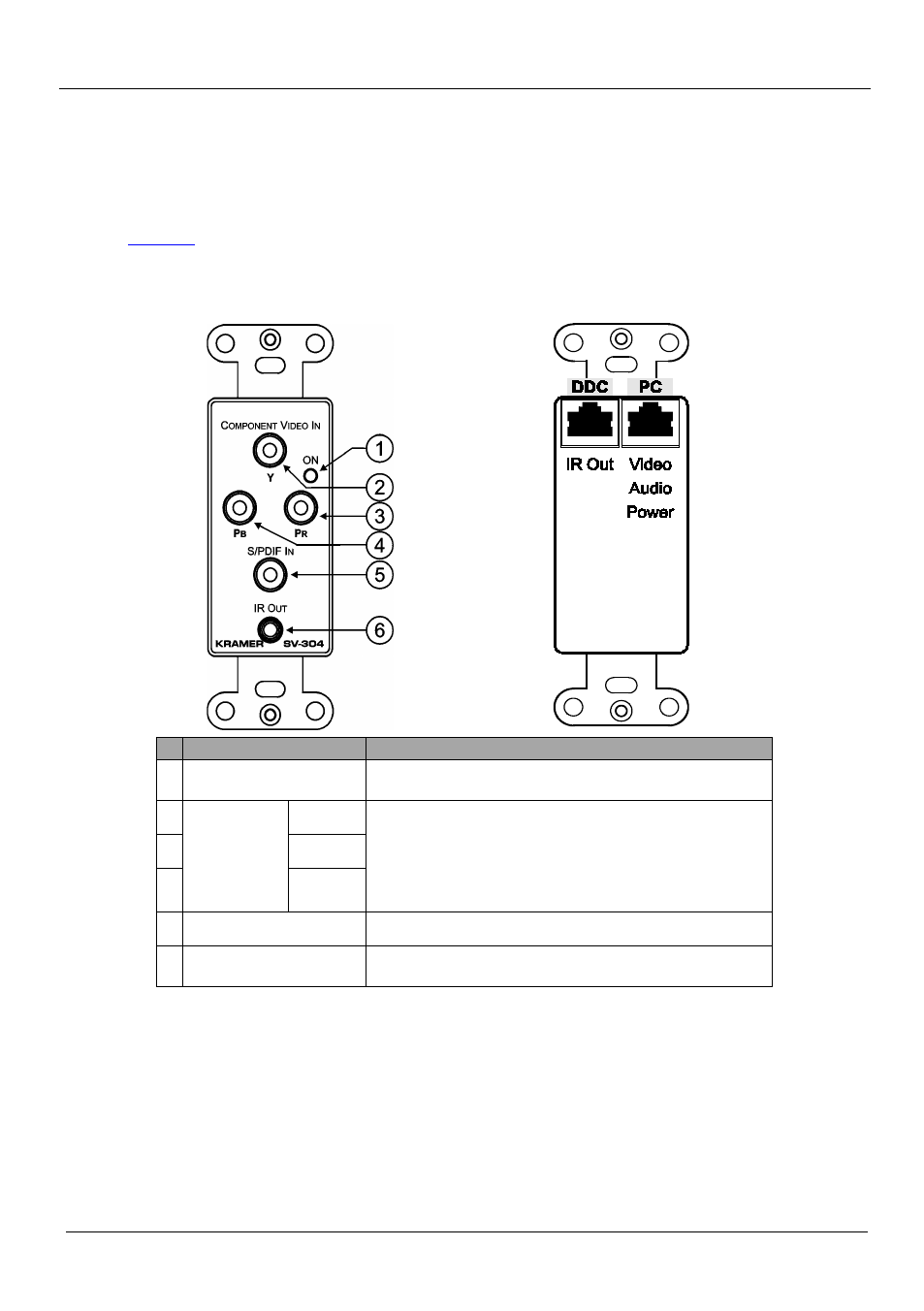

Table 5: SV-304 (U.S.) Front and Rear View
SV-304 Front View
SV-304 Rear View
#
Feature
Function
1 ON LED
Lights red when receiving power (when no signal is detected);
lights green when receiving a signal
2
C
O
M
PO
N
EN
T
VI
D
EO
IN
R
CA
C
on
nec
tor
s
Y
Connect to the component video source
3
PR
4
PB
5 S/PDIF IN RCA Connector Connect to the digital audio source
6 IR OUT 3.5mm Mini
Connector
Connect to a machine via an IR Emitter
