Defining the Wall Plates (U.K. and Europe)
15
5.4 SV-303 (U.K. and Europe)
The SV-303 is a single-gang wall plate and has a terminal block at the rear.

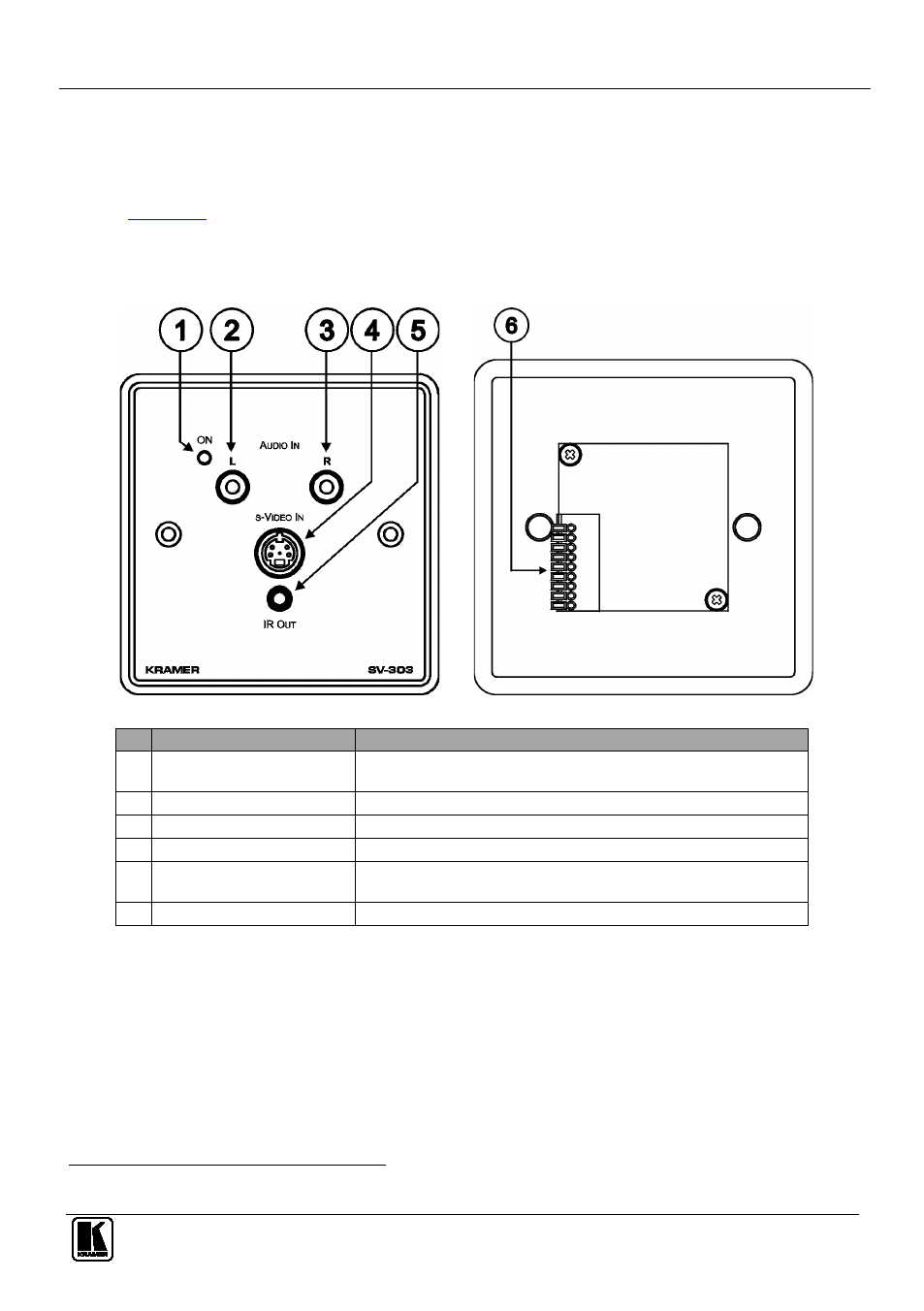

defines the front and rear views of the SV-303.
Table 12: SV-303 (U.K. and Europe)
SV-303 Front View
SV-303 Rear View
#
Feature
Function
1
ON LED
Lights red when receiving power (when no signal is detected); lights
green when receiving a signal
2
L AUDIO IN RCA Connector Connect to the left analog audio source
3
R AUDIO IN RCA Connector Connect to the right analog audio source
4
s-VIDEO IN 4-pin Connector Connect to the s-Video source
5
IR OUT 3.5mm Mini
Connector
Connect to a machine via an IR Emitter
6
Terminal Block
Connect to SV-551 Processor/Controller
1 When mounting in Belgium and Germany, use the standard WP Adapter
