Wiring the Rear Wall Plate Connectors
20
6.1 Wiring the TP Line In/Line Out RJ-45 Connector
This section defines the TP pinout using a straight pin-to-pin cable with RJ-45
connectors.
EIA /TIA 568B

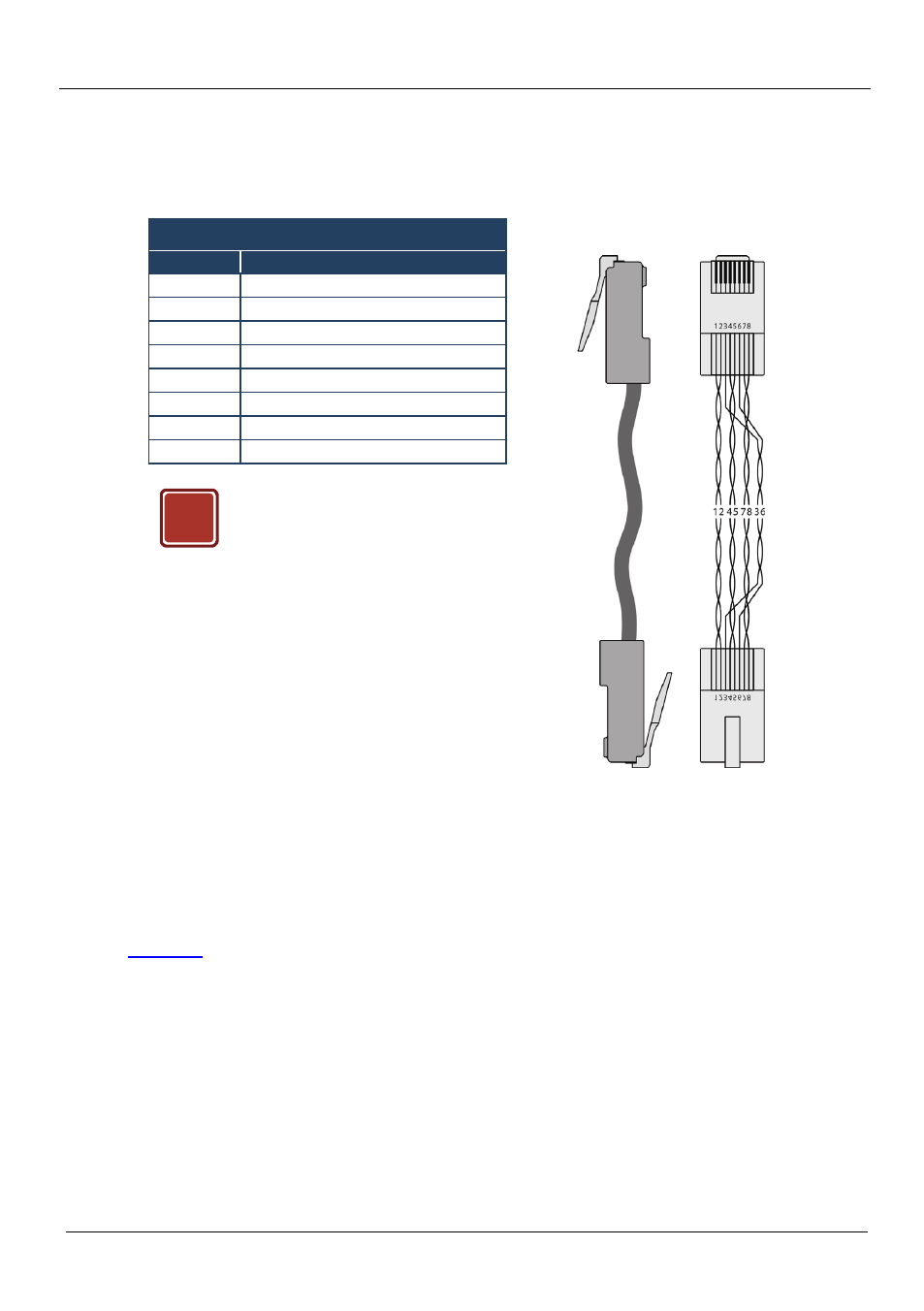

Figure 3: TP Pinout Wiring
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
Warning:
Using a TP cable that is
incorrectly wired will cause
permanent damage to the device
6.2 Wiring the U.K. and European Terminal Blocks
The European wall plates are equipped with an easy plug-in terminal block to
attach the CAT 5 cables. Follow the colors of the color-coded sticker on these
terminals for proper connection of the CAT 5 cable.
Figure 3 defines the pinouts for the terminal block.
!
