VP-460 - The OSD Menu

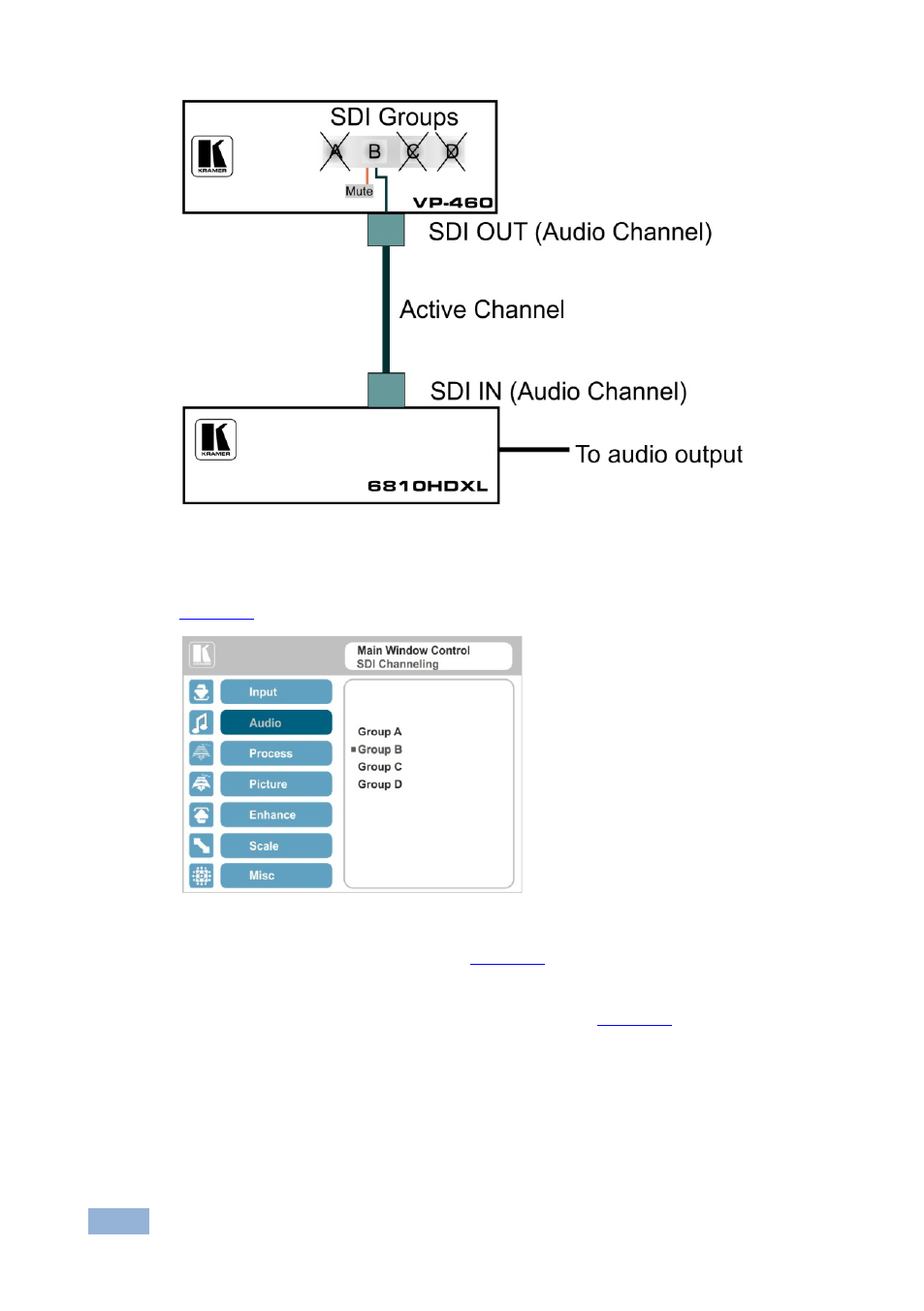

Figure 14: SDI Channeling Example
The active channel is selected via the OSD menu.
shows the SDI Channeling menu:
Figure 15: The SDI Channeling Menu
In the OSD setup that is illustrated in
, CH 2 in group B (active) is routed
via the
VP-460 SDI output to the input of 6810HDXL; CH1 in group B is muted;
groups A, C and D are disconnected (see example in
