Kramer Electronics VP-460 - Manual (Page 16)

VP-460 - The OSD Menu 11
11

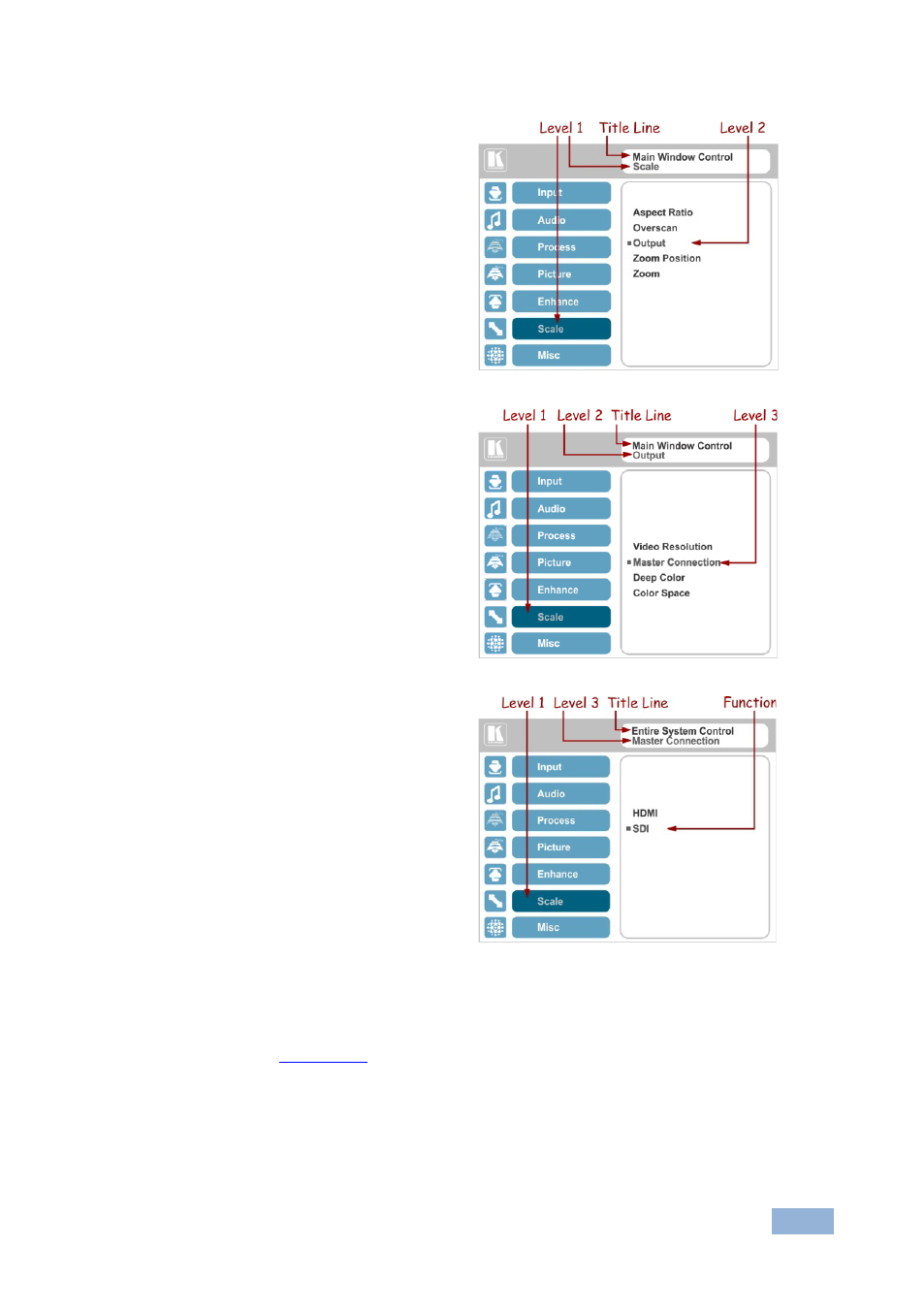

The subtitle, below the title line shows
the current level accessed (Scale in this
example)
After selecting Output (which is the
second Level), it appears in the subtitle
Once Master Connection is selected, the
Title changes to “Entire System Control”
indicating that the selection will affect the
entire system. The subtitle shows the
current, Level 3, selection and the menu
list shows the function (SDI)
If the display layout includes a PiP window, you can set the OSD menu to control
the main source window and the PIP window separately (by defining Window
Control, see
Section 5.8
General characteristics which apply to the entire system (for example, setting the
volume) are changed without needing to shift control (the title line will state: Entire
System Control).
).
