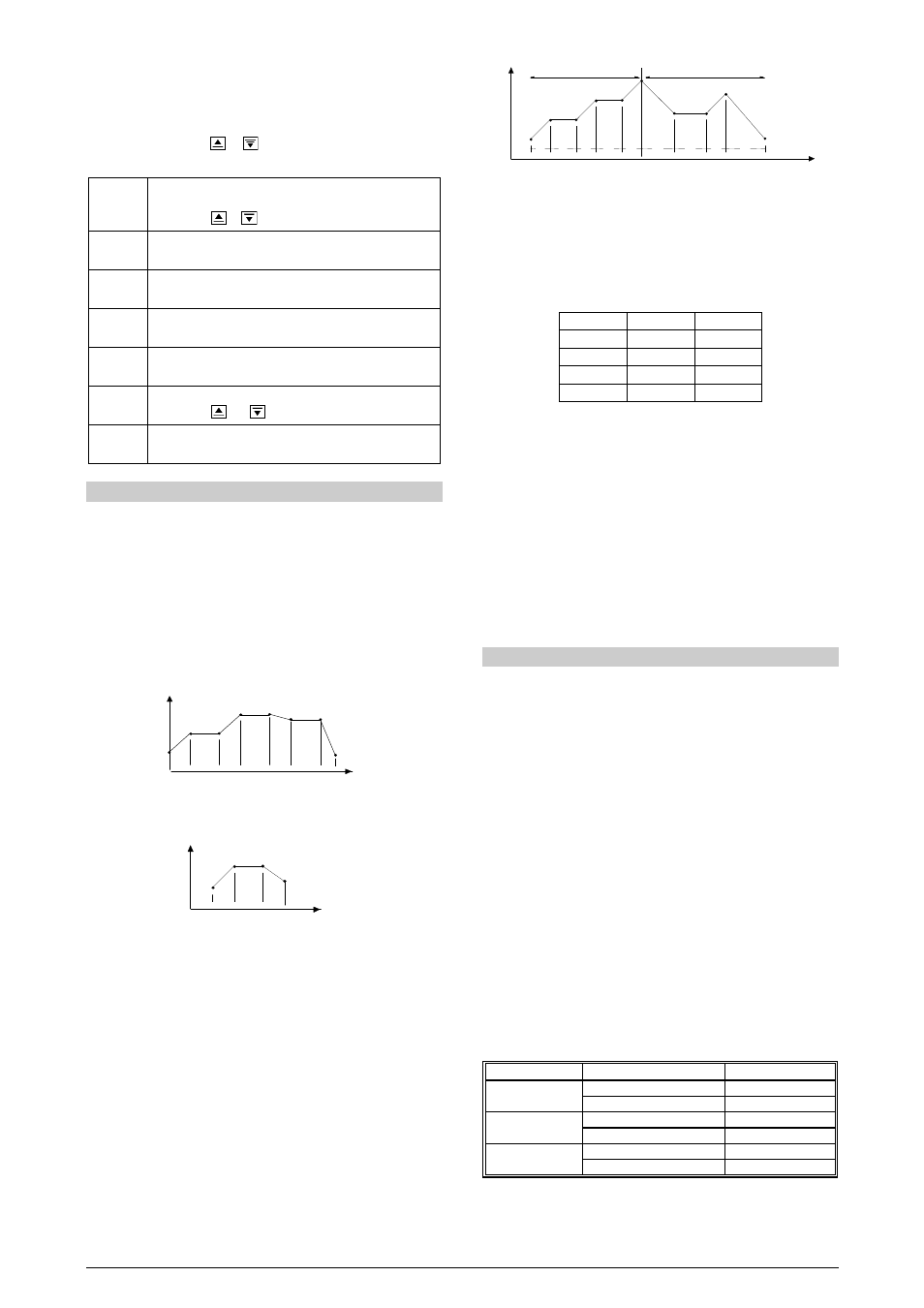

CALLIBRATION CYCLE

All input and output types are factory calibrated. Recalibration is
not recommended. If necessary, recalibration must be
performed by specialized personnel. If this cycle is accessed by
mistake, do not press

keys, go all through the prompts

up to the operation cycle is reached again.

Inl(

(input Low Calibration) – INPUT OFFSET CALIBRATION:
Makes possible to calibrate the PV offset. To change one
digit, press

as many times as necessary.

Inx(

(input High Calibration) – INPUT SPAN CALIBRATION
(gain): Makes possible to calibrate the PV offset.

Ovll

(output Low Calibration) – OUTPUT LOW CALIBRATION:
Value for current output low calibration (offset).

Ovx(

(output High Calibration) – OUTPUT HIGH CALIBRATION:
Value for current output high calibration.

(j l

COLD JUNCTION OFFSET CALIBRATION: Sets the cold
junction offset calibration.

Potl

POTENTIOMETER LOW CALIBRATION. To change one
digit, press

and

as many times as necessary.

Potx

POTENTIOMETER HIGH CALIBRATION – End of scale
calibration of the potentiometer.

RAMP AND SOAK PROGRAM

This feature allows for the elaboration of a behavior profile for the
process. Each program is composed of a set of up to 7 segments,
named RAMP AND SOAK PROGRAM, defined by SP values and
time intervals.

When the program is defined and runs, the controller starts to
automatically generate the SP according to the program.

At the end of the program execution, the controller turns the control
output off (“rvn

rvn

rvn”= no).

Up to 7 different programs of ramp and soak can be created. The
figure below shows an example of the program:

tim e

T 1

T 2

T 4

T 5

SP0

SP1

SP2

SP3

SP4

SP5

SP6

SP7

T 6

Figure 8 – Example of the ramp and soak program.

To execute a profile with fewer segments, set 0 (zero) for the time
intervals that follow the last segment to be executed.

time

SP0

SP1

SP2

SP3

T4=0

Figure 9 – Example of a program with a few segments

The tolerance function of the “PtoL

PtoL

PtoL” defines the maximum deviation

between PV and SP during the program execution. If this deviation is
exceeded, the program will be interrupted until the deviation falls
within the tolerance range (regardless of time). Programming 0 (zero)
at this prompt disables the tolerance; the profile execution will not be
halted even if PV does not follow SP (only considers time).

LINK OF PROGRAMS

It is possible to create a more complex program, with up to 49
segments, joining the seven programs. This way, at the end of a
program execution the controller immediately starts to run another
one.

When a program is created, it must be defined in the “LP

LP" screen

whether there will be or not another program.

To make the controller run a given program or many programs
continuously, it is only necessary to link a program to itself or the last
program to the first.

time

SP0

SP1

SP2

SP3

SP4

SP5 / SP0

SP1 SP2

SP3

SP4

Prog 1

Prog 2

Figure 10 – Example program 1 and 2 linked (interconnected).

EVENT ALARM

This function makes possible to program the activation of alarms in
specific segments of a program.

For such, alarms must have their function set as “rS

rS “ and be

programmed in “ PE1

PE1

PE1“ to “ PE7

PE7

PE7“ according to Table 6. The number

programmed in the event prompt defines the alarms to be activated.

CODE

ALARM 1

ALARM 2

Table 6 – Event values for ramps and soaks

In order to configure a ramp and soak program:

•

Tolerance values, SPs, time and event should be programmed.

•

If an alarm will be used with the event function, set up its function

to Event Alarm.

•

Set control mode to automatic.

•

Enable program execution in “ rS

rS “ screen.

•

Start the control at the “rvn

rvn

rvn” prompt.

Before executing the program the controller waits for PV to reach the
initial setpoint (“SP0

SP0

SP0”). Should any power failure occur the controller

resumes at the beginning of the segment it was running.

AUTO TUNING OF PID PARAMETERS

During auto tune the process is controlled in ON / OFF mode at the
programmed SP. Depending on the process features, large
oscillations above and below SP may occur. Auto tune may take
several minutes to be concluded in some processes.

The recommended procedure is as it follows:

•

Disable the control output at the “rvn

rvn

rvn” prompt..

•

Select auto mode operation at the “Avto

Avto

Avto” prompt.

•

Select a value different form zero for the proportional band.

•

Disable the soft-start function

•

Disable the ramp and soak function and program a new PV value

other than the present PV (close to the desired set point).

•

Enable auto tuning at the “Atvn

Atvn

Atvn” prompt.

•

Enable the control at the “rvn” screen.

During the auto tune procedure the TUNE indication will remain on.

For the control output with relays or current pulse, automatic tune
calculates the highest possible value for the PWM period. This value
can be reduced in cases of low instability. For a relay of solid state,
reduction to 1 second is recommended.

If the automatic tune does not result a satisfactory control, refer to
Table 7 for manual fine tuning procedure.

PARAMETER

PROBLEM

SOLUTION

Proportional band

Slow response

Decrease

Large oscillation

Increase

Integral rate

Slow response

Increase

Large oscillation

Decrease

Derivative time

Slow response or instability

Decrease

Large oscillation

Increase

Table 7 – Suggestions for manual tuning of PID parameters
