ACP1LED and Installation and
ACP2LED Flood Maintenance
Manual
IM-366
GR2275
1
INTRODUCTION
1.1 Product Description
The ACP1 and ACP2 LED Flood luminaires have been listed to
applicable U.S. & Canadian safety standards by Underwriters
Laboratories Inc. They are suitable for use in wet locations and
ambient temperatures up to 40°C.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
•
The LED driver/door assembly can be detached for repair by
disengaging the hinge and unplugging electrical connectors. See
Figure 4.
2 INSTALLATION
2.1 Tools and Materials Required
DESCRIPTION USE
9/16” Hex Wrench Knuckle fitter bolt and set screws
3/4” Hex Wrench 1/2-18UNC Yoke bolt
5/8” Hex Wrench 3/8-16UNC Yoke bolt
1/4” Nut Driver Knuckle Fitter Wiring Cover
3/16” Allen Wrench Closure Screws (Not needed for TL option)
Torque Wrench (ft.-lbs.) Mounting Bolts, Knuckle fitter bolt and set
screws

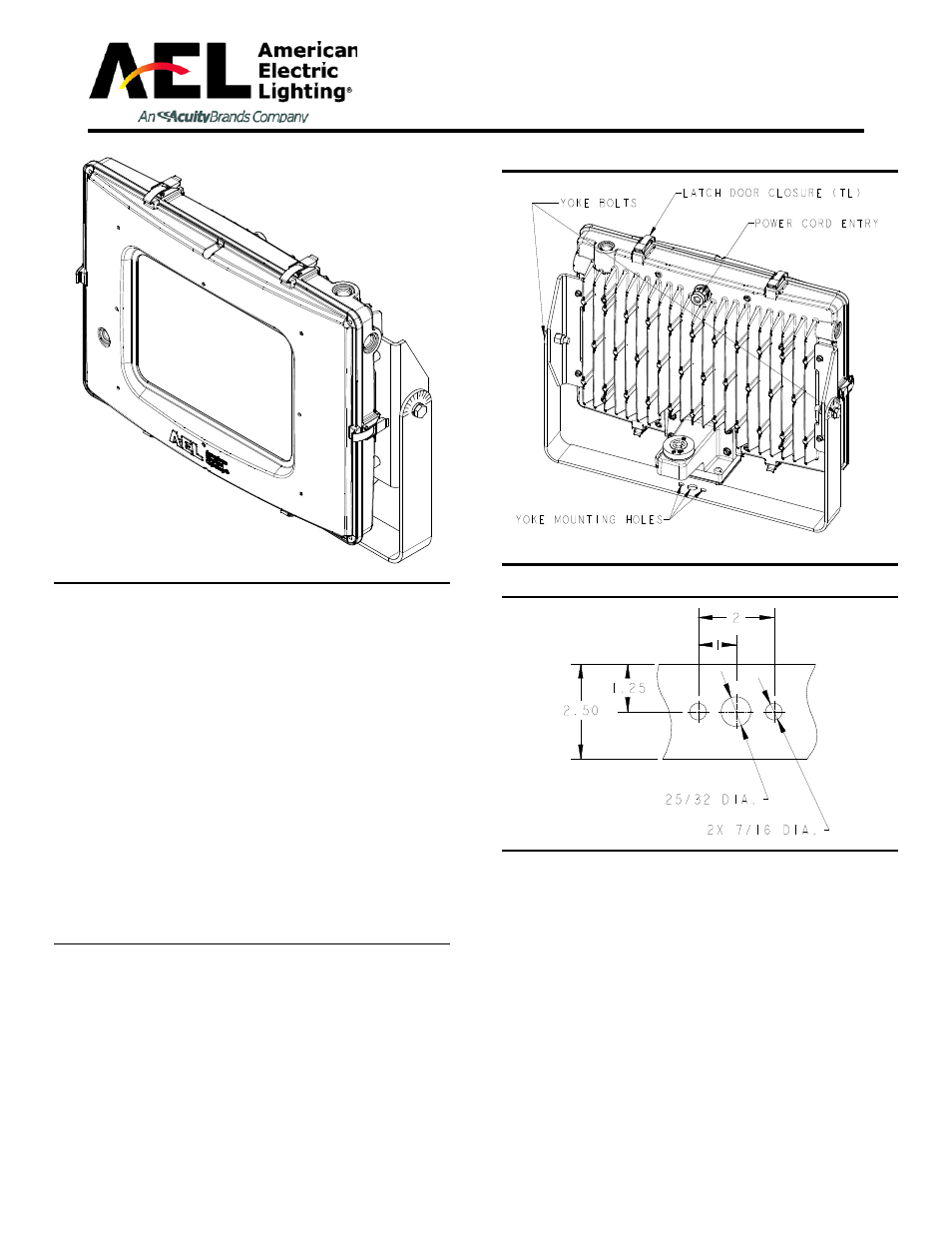

Figure 1
GR2276
Figure 2
GR2284
2.2 Yoke Mount Installation
This luminaire is pre-wired with a UL listed wet location power cord and
fittings, so it is not necessary to open the housing door to install or wire
the luminaire. If access to the interior of the housing is necessary, refer
to the MAINTENANCE section (SECTION 3) below.
2.2.1 Bolt the yoke to the mounting structure using either two 3/8"
bolts or one 1/2" grade 5 bolt. Tighten bolts securely (30-35 ft. lbs. for
3/8" bolts or 50-60 ft. lbs. for 1/2" bolt). The bolts and other hardware
are not provided. See Figure 2 for mounting hole pattern.
2.2.2 Make all wiring connections in accordance with approved
wiring methods.
2.2.3 Aim the floodlight restricting mounting to ± 90° from vertical
aim. For units with a photocontrol receptacle, the mounting must be
restricted to ± 45° from vertical aim.
2.2.4 Tighten the 1/2" diameter yoke bolts securely (approx. 50 ft.lb.
recommended). See Figure 1.
