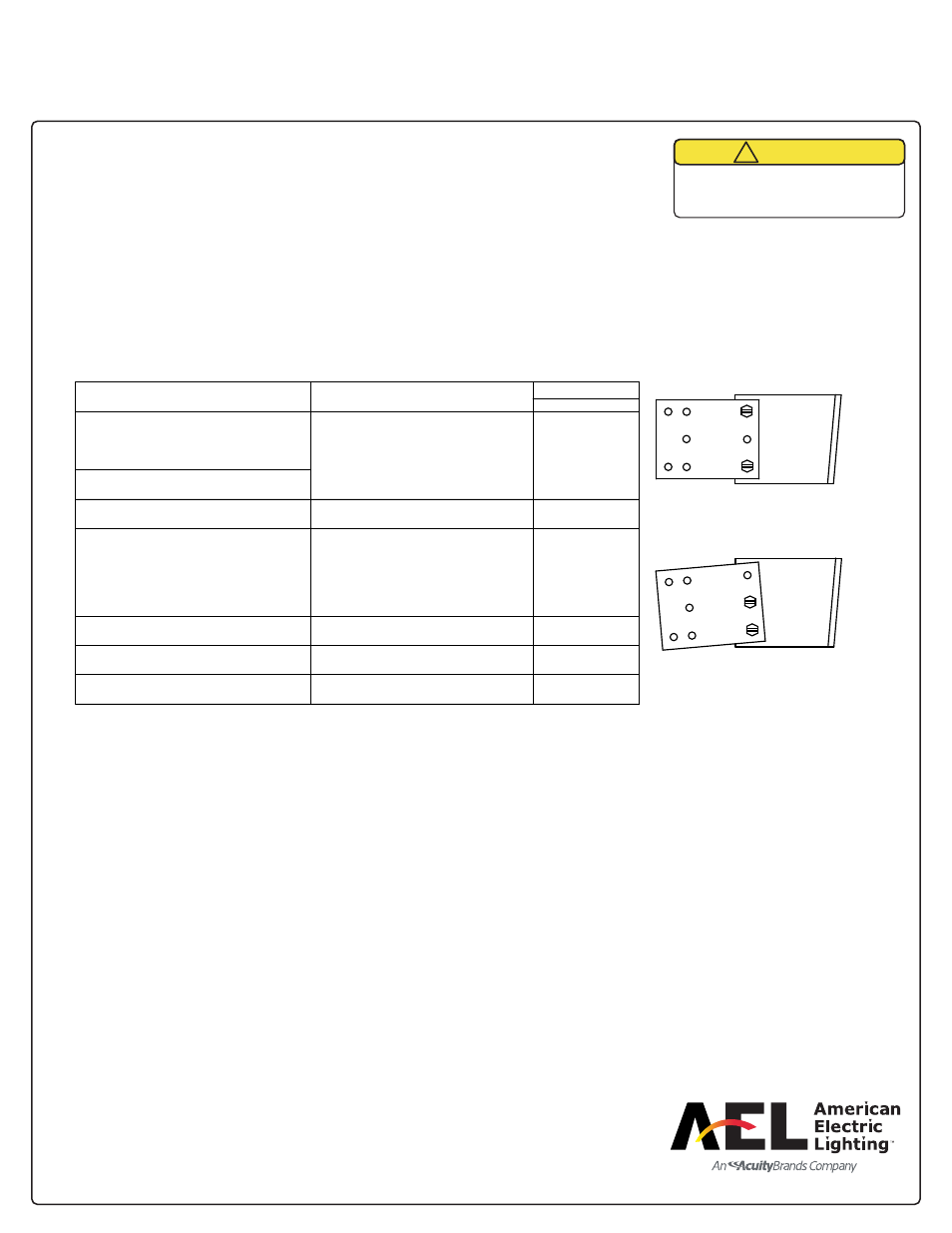

327 SERIES HORIZONTAL LUMINAIRE
INSTALLATION INSTRUCTIONS
American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA
DRAWING NO. B61342 REV L ©2003 ACUITY LIGHTING GROUP, INC. PART NUMBER 059-71-27178
CAUTION
!
* REQUIRES SOCKET SPACER
*
*
*
IV SHORT SEMI CUTOFF 3 & 3B 200-400W HPS ONLY
III MEDIUM SEMI CUTOFF 1 & 1B HIGH PRESSURE SODIUM
I.
1. UN-SNAP REAR HINGE SPRING FROM BOTH SIDES OF HINGE.
2.PULL FORWARD AND UP ON LATCH.
3. SLIDE LOWER HOUSING OFF HINGE BAR.
II. FOR 2" MAST ARM
REMOVE LOWER HOUSING
1. LOOSEN FITTER CLAMP SCREWS.
OR II. FOR 1-1/4" MAST ARM
1. REMOVE FOUR 3/8" CAP SCREWS.
2. TURN FITTER CLAMPS OVER.
3. REINSTALL FOUR 3/8" CAP SCREWS.
III. INPUT VOLTAGE
IF THE VOLTAGE AVAILABLE IS DIFFERENT FROM THAT SHOWN ON
THE TERMINAL BOARD, CONSULT THE WIRING DIAGRAM FOR DIRECTIONS.
IV. SOCKET POSITIONING-LIGHT DISTRIBUTION
SOCKET POSITION IS SET AT FACTORY FOR TYPE III MEDIUM SEMI CUTOFF UNLESS OTHERWISE SPECIFIED ON ORDER
WHEN ANOTHER DISTRIBUTION IS REQUIRED, SELECT VERTICAL AND HORIZONTAL SOCKET
SETTING FROM TABLE AND FOLLOW STEPS LISTED.
LAMP
CLEAR MERCURY
DELUXE MERCURY
DELUXE METAL HALIDE ONLY
TYPE
III MEDIUM SEMI CUTOFF
II MEDIUM SEMI CUTOFF
IV SHORT SEMI CUTOFF
SOCKET SETTING
HORIZONTAL
3 & 3B
1 & 1B
3 & 3B
3 & 3B IV SHORT SEMI CUTOFF
III MEDIUM SEMI CUTOFF
II MEDIUM SEMI CUTOFF
I MEDIUM SEMI CUTOFF
II MEDIUM SEMI CUTOFF
3 & 3B
2 & 2B
1 & 1B
3 & 3B
METAL HALIDE
200-400W HPS ONLY
1. HORIZONTAL SOCKET SETTING (POSITION "B")(SEE FIG. 1)
A. REMOVE TWO SCREWS ON EACH SIDE OF SOCKET BRACKET
B. SLIDE SOCKET BRACKET TO ALLOW SCREWS TO ENTER PROPER NOTCHES FOR NEW POSITION.
C. REPLACE AND TIGHTEN SCREWS.
2. HORIZONTAL SOCKET SETTING (POSITION "AB")(SEE FIG.2)
A. REMOVE TWO SCREWS FROM UPPER SLOT (ONE EACH SIDE).
B. POSITION SOCKET BRACKET WHERE HOLES AT "A" LINE UP WITH HOLES IN REFLECTOR BRACKET.
C. RE-ASSEMBLE AND TIGHTEN SCREWS.
V.
FIG.1
1 2 3
A
B
HORIZONTAL SOCKET SETTING
POSITION "B"
FIG.2
1 2
3
A
B
HORIZONTAL SOCKET SETTING
POSITION "AB"
SNAPS INTO POSITION.
3. SWING LOWER HOUSING UP TO UPPER HOUSING AND PRESS FIRMLY UPWARD UNTIL LATCH
2. SNAP HINGE SPRING OVER HINGE BAR AND UNDER HINGE STUD ON EACH END OF HINGE.
1. SLIDE LOWER HOUSING OVER UPPER HOUSING HINGE BAR.
INSTALLING LOWER HOUSING VI.
4. REPEAT 3 AS NECESSARY UNTIL UNIT IS LEVEL
TIGHTEN TWO FRONT CAP SCREWS.
3. LOOSEN TWO REAR CAP SCREWS AND
OR FRONT END HIGH
5. TORQUE BOLTS TO 15-20 FT.LBS.
4. REPEAT 3 AS NECESSARY UNTIL UNIT IS LEVEL
TIGHTEN TWO REAR CAP SCREWS.
3. LOOSEN TWO FRONT CAP SCREWS AND
FRONT END LOW
2. TIGHTEN ALL FOUR FITTER CAP SCREWS, TO 15-20 FT.LB. TORQUE.
1. PLACE LEVEL ON LEVEL BOSSES.
TWO WAY LEVEL BOSSES ARE PROVIDED ON TOP OF UPPER HOUSING.
LEVELING
IT IS NEVER NECCESSARY
OR ADVISABLE TO SLAM
THE HOUSING CLOSED
