INSTALLATION INSTRUCTIONS
VALIANT SERIES POST TOP LED 2ND GEN
American Electric Lighting a division of Acuity Lighting Group, Inc. Granville, OH
DRAWING NO. A72916 REV -- (FRONT) ©2013 ACUITY LIGHTING GROUP, INC. PART NUMBER 057-70-72916
OPENING & CLOSING THE UNIT: OPENING & CLOSING THE UNIT:
1. OPEN THE UNIT. (SEE “OPENING AND CLOSING THE UNIT” 1. OPEN THE UNIT. (SEE “OPENING AND CLOSING THE UNIT”
ABOVE).
ABOVE).
2. UNSCREW THE TWO SCREWS ATTACHING THE BOTTOM
2. UNSCREW THE TWO SCREWS ATTACHING THE BOTTOM
COVER. (SEE FIGURE 2).
COVER. (SEE FIGURE 2).
3. LOCATE THE WIRING DIAGRAM ATTACHED UNDER THE
3. LOCATE THE WIRING DIAGRAM ATTACHED UNDER THE
BOTTOM COVER. USE AS A GUIDE FOR CONNECT THE POWER
BOTTOM COVER. USE AS A GUIDE FOR CONNECT THE POWER
SUPPLY LEADS TO THE TERMINAL BLOCK.
SUPPLY LEADS TO THE TERMINAL BLOCK.
4. PULL UP THE TERMINAL BLOCK COVER. (SEE FIGURE 2).
4. PULL UP THE TERMINAL BLOCK COVER. (SEE FIGURE 2).
5. UNSCREW THE TERMINAL BLOCK SCREWS AND CONNECT
5. UNSCREW THE TERMINAL BLOCK SCREWS AND CONNECT
PROPER THE SUPPLY LEADS ON EACH POSITION.
PROPER THE SUPPLY LEADS ON EACH POSITION.
6. TIGHTENING THE SCREWS FROM TERMINAL BLOCK.
6. TIGHTENING THE SCREWS FROM TERMINAL BLOCK.
RECOMMENDED TORQUE FOR SCREWS 35 IN-LBS.
RECOMMENDED TORQUE FOR SCREWS 35 IN-LBS.
7. PUSH DOWN THE TERMINAL BLOCK COVER.
7. PUSH DOWN THE TERMINAL BLOCK COVER.
8. SECURE THE BOTTOM COVER.
8. SECURE THE BOTTOM COVER.
9. CLOSE THE UNIT.
9. CLOSE THE UNIT.
NOTE: CHECK TO INSURE THAT THE WIRES ARE NOT PINCHED NOTE: CHECK TO INSURE THAT THE WIRES ARE NOT PINCHED
AGAINST THE CASTING OR HOOD DURING RE-INSTALLATION OF
AGAINST THE CASTING OR HOOD DURING RE-INSTALLATION OF
THE REFLECTOR PLATE ASSEMBLY OR UL COVER.
THE REFLECTOR PLATE ASSEMBLY OR UL COVER.
WIRING: WIRING:
1. TO OPEN THE FIXTURE, LOCATE THE TWO CLOSURE SCREWS. TO OPEN THE FIXTURE, LOCATE THE TWO CLOSURE SCREWS.
THESE ARE LOCATED ON THE TWO ROUND BOSSES ON THE THESE ARE LOCATED ON THE TWO ROUND BOSSES ON THE
STREET SIDE OF THE FIXTURE. (SEE FIGURE 1.)
STREET SIDE OF THE FIXTURE. (SEE FIGURE 1.)
2. UNSCREW THE TWO
2. UNSCREW THE TWO CAPTIVE CAPTIVE CLOSURE SCREWS. YOU WILL CLOSURE SCREWS. YOU WILL
KNOW KNOW T THE SCREWS ARE COMPLETELY DISENGAGED FROM HE SCREWS ARE COMPLETELY DISENGAGED FROM
THE HOOD THE HOOD WHEN WHEN THE SCREWS CAN MOVE FREELY UP AND THE SCREWS CAN MOVE FREELY UP AND
DOWN. DOWN.
3. OPEN THE HOOD. 3. OPEN THE HOOD.
4. TO CLOSE THE FIXTURE, SIMPLY CLOSE THE HOOD AND RE-
4. TO CLOSE THE FIXTURE, SIMPLY CLOSE THE HOOD AND RE-
TIGHTEN TIGHTEN THE TWO CA THE TWO CAPTIVE CLOSURE SCREWS. TIVE CLOSURE SCREWS.
NOTE FOR OPTIONAL TRIGGER LATCH: TO OPEN THE UNIT NOTE FOR OPTIONAL TRIGGER LATCH: TO OPEN THE UNIT
SIMPLY PULL
SIMPLY PULL BOTH TRIGGERS SIMULTANEOUSLY WITH YOU BOTH TRIGGERS SIMULTANEOUSLY WITH YOU
INDEX FINGER WHILE INDEX FINGER WHILE PUSHING UP ON THE HOOD WITH YOUR PUSHING UP ON THE HOOD WITH YOUR
THUMBS. CLOSE THE UNIT BY THUMBS. CLOSE THE UNIT BY CLOSING THE HOOD AND PRESSING CLOSING THE HOOD AND PRESSING
DOWN UNTIL THE TRIGGER LATCHES ENGAGE. DOWN UNTIL THE TRIGGER LATCHES ENGAGE.
CAUTION
! LIFT UNIT OUT OF BOX BY BAG, NOT CUPOLA
DISCONNECT POWER BEFORE RELAMPING OR WIRING THE FIXTURE.
HOUSING MUST BE GROUNDED TO REDUCE POTENTIAL OF ELECTRICAL SHOCK
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION
WARNING
!
TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL
APPLICABLE NATIONAL AND LOCAL ELECTRICAL/BUILDING CODES. FOR CODE INTERPRETATION,
CONSULT LOCAL CODE AUTHORITY
RISK OF FIRE. PRODUCT FOR OUTDOOR INSTALLATION AND USE ONLY.
WARNING
CAUTION
!
!
CUPOLA CAP CUPOLA CAP
CUPOLA BASE CUPOLA BASE
CLOSURE CLOSURE
SCREW
SCREW
BOSS (2)
BOSS (2)
SCREW NOT
SCREW NOT
SHOWN
SHOWN
LOWER HOUSING LOWER HOUSING
MIN POLE OD 2.375” MIN POLE OD 2.375”
MAX POLE OD 3”
MAX POLE OD 3”
SET SCREWS (3) SET SCREWS (3)
LADDER REST (2) LADDER REST (2)
-OPTIONAL-
-OPTIONAL-
LENS LENS
PANELS (4)
PANELS (4)
TRIGGER TRIGGER
LATCH (2)
LATCH (2)
-OPTIONAL-
-OPTIONAL-
CUPOLA LENS CUPOLA LENS
ADJUST PHOTOCONTROL ADJUST PHOTOCONTROL
BY LIFTING & TURNING
BY LIFTING & TURNING
CUPOLA SIMULTANEOUSLY
CUPOLA SIMULTANEOUSLY

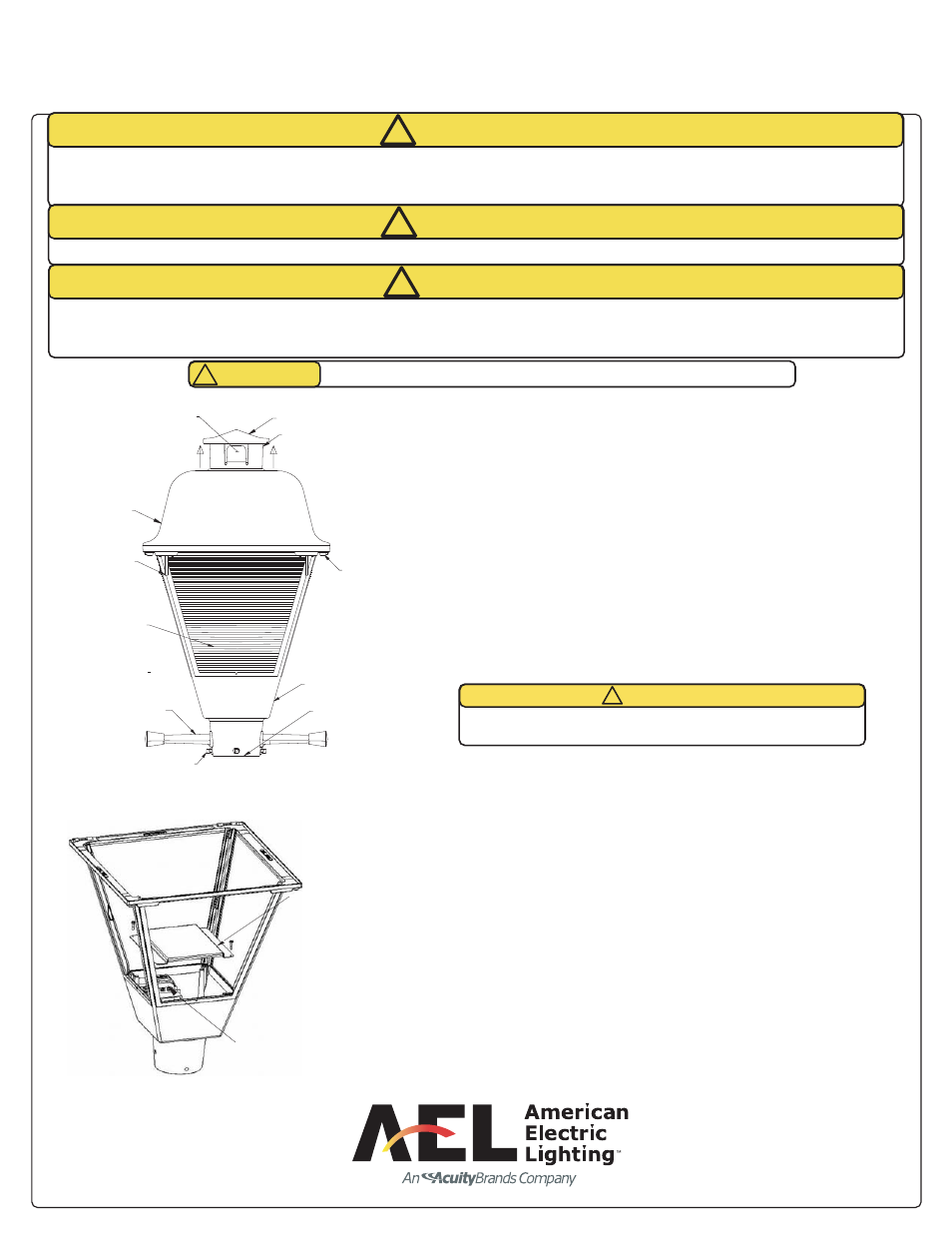

FIGURE 1 FIGURE 1
CLOSED HOOD - STREET SIDE VIEW
CLOSED HOOD - STREET SIDE VIEW
HOOD HOOD
FIGURE 2 FIGURE 2
BOTTOM COVER AND
BOTTOM COVER AND
TERMINAL BLOCK ASSEMBLY
TERMINAL BLOCK ASSEMBLY
TM
WARNING
FIXTURE MUST BE GROUNDED
TO FUNCTION AS INTENDED
!
TERMINAL BLOCK TERMINAL BLOCK
COVER
COVER
BOTTOM BOTTOM
COVER
COVER
