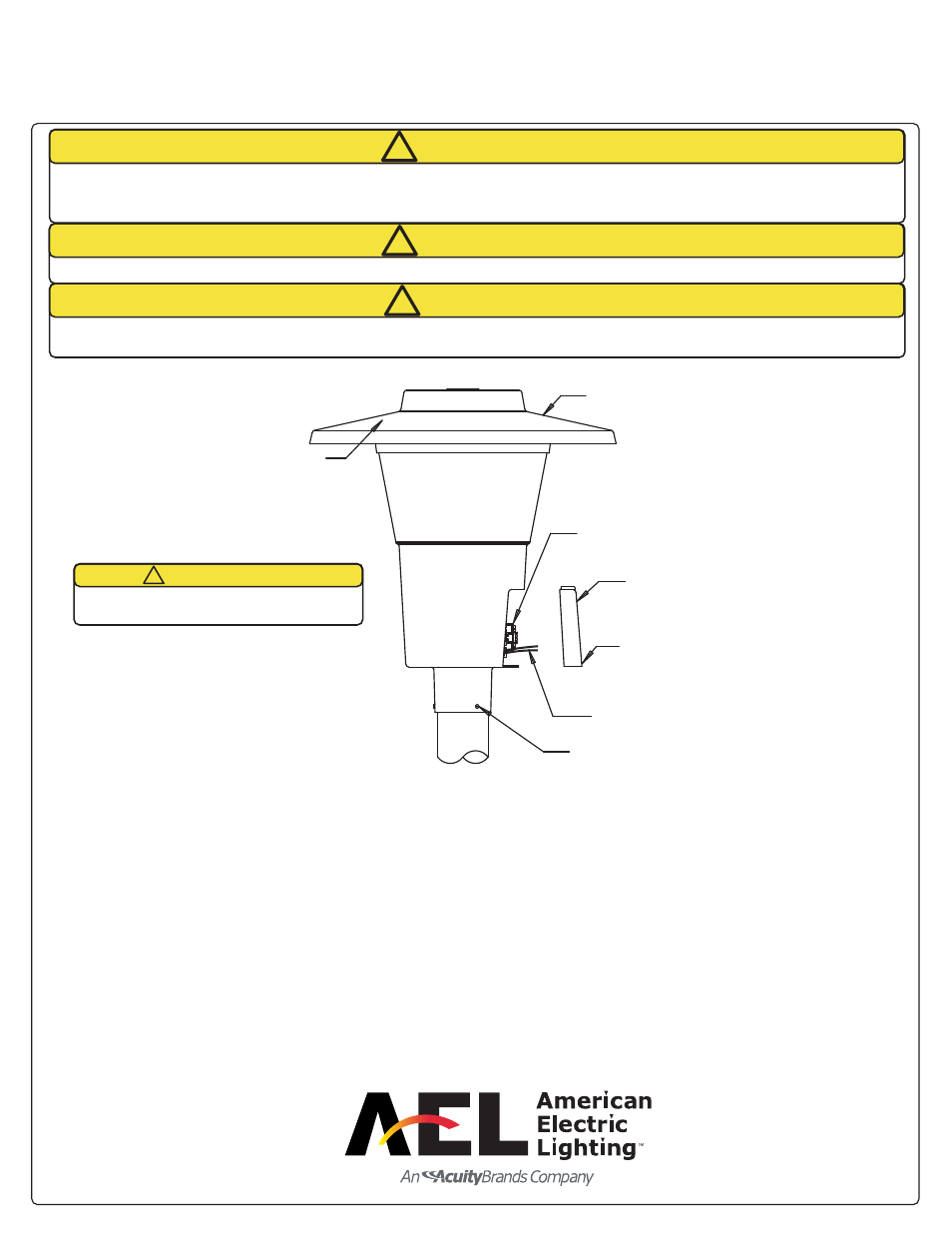

INSTALLATION INSTRUCTIONS

CONTEMPO POST TOP LUMINAIRE 245 SERIES

American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA

DRAWING NO. B62826 REV F

©2004 ACUITY LIGHTING GROUP, INC.

PART NUMBER 058-71-45303

WARNING

DISCONNECT POWER BEFORE RELAMPING OR WIRING THE FIXTURE.

HOUSING MUST BE GROUNDED TO REDUCE POTENTIAL OF ELECTRICAL SHOCK

READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION

TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL APPLICABLE NATIONAL

AND LOCAL ELECTRICAL/BUILDING CODES. FOR CODE INTERPRETATION, CONSULT LOCAL CODE AUTHORITY

RISK OF FIRE. PRODUCT FOR OUTDOOR INSTALLATION AND USE ONLY.

WARNING

CAUTION

!

!

!

CAPTIVE SCREW

DOOR

SERVICE LEADS (105íC)

TERMINAL BLOCK

HOOD LOCKING SCREW

(HIDDEN) HINGE

1. Remove access door by loosening captive screw.
2. Pull service leads through base assembly and out access door opening as shown. Place luminaire on 2-3/8" O.D.

to 3-1/8" O.D. pole and secure with three set screws.

3. Connect service leads to terminal block. (Refer to wiring diagram on inside of access door.)
4. Replace access door and secure with captive screw.
5. Install lamp into socket.
6. Install hood onto base assembly by inserting hinge bar of base into hinge bracket on under side of hood. Swing

hood over and into place.

7. Fasten hood locking screw.
8. For units with photoelectric receptacles, loosen receptacle screw one-half turn, orient north, and tighten one-half turn.
9. Insert photocontrol.
10. Restore power to fixture.

MAINTENANCE: Clean fixture with mild soap or household type detergent. Do not use acid or caustic cleaners.

SET SCREW

WARNING

ENSURE THAT ALL POWER IS

DISCONNECTED PRIOR TO WIRING

!

TM
