Pitco Frialator I12+ Cooking Computer for ROV Fryers - Manual (Page 30)

Solstice I12+ Cooking Computer for ROV Fryers
Pitco P/N 60149517 & 60149518
L20-414 Rev 2 Page 30 of 32

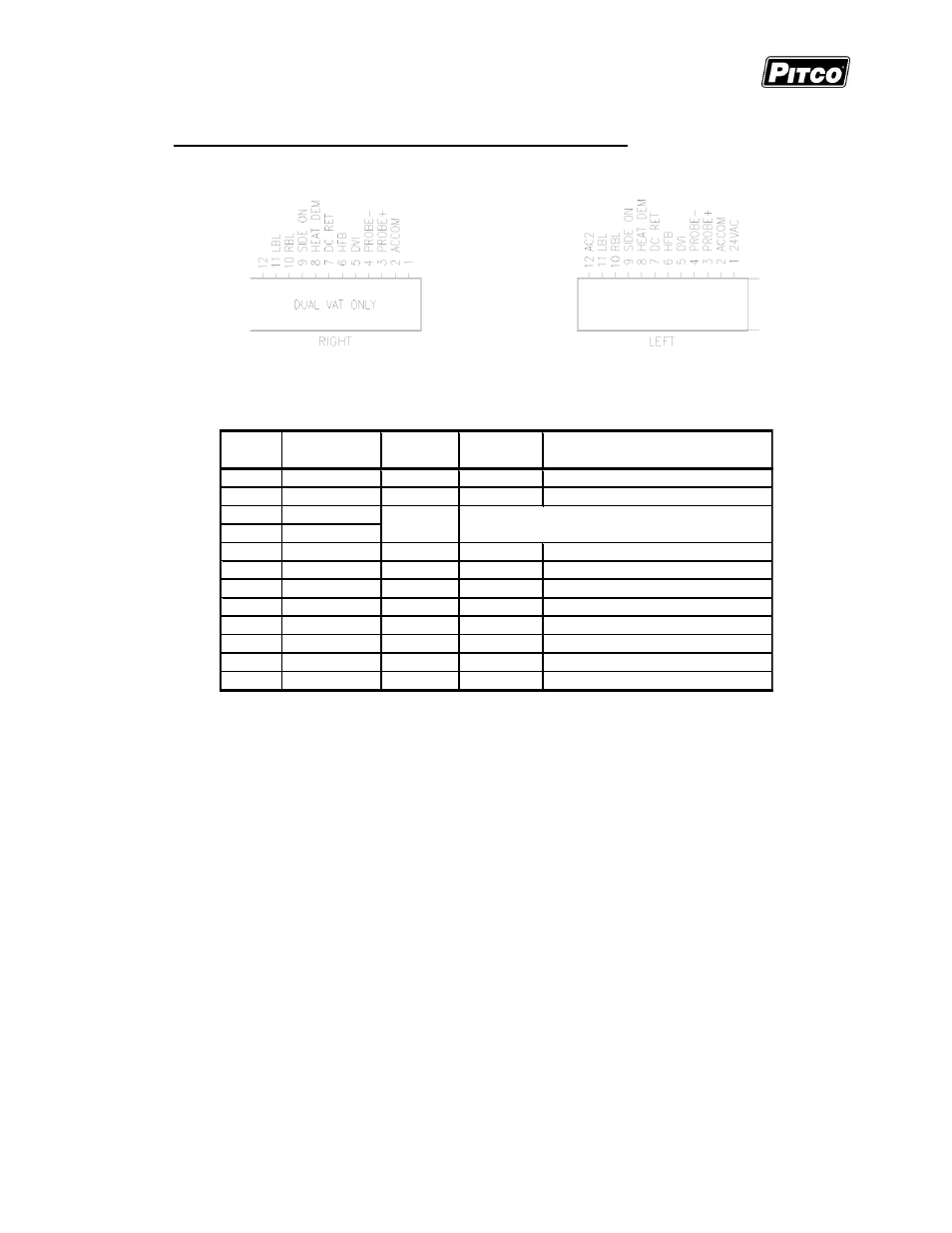

11 Electrical Connections at LEFT and RIGHT connectors):
As viewed from the rear of the control.
J1(Left) Inputs Type Nominal Notes:
1 ACH PWR 24VAC 24VAC +20% -15% 50/60Hz.
2 ACN PWR 24VACN 24VAC Return.
3 PROBE+
4 PROBE-
5 DVI IN 24VAC Drain Valve Interlock
6 HFB IN 24VAC Heat Feed Back
7 24VDC COM IN 24VDC DC Returm
8 HD OUT 24VDC Heat Demand
9 SO/xFER OUT 24VDC Side ON or XFER
10 RBL OUT 24VDC Right Basket Lift
11 LBL OUT 24VDC Left Basket Lift
12 AC2 PWR 24VAC Aux Power Input
Thermistor
Proble Resistance varies with vat temperature. 942 Ohms
@ 350°F
Tip: Use the diagnostic menu to verify operation of outputs, and inputs.
