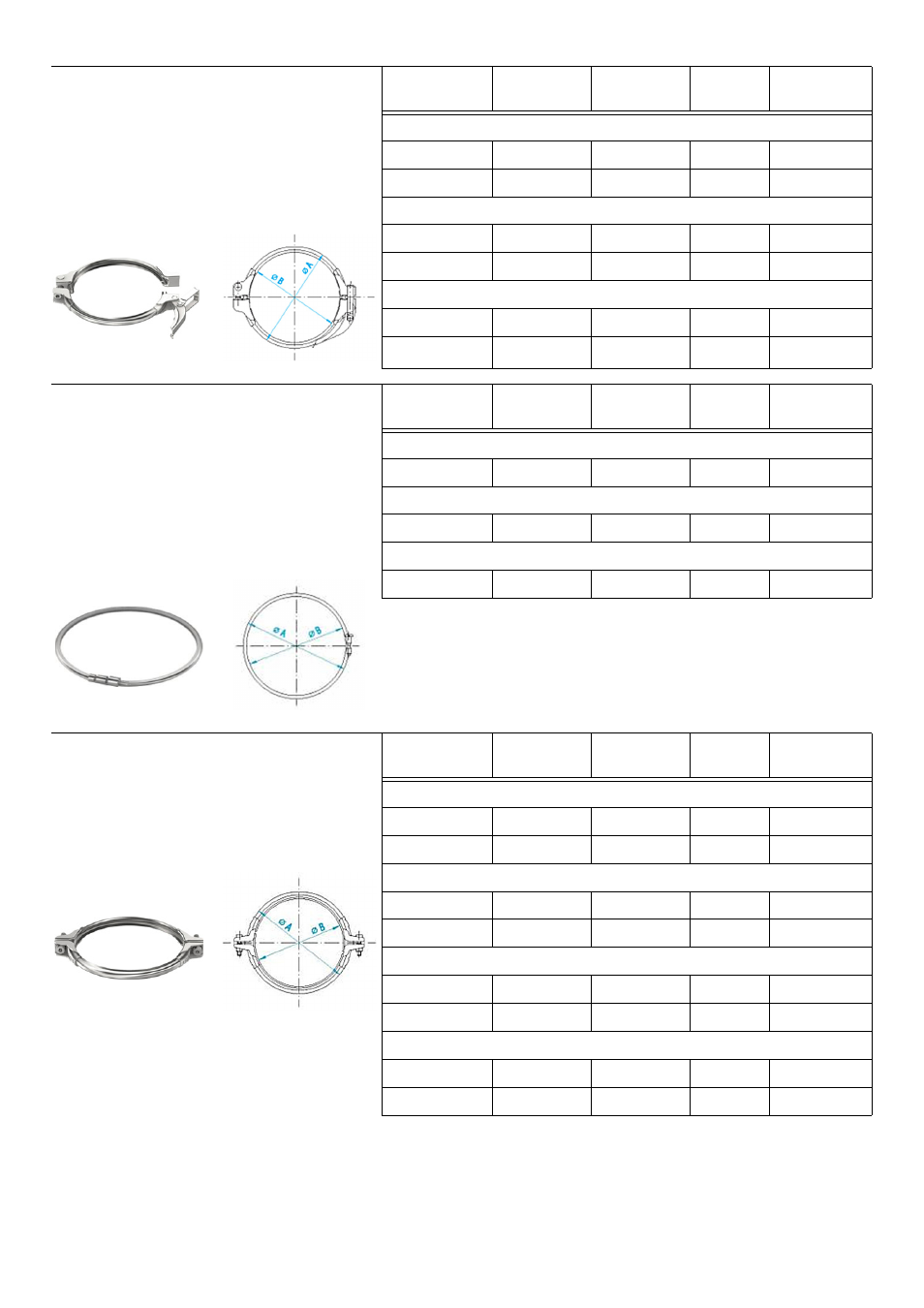

Quick Connect tension rings, one-piece Material ØA ØB Weight
kg Part no.
Quick Connect tension rings without sealing
compound for border sealings with 1 mm and
2 mm pipe parts. Ø80
zinc-coated 100 80 0,35 9.982-818.0
stainless steel 100 80 0,35 6.880-003.0
Ø100
zinc-coated 123 103 0,35 9.982-834.0
stainless steel 123 103 0,37 6.880-004.0
Ø120
zinc-coated 143 123 0,40 9.982-843.0
stainless steel 143 123 0,40 6.880-005.0
Tension rings one-piece with sealing com-
pound Material ØA ØB Weight
kg Part no.
The one-piece tension rings can also be used
for the connection of 1 mm with 1.5 mm thick
pipe parts.
With the one-piece tension ring installation
knowledge is required. Ø80
zinc-coated 100 80 0,35 6.880-006.0
Ø100
zinc-coated 123 103 0,37 6.880-007.0
Ø120
zinc-coated 143 123 0,40 6.880-008.0
Tension rings two-piece Material ØA ØB Weight
kg Part no.
Two-piece tension ring, e.g. for insertion pipes
with 1 + 2 mm wall thickness with jointrings. Ø60
zinc-coated 81 60 0,30 9.982-814.0
stainless steel 81 60 0,30 6.880-067.0
Ø80
zinc-coated 101 80 0,31 9.982-817.0
stainless steel 101 80 0,31 6.880-068.0
Ø100
zinc-coated 125 104 0,33 9.982-833.0
stainless steel 125 104 0,33 6.880-069.0
Ø120
zinc-coated 145 124 0,36 9.982-842.0
stainless steel 145 124 0,36 6.880-070.0
