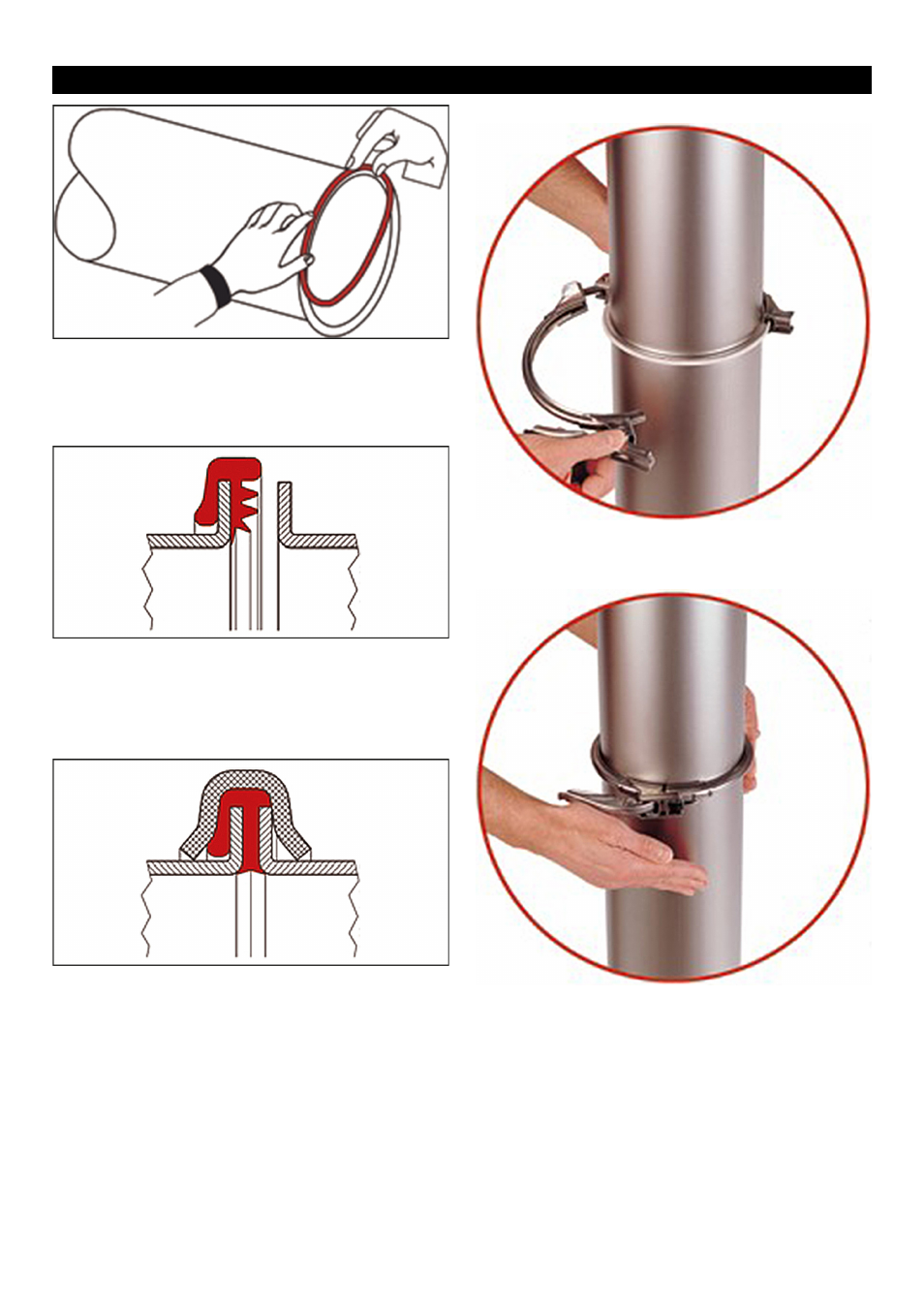

 Mount the flanged sealing ring onto one of the flanged
edges.
 The flanged sealing ring can be slightly pulled during
mounting, however, do not overstretch it.
Flanged sealing ring mounted.
Note
The corrugated side of the flanged sealing ring must point
towards the connection pipe part.
Attach tension ring.

Hold up opposite pipe to slide one tension ring half over
the flanged edges.
Note
– With QUICK CONNECT the tension ring half without
the clip-lock must be mounted first.
– When sliding on the tension ring, ensure that the pipe
parts do not show an offset and the flanged sealing ring
is not displaced.
– With horizontally routed lines in which condensate is
formed the joint of the flanged sealing ring and also the
joinings of the tension ring halves should preferably not
be positioned at the lowest point.
QUICK CONNECT© tension ring
 Push the second tension ring half over the flanged edg-
es.
 Place the clamp over the locking hook and close the
handle.
14 Installation instructions for tension ring connections with flanged sealing ring
