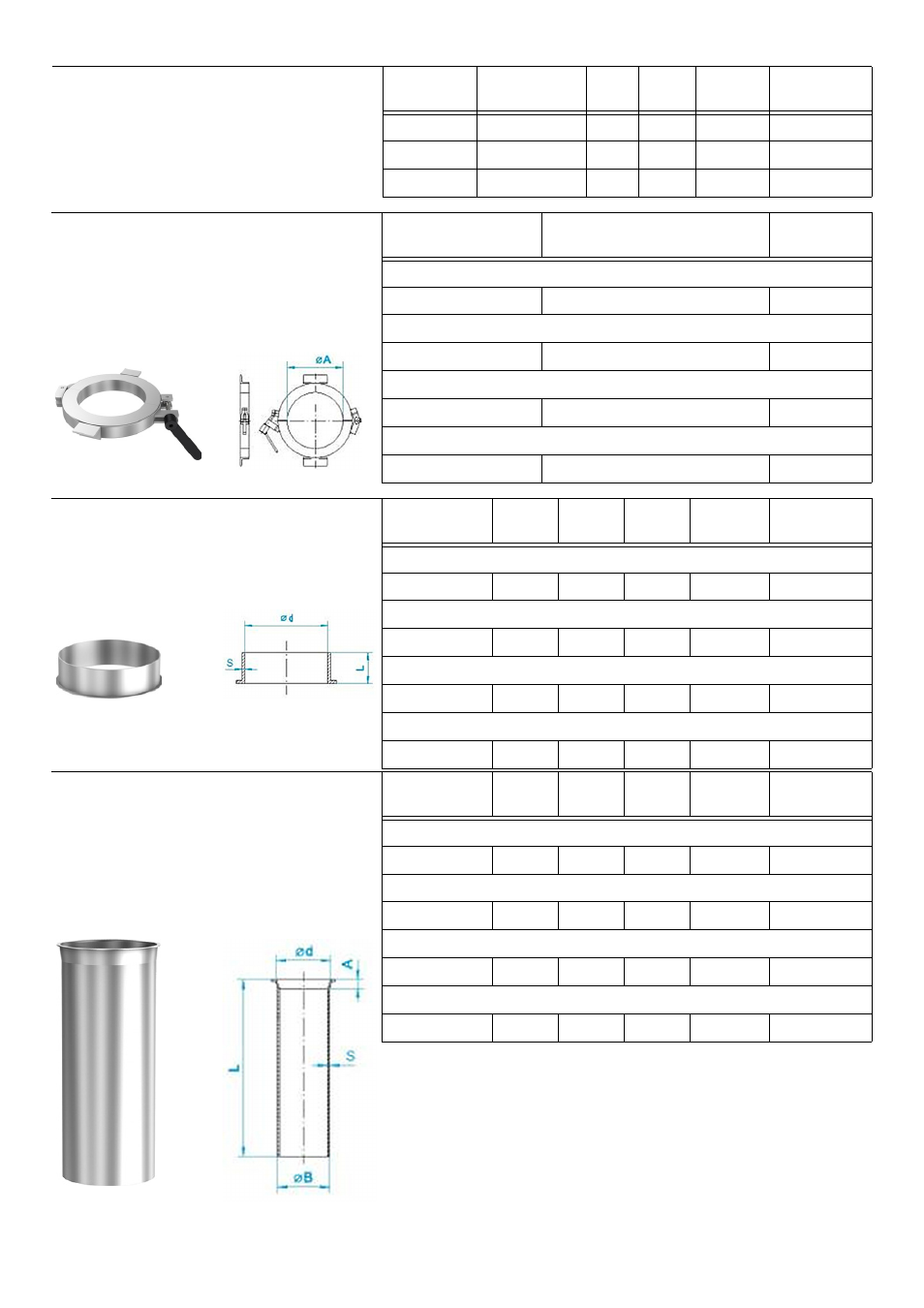

36 English 5.906-587.0 Rev. 00 (05/14)
500 stainless steel 119 1 1,49 6.880-040.0
200 stainless steel 119 1 0,63 6.880-048.0
50 stainless steel 119 1 0,18 6.880-054.0
Welded pipes Nominal
length Material Ød S Weight
kg Part no.
Flanging device ØA Weight
kg Part no.
Powder-coated flanging device with a welded
on angle. For attaching a flanged edge to a
pipe end. Ш60
60 3,10 6.880-161.0
Ш80
80 3,30 6.880-162.0
Ш100
103 3,60 6.880-163.0
Ш120
120 4,70 6.880-164.0
Weld-on ends Material Ød L S Weight
kg Part no.
Weld-on ends, flanged on one side Ø60
zinc-coated 57 55 1,5 0,13 6.880-055.0
Ø80
zinc-coated 77 55 1,5 0,12 6.880-056.0
Ø100
zinc-coated 99 55 2,0 0,30 6.880-057.0
Ø120
zinc-coated 119 55 2,0 0,36 6.880-058.0
Insertion pipes Material Ød ØB S Weight
kg Part no.
Nominal length 500 mm. Slide-in pipe for fitting
length compensation. For constructional rea-
sons an explosion pressure shock resistance
(up to 3 bar) does not apply for a slide-in pipe. Ø60
stainless steel 57 54 1,5 1,40 6.880-059.0
Ø80
stainless steel 78 75 1,0 0,90 6.880-060.0
Ø100
stainless steel 100 96 1,0 1,17 6.880-061.0
Ø120
stainless steel 120 116 1,0 1,41 6.880-062.0
