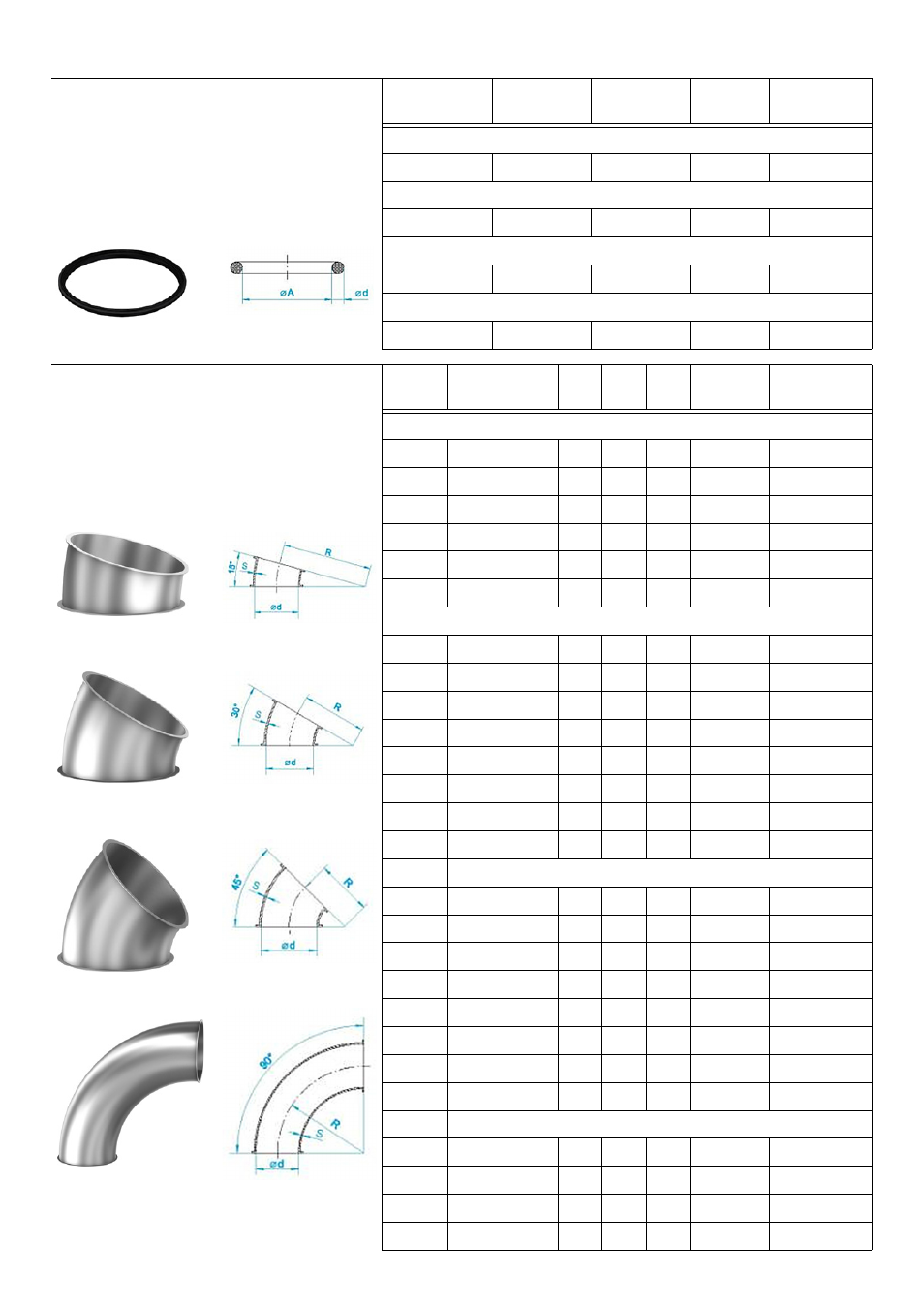

Jointring
Material
Ød
ØA
Weight
kg
Part no.
Jointrings for sealing insertion pipes at 1 to
3 mm wall thickness.
Keltan (EPDM*/**) -30°C to +120°C; black.
Ø60
EPDM
7
53
0,01
6.880-072.0
Ø80
EPDM
9
68
0,02
6.880-073.0
Ø100
EPDM
9
87
0,02
6.880-074.0
Ø120
EPDM
9
106
0,03
6.880-075.0
Pipe bends
Angle
Material
Ød
R
S
Weight
kg
Part no.
Pipe bends with R=2D made of drawn half-
shells. In use this means a flow optimisation
and a larger wear resistance.
Ø60
30°
zinc-coated
57
120
1,5
0,25
6.880-082.0
45°
zinc-coated
57
120
1,5
0,40
6.880-090.0
90°
zinc-coated
57
120
1,5
0,75
6.880-098.0
30°
stainless steel 57
120
1,5
0,25
6.880-086.0
45°
stainless steel 57
120
1,5
0,40
6.880-094.0
90°
stainless steel 57
120
1,5
0,75
6.880-102.0
Ø80
15°
zinc-coated
78
130
1
0,10
6.880-076.0
30°
zinc-coated
76
160
1
0,35
6.880-083.0
45°
zinc-coated
76
160
1
0,50
6.880-091.0
90°
zinc-coated
76
160
1
0,95
6.880-099.0
15°
stainless steel 78
130
1
0,10
6.880-079.0
30°
stainless steel 76
160
1
0,35
6.880-087.0
45°
stainless steel 76
160
1
0,50
6.880-095.0
90°
stainless steel 76
160
1
0,95
9.982-623.0
Ø100
15°
zinc-coated
100
130
1
0,10
6.880-077.0
30°
zinc-coated
99
200
1
0,60
6.880-084.0
45°
zinc-coated
99
200
1
0,85
6.880-092.0
90°
zinc-coated
99
200
1
1,55
6.880-100.0
15°
stainless steel 100
130
1
0,10
6.880-080.0
30°
stainless steel 99
200
1
0,60
6.880-088.0
45°
stainless steel 99
200
1
0,85
6.880-096.0
90°
stainless steel 99
200
1
1,55
6.880-104.0
Ø120
15°
zinc-coated
120
155
1
0,15
6.880-078.0
30°
zinc-coated
119
240
1
0,80
6.880-085.0
45°
zinc-coated
119
240
1
1,15
6.880-093.0
90°
zinc-coated
119
240
1
2,20
6.880-101.0
