Karcher IV 100 - 55 M B1 - Manual (Page 40)

40 English 5.906-587.0 Rev. 00 (05/14)

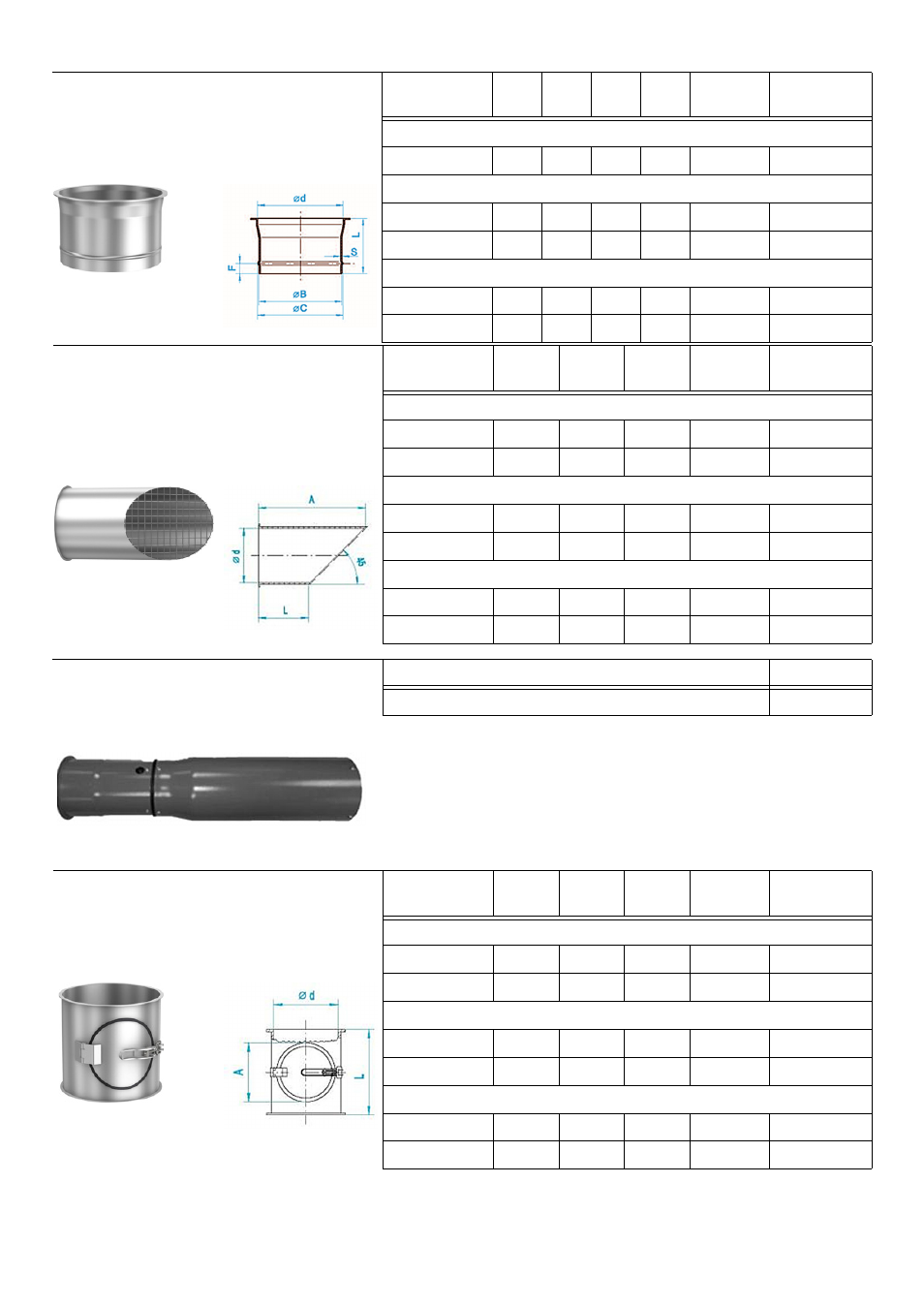

Hose connecting pieces Material Ød B F L Weight
kg Part no.
Wall thickness 1 mm Ø60
stainless steel 57 60 80 0,02 6.880-144.0
Ø80
zinc-coated 78 78 15 88 0,02 6.880-142.0
stainless steel 78 78 15 88 0,02 9.982-624.0
Ø100
zinc-coated 100 95 15 100 0,25 6.880-143.0
stainless steel 100 95 15 100 0,25 9.982-661.0
Outlet pipes 45° with bird screen Material Ød A L Weight
kg Part no.
Bird screen
Mesh 20 x 20 x 20 mm. Ø80
zinc-coated 78 280 200 0,90 6.880-147.0
stainless steel 78 280 200 0,90 6.880-150.0
Ø100
zinc-coated 100 300 200 1,20 6.880-148.0
stainless steel 100 300 200 1,20 6.880-151.0
Ø120
zinc-coated 120 320 200 1,50 6.880-149.0
stainless steel 120 320 200 1,50 6.880-152.0
False air / bypass valve Nominal Ø Part no.
False air / bypass valve with flanged edge for
the connection to a pipe end DN100. 100 9.985-584.0
Cleaning pipe Material Ød A L Weight
kg Part no.
Sealing ring Neoprene (CR), -30 max. +90 °C. Ø80
zinc-coated 77 80 200 1,05 6.880-153.0
stainless steel 77 80 200 1,05 6.880-156.0
Ø100
zinc-coated 100 115 200 1,45 6.880-154.0
stainless steel 100 115 200 1,45 6.880-157.0
Ø120
zinc-coated 120 115 200 1,45 6.880-155.0
stainless steel 120 115 200 1,45 6.880-158.0
