82000-922 D.0
INSTALLATION GUIDE 7 ©2009 - 2012 HID Global Corporation. All rights reserved.
Hi-O Networked Controller & Reader
EHR40 AND EHRP40
GND
+DC Input
Ethernet / PoE
Auto-Detected
CAN Termination
Resistor
(Default - Installed)
Activity LED

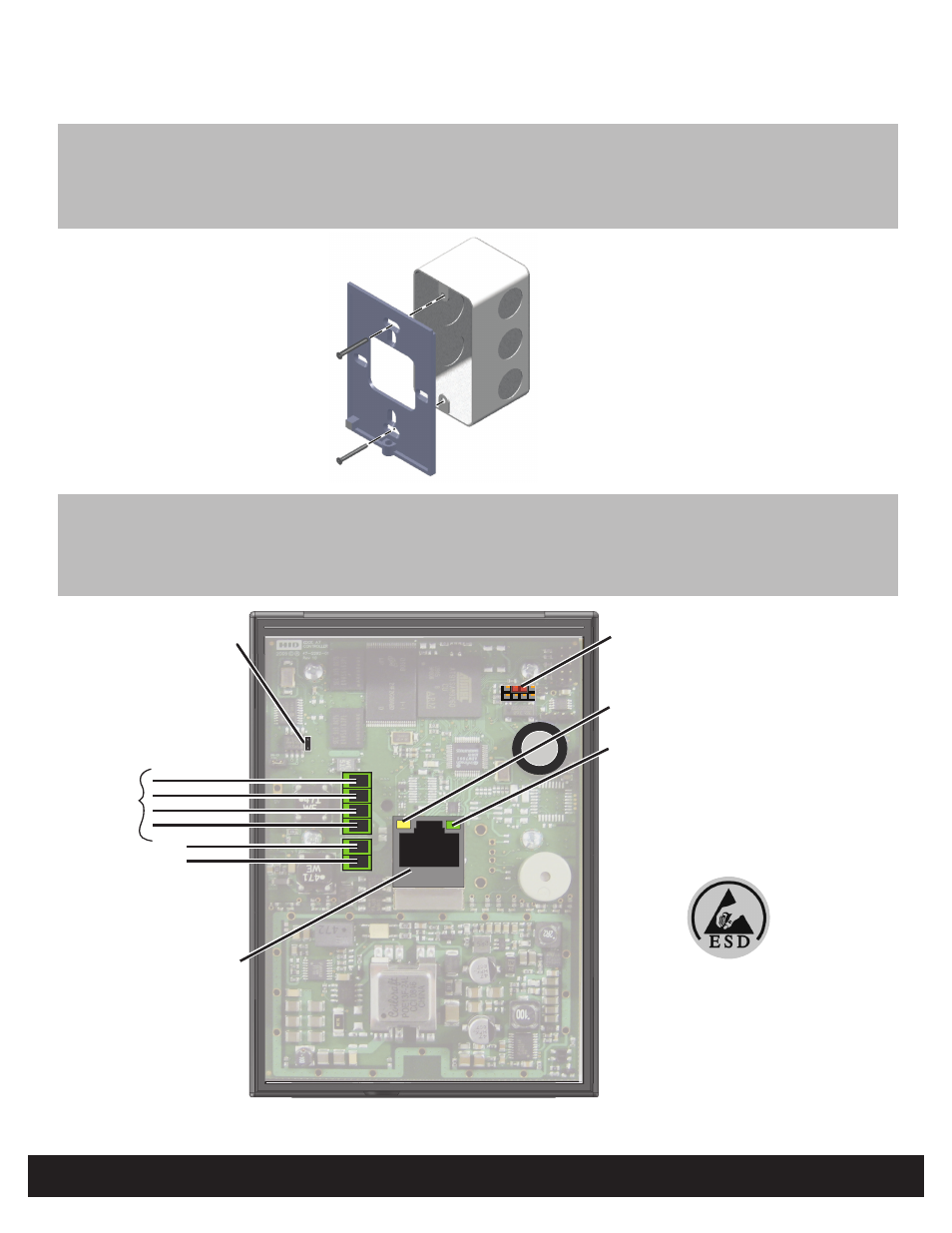

ES400, ER40 or ERP40 (Rear View)
Ethernet
Link LED
Hi-O CANbus
CAN_L
CAN_H
GND
CAN V+
Restore Network
Defaults Jumper
ATTENTION
Observe precautions for handling
ELECTROSTATIC SENSITIVE DEVICES
2
Mounting
Junction box not included.
Wiring
3
