ROTHENBERGER ROSCOPE 1000 Set TEC 1000 User Manual
Page 23
ENGLISH
21

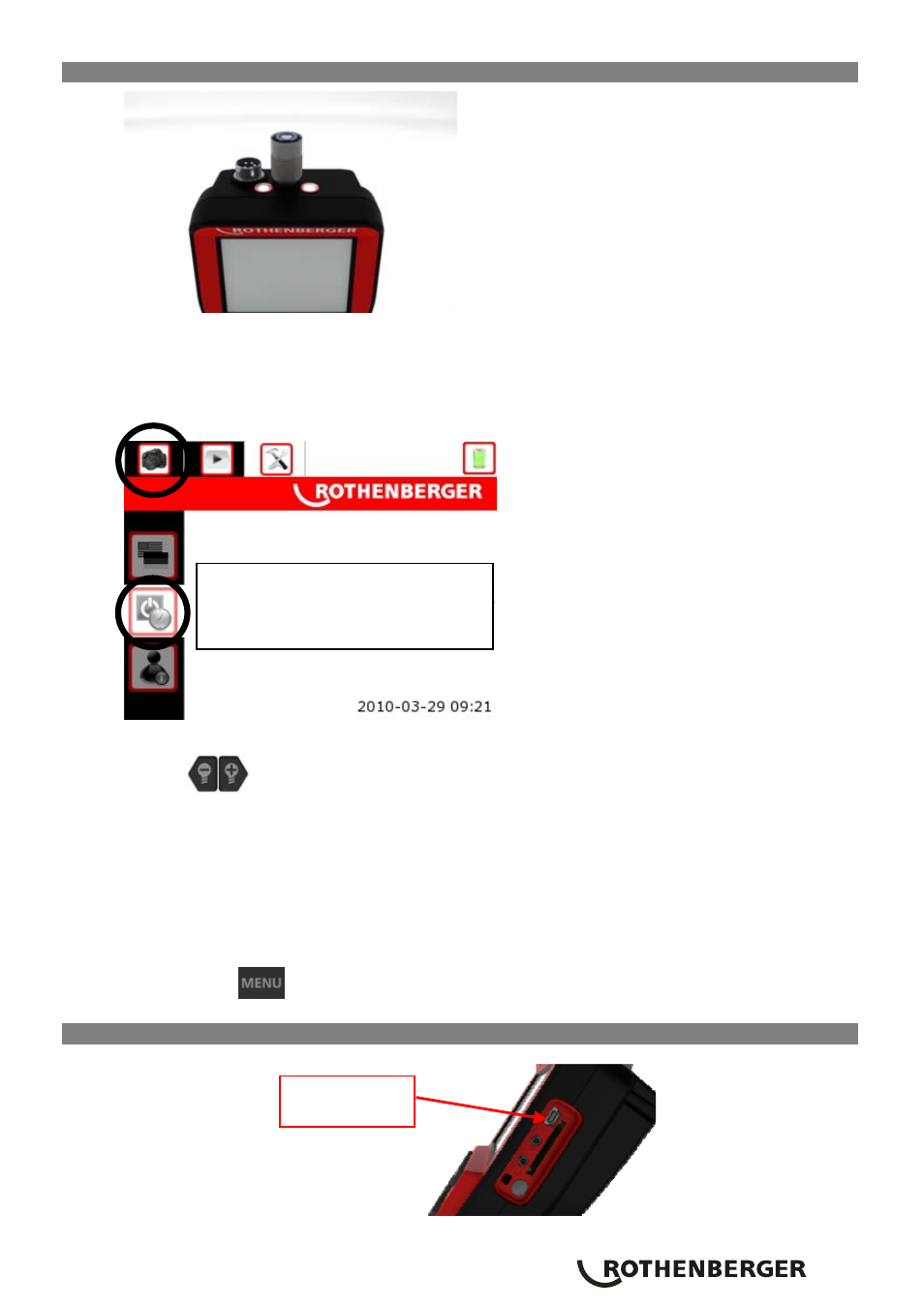

9.15 Turning on the Exterior (Handheld Device) Lights
Figure 26– Location of the Exterior Lights
Refer back to section for menu navigation architecture Section 9.4, the menu screen necessary to
change this feature is shown in Figure 27 below.
Figure 27 – Exterior (Handheld Device) Light Settings
Use the
buttons to change the setting.
1. Auto Mode – The External (Handheld Device) Lights turn on with the Imager LEDs (see
section 9.2 for turning the Imager LEDs on)
NOTE: the intensity of the External Lights does not change; they are either ON or OFF.
2. On Mode – The External (Handheld Device) Lights are always in the ON position regardless
whether the Imager LEDs are in use. When the unit is on, the External Lights are on.
3. Off Mode – The External (Handheld Device) Lights are always in the OFF position regardless
whether the Imager LEDs are in use.
Press the
button two times to exit into live mode.
10. Transferring Images to a computer
Figure 28 – USB Connection for Transfer
FPO
Replace with proper screen shot.
Mini USB
