ENGLISH

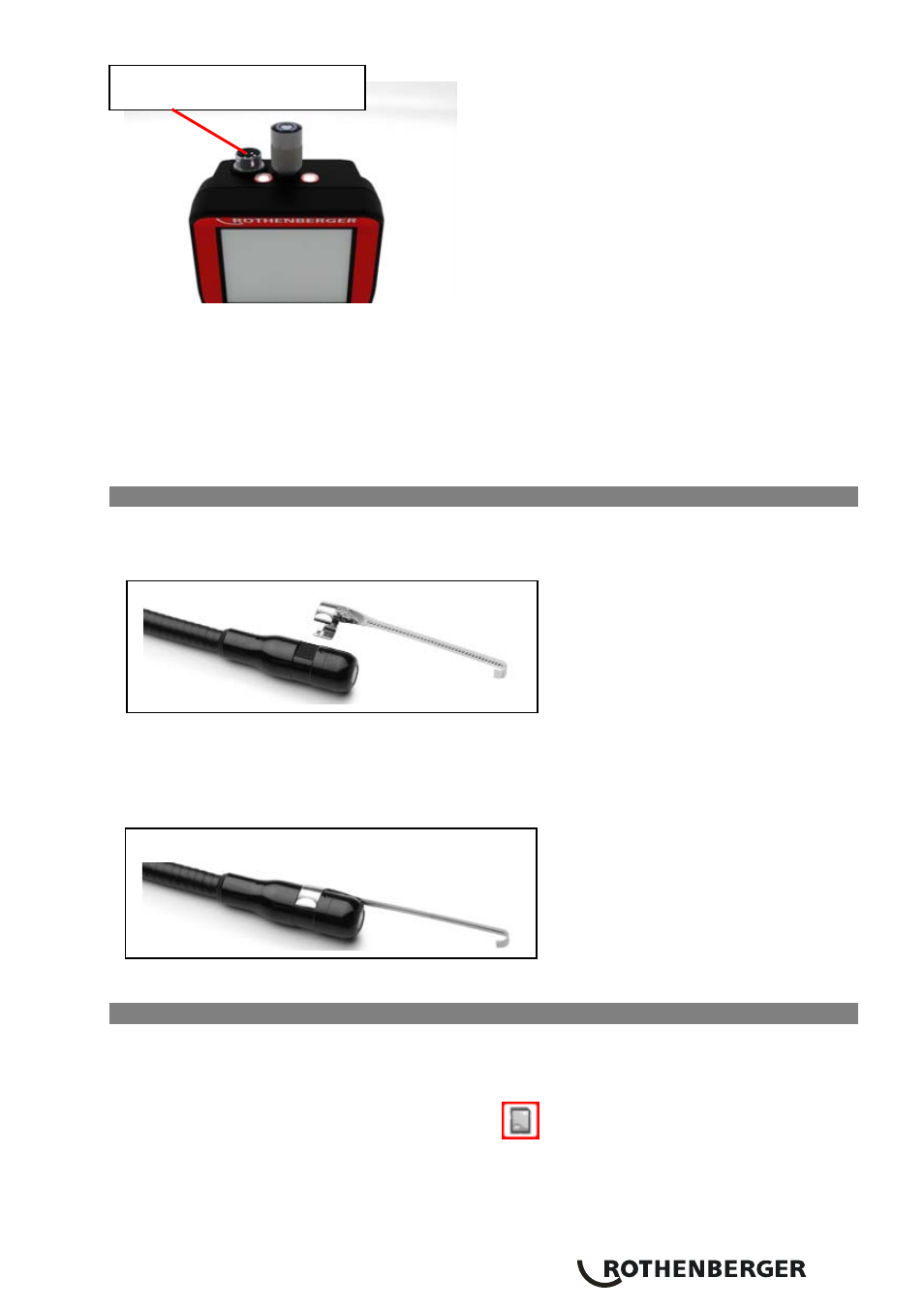

Figure 5 – Cable Connections (Connector Style B, Silver Color)
NOTE: Connector Style B is used to attach previous versions of the RoScope Imager Cable.
1.3m (4’) cable extensions are available, for Connector A imager only, to increase the length of

your cable up to 10.7m (35’) in length. To install an extension, first remove the imager cable from

the handheld device by loosening the knurled nut. Connect the extension(s) to the handheld

device as described above (Figure 4). The keyed end of the imager head cable connects to the

slotted end of the extension.

3.5

To Install Camera Accessories

Figure 6 shows a mirror, hook and magnet (accessories sold separately). Each accessory attaches

to the (provided) Connector Style A Imager Head the same way.

..................................................................................

Figure 6 –Connector Style A accessories (sold separately)
To attach an accessory, hold the imager head as shown in Figure 7. Slip the semicircle end of the

accessory over the flats of the imager head as shown in Figure 6. Then rotate the accessory a 1/4

turn so the long arm of the accessory is extending out as shown (Figure 7).

..................................................................................

Figure 7 – Installing an Accessory on the Connector A imager

3.6

To Install an SD Card

Using the tab on the port cover (Figure 8), lift and pull to remove the cover and expose the SD

card slot. (SD card is included). Insert the SD card into the slot (Figure 9) making sure the contacts

are facing towards you and the angled portion of the card is facing down.

When an SD card is installed, a small SD card icon

will appear in the bottom right hand

portion of the screen, along with the number of images or length of video that can be stored on

the SD card.

Slot for Connector Style B
