10 ENGLISH
NOTE: When the SD card is installed, the software does not use internal storage memory.
To record or review pictures and video on internal storage memory, remove the SD card.
Buttons, Controls and Ports

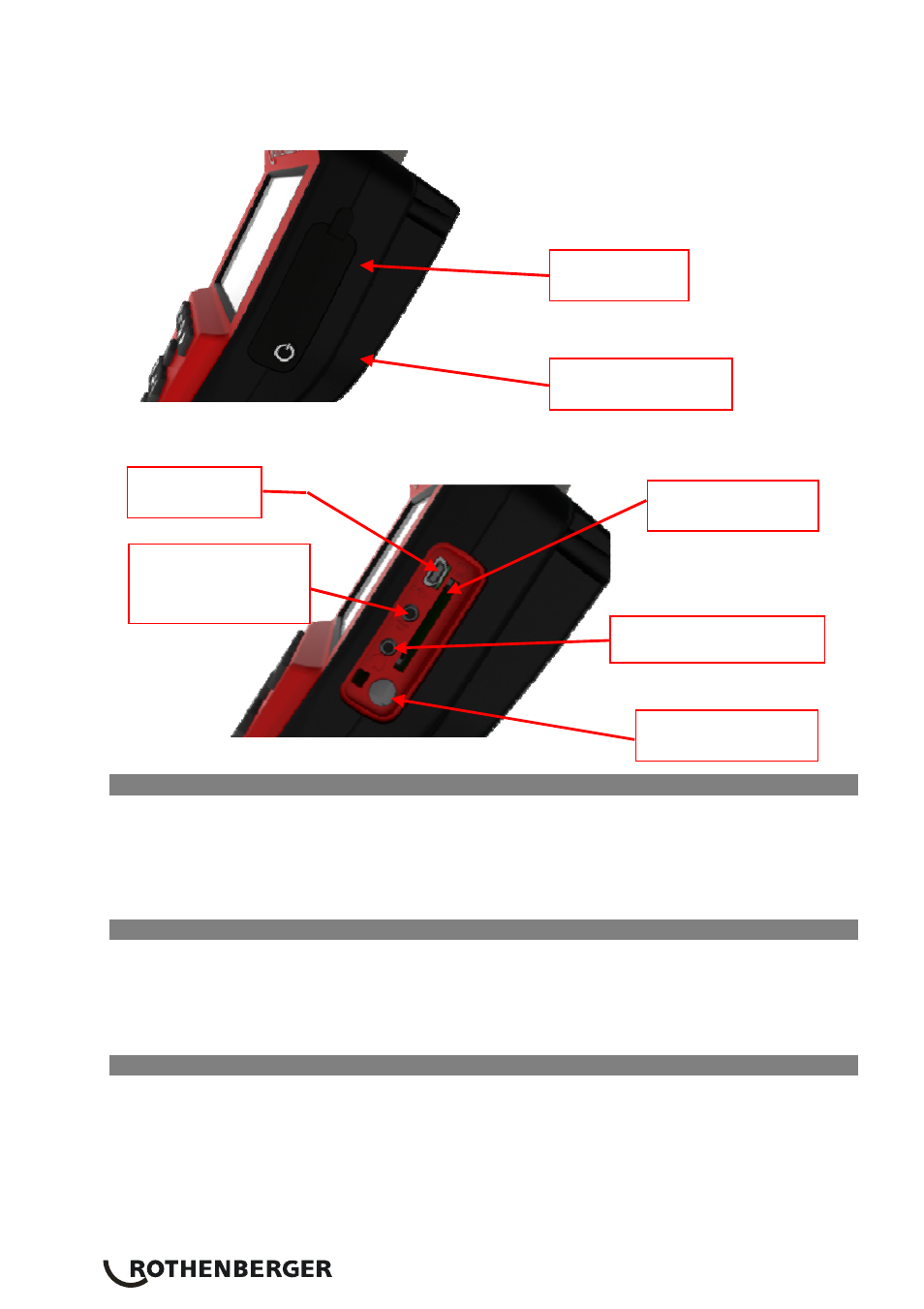

Figure 8 – Port Cover and Power Button
Figure 9 – Unit Inputs
3.7 Using an External Monitor (applies to Connector B imager only)
The video output port can only be used for displaying live images. Using the tab on the port cover
(Figure 8), lift and pull to remove the cover and expose the video output port (Figure 9). Connect
the ¼” mono mini-plug (sold separately) into the video output port. Connect the RCA end of the
video cable into the external monitor. Refer to your monitor’s instruction manual for displaying
video inputs.
3.8 Using the Audio Input
Using the tab on the port cover (Figure 8), lift and pull to remove the cover and expose the audio
port (Figure 9). Connect the audio headset (sold separately) to the audio port. You can now use
the headset to record audio to a video, add a voice tag (see “On Screen Navigation” Section 9.7
and 9.10 for instructions) to a saved picture, or listen to previously recorded audio.
3.9 Tool Inspection
1. Keep connectors clean
2. Inspect Battery for signs of wear or damage
3. Inspect Battery Charger for signs of wear or damage
4. Clean any foreign contaminants (grease, dirt, oil or sewage) from the device. Imager glass
must be free of any debris to ensure optimal performance.
5. Be aware of all warnings on label as shown in figure 10
Mini USB
SD Card Slot
Audio In/Out Port
Video Out Port
(Select Imagers
only)
Power Button
Power Button
Port Cover
