8 ENGLISH
2. Lift and pull to remove cap when released.

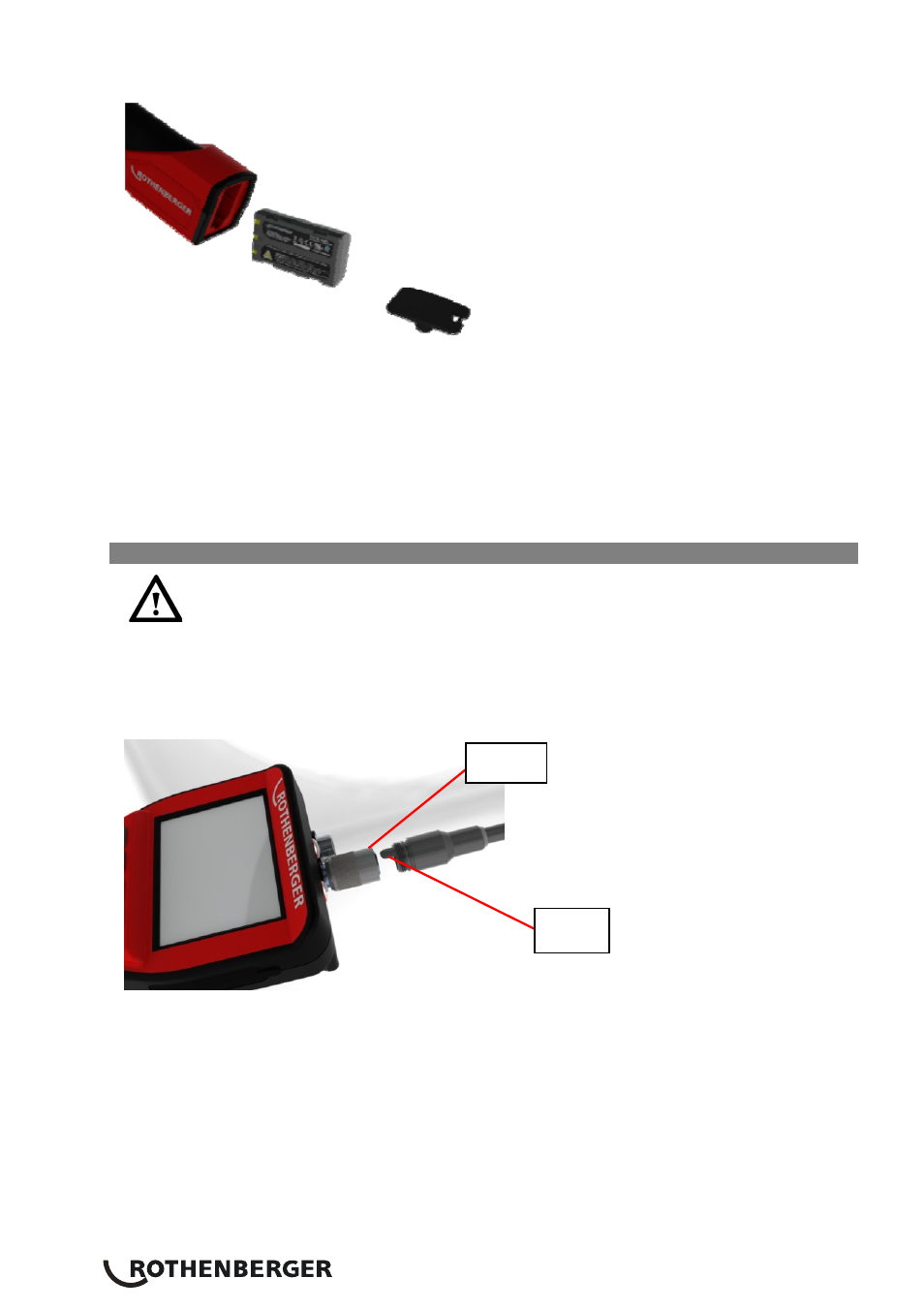

Figure 3 – Removing/Installing Battery
3. Battery removal and installation (Figure 3)
To remove the battery pack, tilt unit slightly to slide battery into other hand. (Figure 3)
To install the battery, insert contact end of rechargeable battery pack into the ROSCOPE 1000
inspection device battery compartment. (Figure 3)
4. Replace battery cover (Figure 2) and snap into place.
3.4 Installing the Imager Head Cable
Only one imager should be connected to the unit at a time. Always make sure the unit is
off when installing or removing an imager.
To use the ROSCOPE 1000 inspection device, the imager head cable must be connected to the
handheld device. To connect the cable to the handheld device, make sure the key and slot (Figure
4 and 5) are properly aligned. Once they are aligned, hand-tighten the knurled nut to hold the
connection in place.
Figure 4- Cable Connections (Connector Style A, Black Color)
Slot
Key
