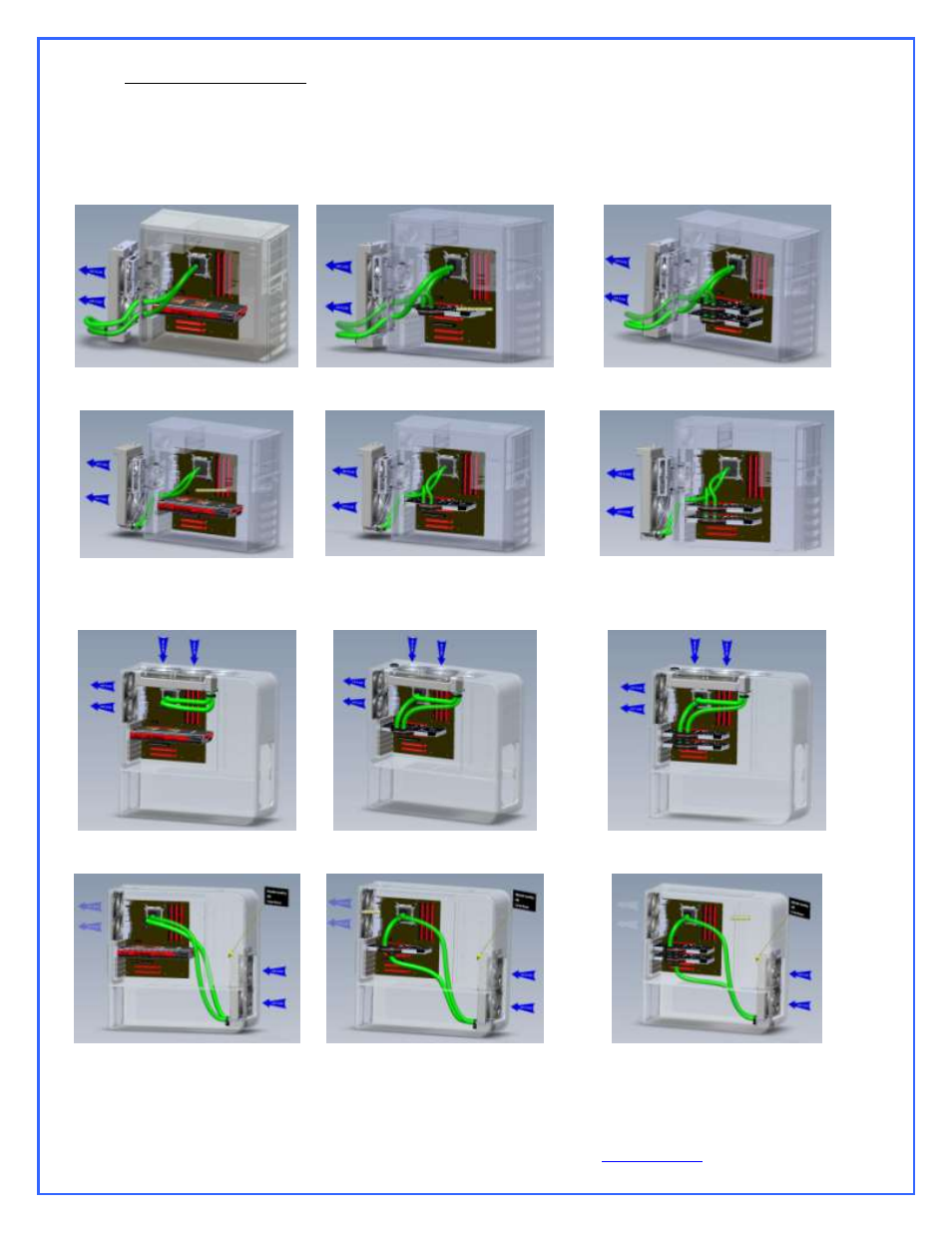

A. Installation configuration table
Please view the actual 3D model in the installation CD; the icons listed below reflect the structure of the CD directories, and will help identifying a
suitable configuration for your own components.
MCR220 Drive
External Installation (Mid- Tower Cases) with MCB120 “Radbox”

Using provided 1- 2” tubing, and routing tubes thru pre-existing case holes
CPU cooling only CPU + (1) Liquid Cooled VGA CPU + (2) Liquid Cooled VGA
 Using optional 3- 8” tubing, and routing tubes thru provided PCI bracket
CPU cooling only CPU + (1) Liquid Cooled VGA CPU + (2) Liquid Cooled VGA
Internal Installation (Full-Tower Cases)

Horizontal, Top of Case
CPU cooling only CPU + (1) Liquid Cooled VGA CPU + (2) Liquid Cooled VGA
 Vertical, Front of Case
CPU cooling only CPU + (1) Liquid Cooled VGA CPU + (2) Liquid Cooled VGA
