Swiftech H20 X20 EDGE SERIES User Manual
Page 14
Copyright Swiftech 2010
– All rights reserved – Last revision date: 8-17-10 - Information subject to change without notice – URL
Rouchon Industries, Inc., dba Swiftech
– 151 West Victoria Street, Long Beach, CA 90805 – Tel. 310-763-0336 – Fax 310-763-7095 - E Mail: [email protected]
14 of 16

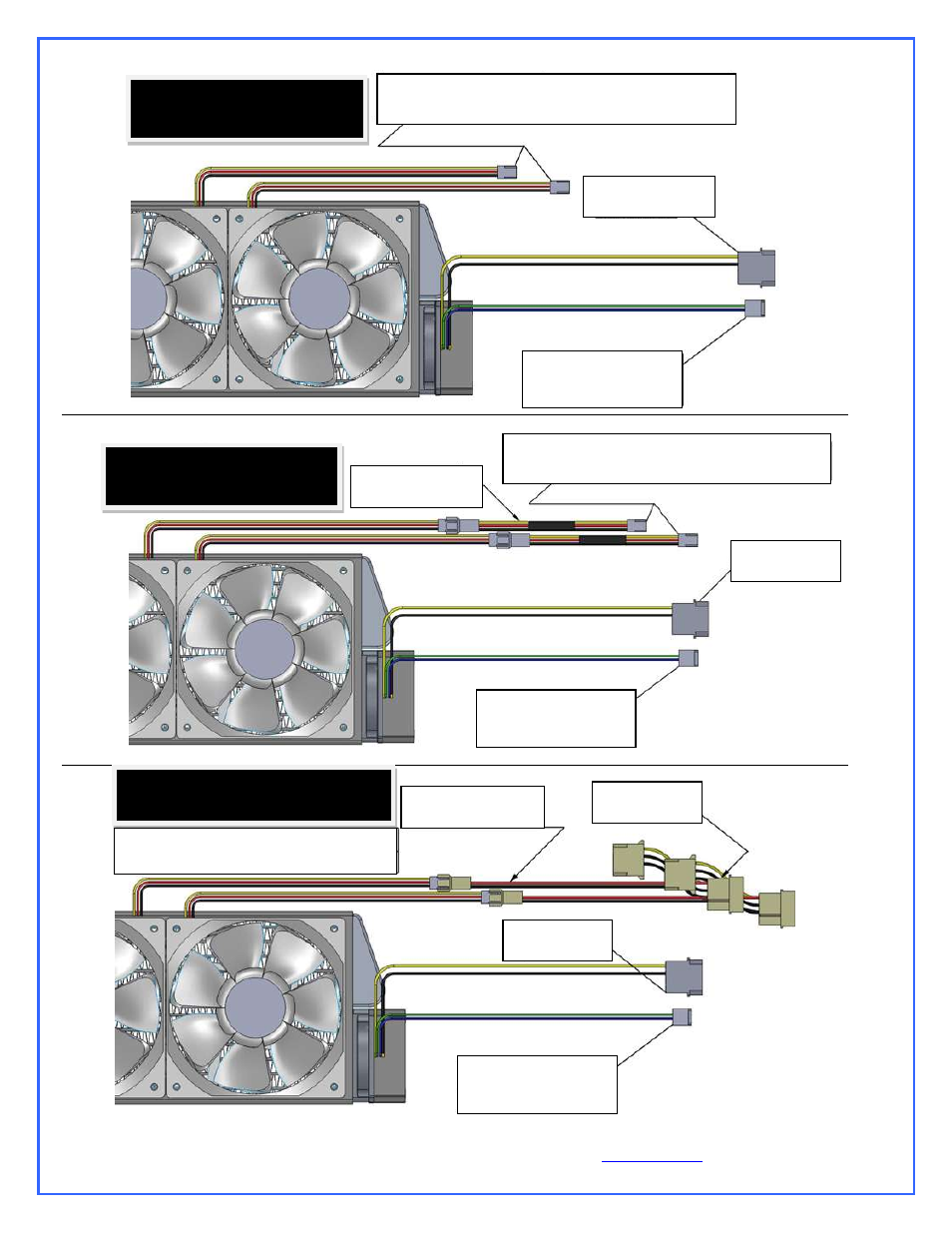

FAN CONNECTIONS
FOR FULL SPEED
(12V)
FAN CONNECTIONS
FOR MEDIUM SPEED
(7V)
FAN CONNECTIONS
FOR LOW SPEED
(5V)
To Motherboard 3-pin header or to power supply using a
standard 3-pin to Molex extension (not included)
To Motherboard 3-pin header or to power supply using
a standard 3-pin to Molex extension (not included)
12 to 7v adapter
(Included)
12 to 5v adapter
(Included)
To Power supply
To Power
supply
To Power
supply
To Motherboard
CPU_Fan 4-pin header
To Motherboard
CPU_Fan 4-pin header
To Motherboard
CPU_Fan 4-pin header
To Power
supply
Warning: do not use these adapters to connect
other components!
