Installation
55
F8208301
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

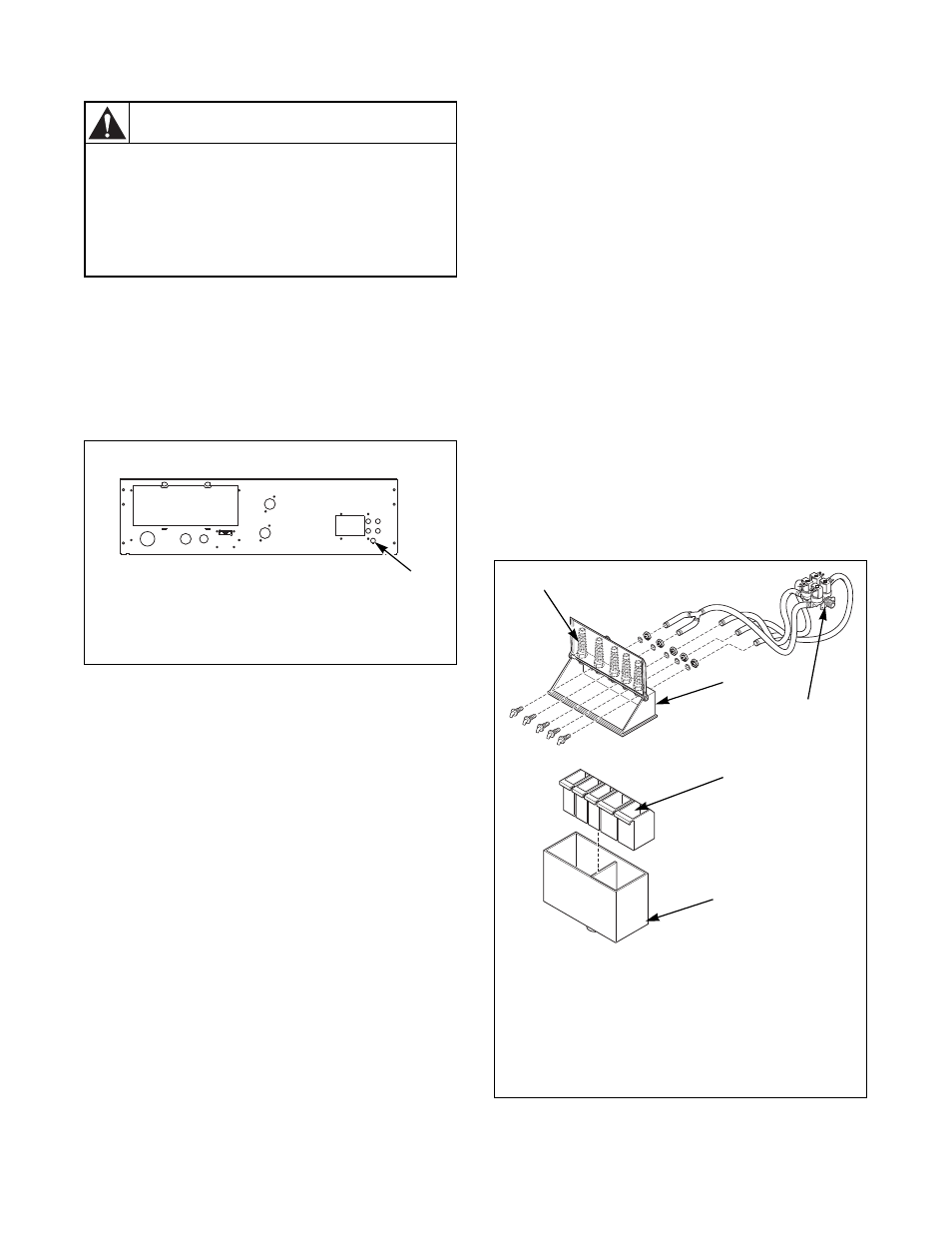

Connection of External Liquid Supplies
20 – 80 Pound OPL Models
1. Facing the rear of the machine, locate the five
3/8 inch supply hose connections found on the
right-hand side of the valve panel. Refer to
Figure 31
2. Drill through the five plastic holes on the valve
panel for the external supply hoses as needed.
3. Remove plastic debris.
4. Attach the external supply hoses to the ports at
each of the drilled holes.
5. Secure with proper clamps.
NOTE: Do not attempt to make chemical injection
supply pump electrical connections to points other
than those provided specifically for that purpose by
the factory.
Consult the supply vendor instructions for operational
details about supply injections.
125 Pound OPL Models
(With Optional Dispenser)
1. Remove plugs from base. Plugs are assembled
inside tubing ring.
2. Install strain reliefs with the seal nuts.
3. Insert tubes through base. Do not remove dry
supply cups. Tube should extend into plastic cup,
with exception of softener tube, which should be
routed to outside of cup.
4. Tighten seal nut to prevent tubing from escaping
assembly.
IMPORTANT: Increasing fuse rating may cause
damage to washer-extractor’s circuitry.
IMPORTANT: Any injection system pump that
requires anything other than 24VAC must be
powered by a separate external power source.
Consult chemical injection supply system instructions
for operational details.
Figure 32
CHM2237N
1
External Supply Hose Opening
Do not attempt to increase fuse rating or
alter wiring of external chemical supply
terminal strip in such as way that may
conflict with the suggested methods
provided on the Optional External Supply
Wiring Diagram.
W699
CAUTION
CHM2237N
20-80 Pound Models
C VALVE PANEL – REAR VIEW
1
CHM2001N
1
Strain Relief for Liquid Chemical Supply
Lines
2
Supply Dispenser Lid
3
Four Way Water Valve
4
Dry Supply Cups
5
Supply Dispenser
PHM2001N
2
4
3
5
1
