Installation
47 F8208301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

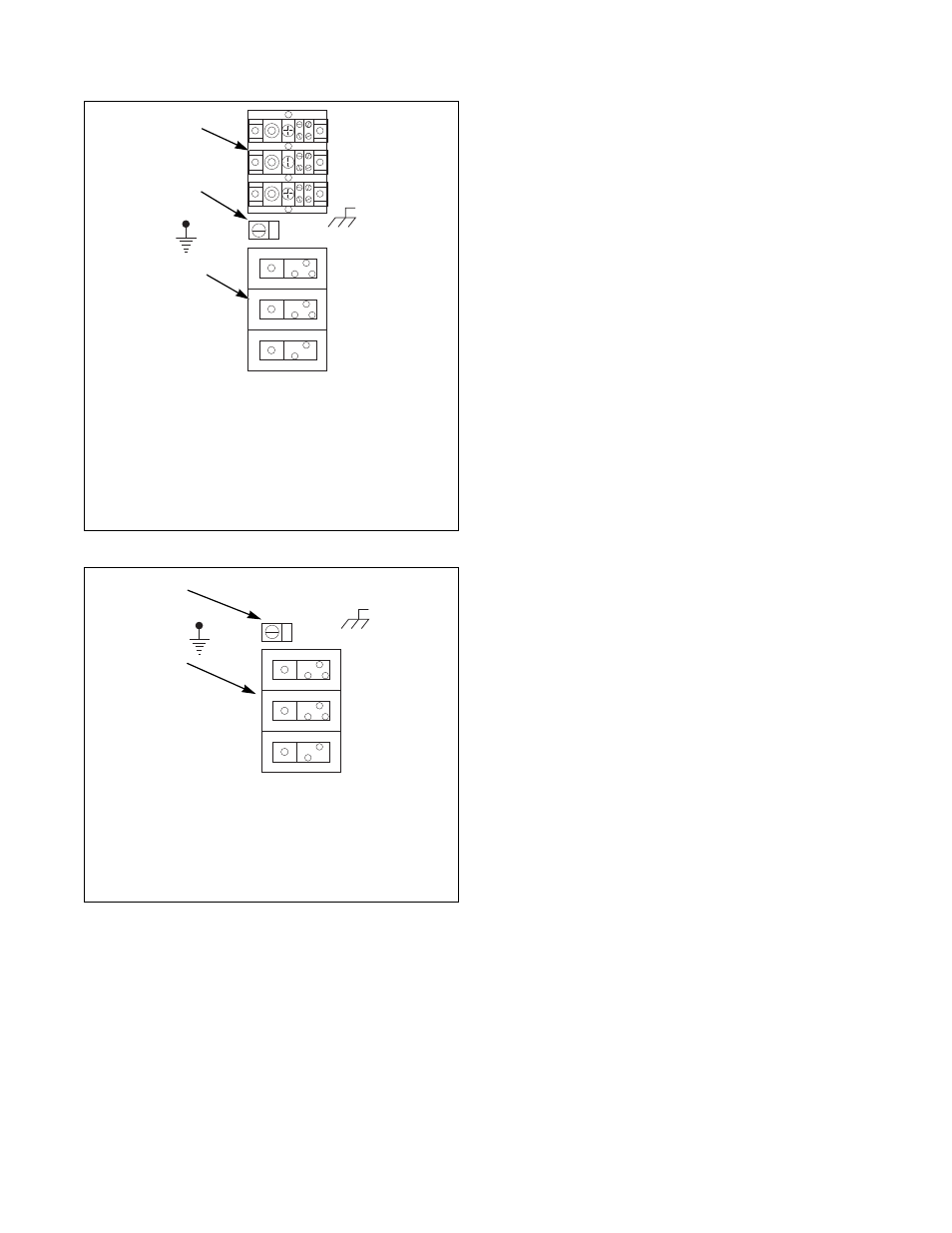

Figure 28
Figure 29
Machines can be converted for lower voltage
operation and/or 50 Hz operation. Refer to conversion
label by serial plate for details.
Phase Adder
IMPORTANT: Do not use a phase adder on any
machine.
Thermal Overload Protector
Two speed machines have thermal overload protectors
in drive motor windings. For variable-speed machines,
the AC drive provides overload protection for the
drive motor.
PHM700N
1 Grounding Lug: Connect to proven earth
ground
2 Customer Input Power Terminals
3 Internal Load Distribution - DO NOT connect
customer power source or load.
PHM721N
1 Grounding Lug: Connect to proven earth
ground
2 Customer Input Power Terminals
L1
L2
L3
SERVICE
GROUND CHASIS
TB1
PHM
2
1
3
MACHINES WITH ELECTRIC HEAT
L1
SERVICE
GROUND CHASIS
TB1
L2
L3
P
1
2
MACHINES WITHOUT ELECTRIC HEAT
