Installation
29 F8208301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

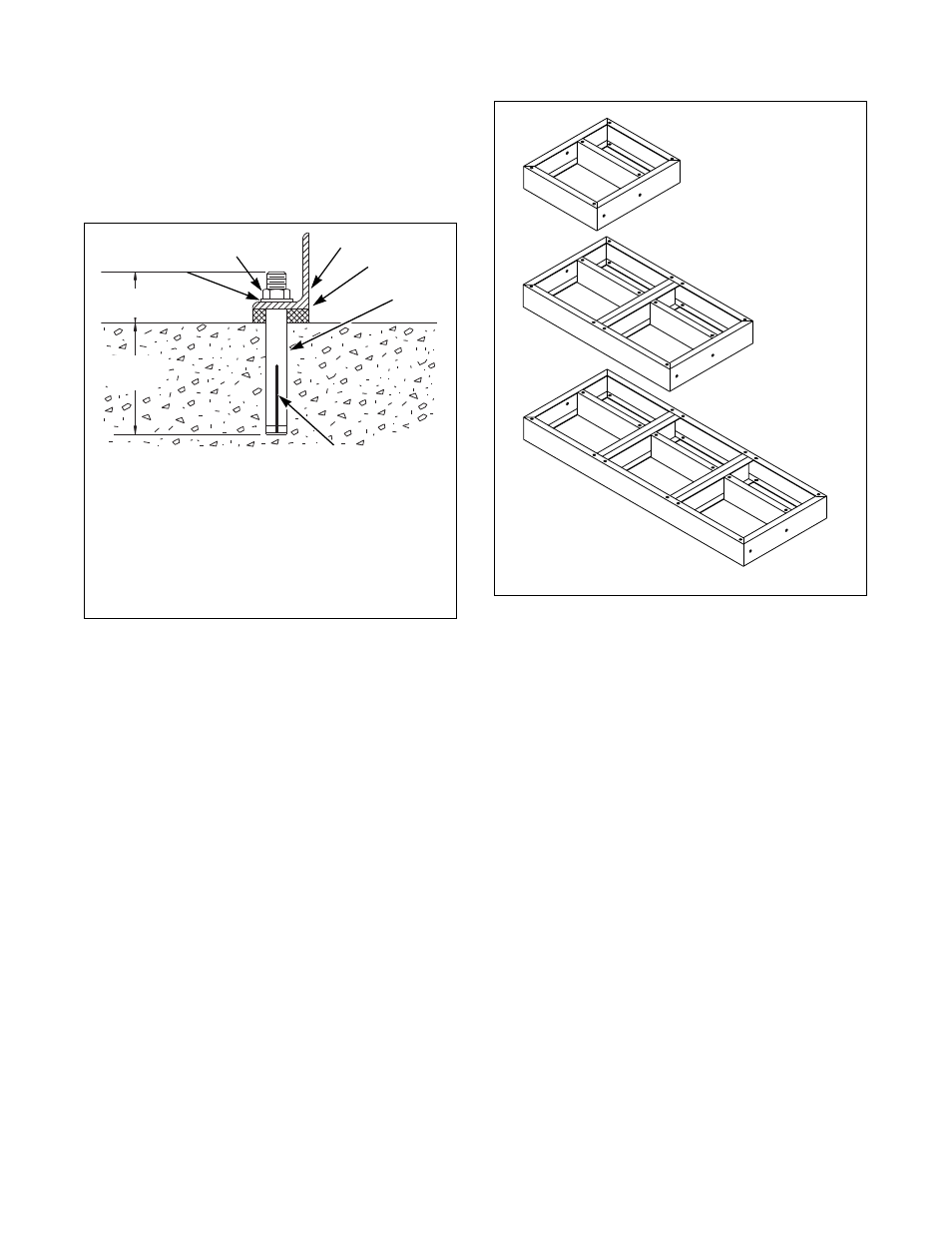

The completed expansion bolt installation is shown in
Figure 11.
NOTE: Check and retighten the nuts after five to
ten days of operation and every three months
thereafter.
Figure 11
Elevated Base Frame Installation
Factory-built elevated steel base frames are designed
to meet the specifications of the 20-60 2 speed,
F-speed and V-speed model washer-extractors only.
Refer to Figure 12. The spacing between two
machines provided by an elevated base is .38 inch
(9.5 mm) in 20, 30 and 60 pound models and .25 inch
(6.3 mm) in 40 pound models.
Figure 12
Installing With Elevated Base Frame
1. Verify the floor meets the requirements given in
the Machine Foundation section.
2. Use the elevated base frame as a template by
positioning the frame in the desired location and
marking the pre-drilled mounting holes on the
floor.
CHM2284N
1 Washer
2 Locknut
3 Machine Base or Base Frame
4 Machinery Grout
5 Adhesive
6 Expansion Bolt
CHM2284
Refer to
Table 4
1
5
3
2
4
6
1.5 in.
(38.1 mm)
H035I
