Installation
43 F8208301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Water Connection Requirements
Connections should be supplied by a hot and a cold
water line of at least the sizes shown in Table 8.
Installation of additional machines will require
proportionately larger water lines.
To connect water service to a machine with rubber
hoses, use the following procedure:
1. Before installing hoses, flush the building’s water
system at the machine connection valves for at
least 2 minutes.
2. Check filters in the machine’s inlet hoses for
proper fit and cleanliness before connecting.
3. Hang hoses in a large loop; do not allow them to
kink.
If additional hose lengths are needed, use flexible
hoses with screen filters.

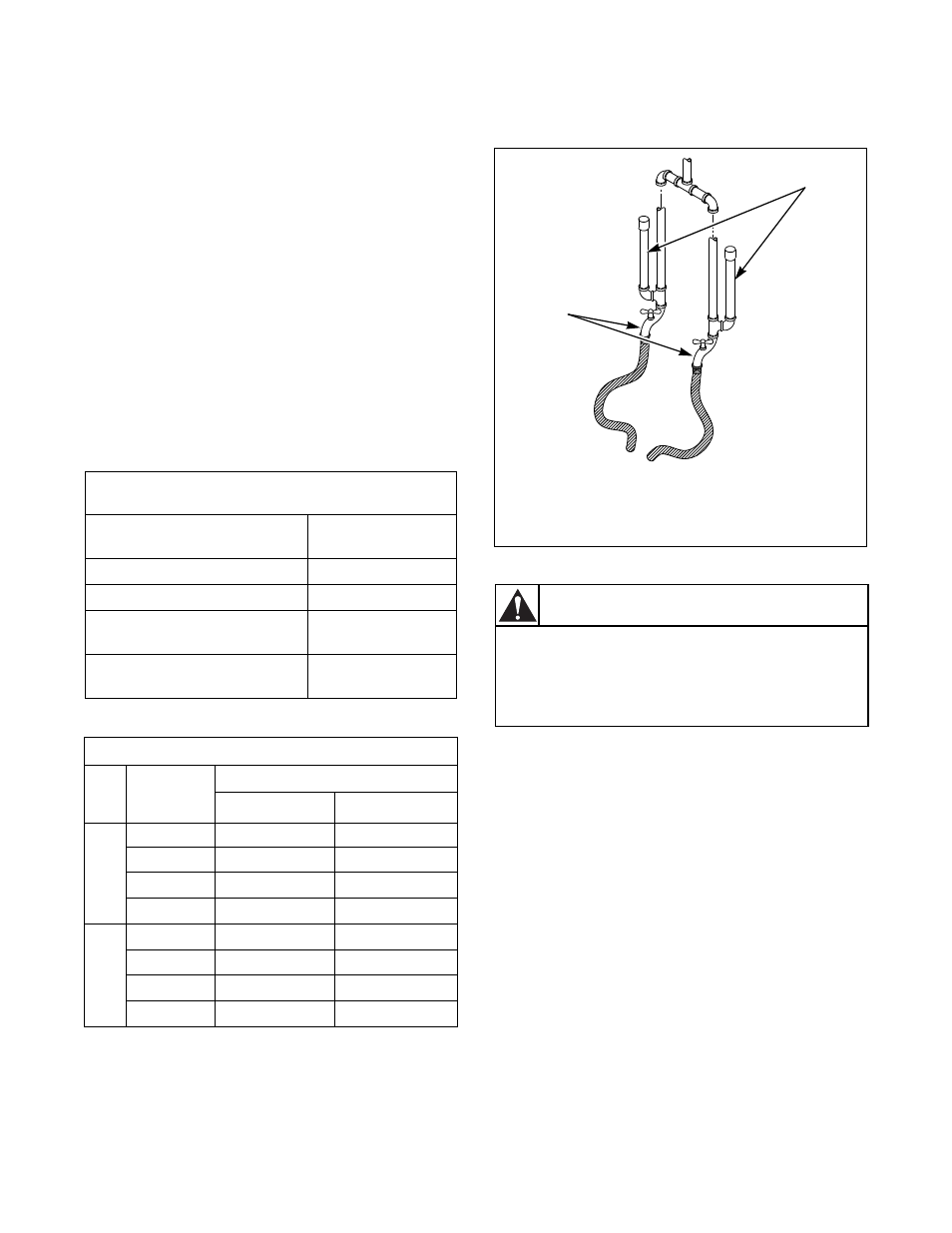

Suitable air cushions should be installed in supply
lines to prevent “hammering.” Refer to Figure 26.
Figure 26
Alliance Laundry Systems, LLC ranges of front
loading commercial clothes washing machines have
solenoid valves at the inlets. The water supply to the
washing machines is supplied with an AB air gap
between the soap tray and the drum. The soap tray is
certified to meet ASSE 1055 requirements for a
chemical dispenser. Minimum and maximum working
pressure 1.4 bar and 8.3 bar. The machines are
supplied with approved inlet hoses with a maximum
inlet dimension of 12.6 mm (ID).
NOTE: This machine has a fluid category 5
backflow prevention device built in between the
soap tray and drum.
Cabinet Hardmount
Water Supply Information
Water Inlet Connection size,
in. (mm) 3/4
(19)
Thread Size 11.5
Number of water inlets 2
Recommended pressure,
psi (bar) 30-85
(2-5.7)
Inlet flow capacity,
gal-min (l-min) (80 psi) C20-C80: 12 (45)
C125: 50 (189)
Table 7
Water Supply Line Sizing
Mod
e
l
Number
of
Machines
Supply Line Size
Main Hot/Cold
20
– 80
1 .75 in. (19 mm) .75 in. (19 mm)
2 1 in. (25 mm) .75 in. (19 mm)
3 1.25 in. (32 mm) 1 in. (25 mm)
4 1.5 in. (38 mm) 1 in. (25 mm)
125
1 1.5 in. (38 mm) 1 in. (25 mm)
2 2 in. (50 mm) 1.5 in. (38 mm)
3 2 in. (50 mm) 2 in. (50 mm)
4 2.5 in. (70 mm) 2 in. (50 mm)
Table 8
MW008J
1 Water Supply Faucets
2 Air Cushions (Risers)
MW008J
1
2
To prevent personal injury, avoid contact
with inlet water temperatures higher than
125° Fahrenheit (51° Celsius) and hot
surfaces.
W748
WARNING
