Installation
25 F8208301 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Concrete Foundation Installation
A concrete foundation pad may be constructed to
elevate the machines. The concrete foundation pad
must be poured, reinforced with rebar and tied to the
existing floor with reinforcing bars. Refer to Figure 7,
Figure 8 or Figure 9 for a typical concrete foundation
pad installation.
1. Verify that the floor meets the requirements given
in the Machine Foundation section.
2. Excavate the floor to a depth of approximately
9 inches (230 mm) below the floor surface,
making certain that the sides of the hole slope
outwards from top to bottom. The bottom of the
hole should be 6 inches (152 mm) larger all
around than the top.
3. Wet the hole well and brush the bottom and sides
with cement grout.

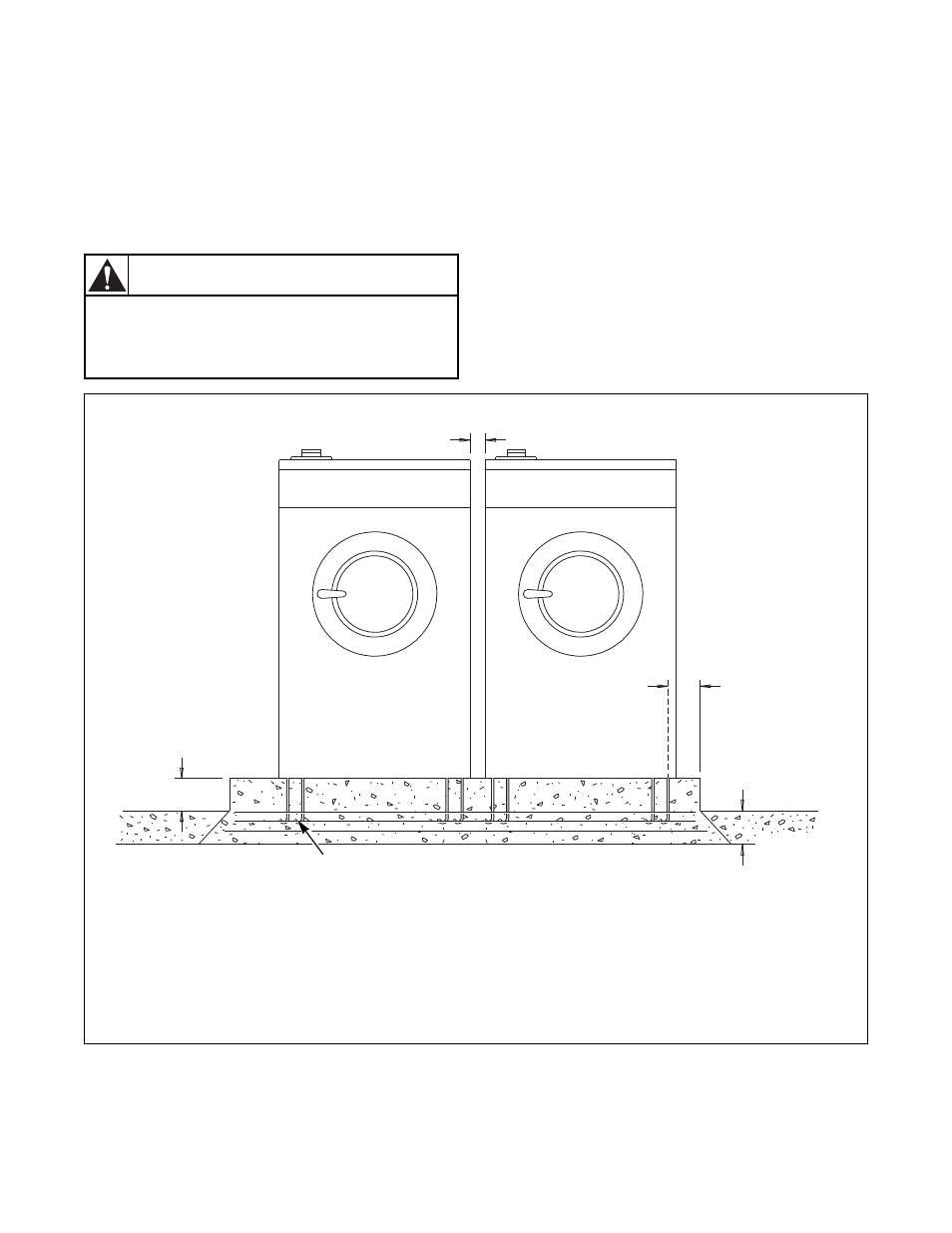

Figure 7
To reduce the risk of fire, this appliance
must be bolted to an uncovered concrete
floor.
W731
WARNING
CHM2281N
A Pad height must not exceed 8 in. (203 mm) D 4 in. (102 mm) minimum
above existing floor (2 and F-Speed Models)
B .5 in. (13 mm) minimum 6 in. (152 mm) minimum (V-Speed Models)
C 4 in. (102 mm) minimum E Concrete reinforcing bar
CHM2281N
B
C
20, 30, 40 AND 60 MODELS
A
D
E
