Specifications and Dimensions
F8208301 22 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

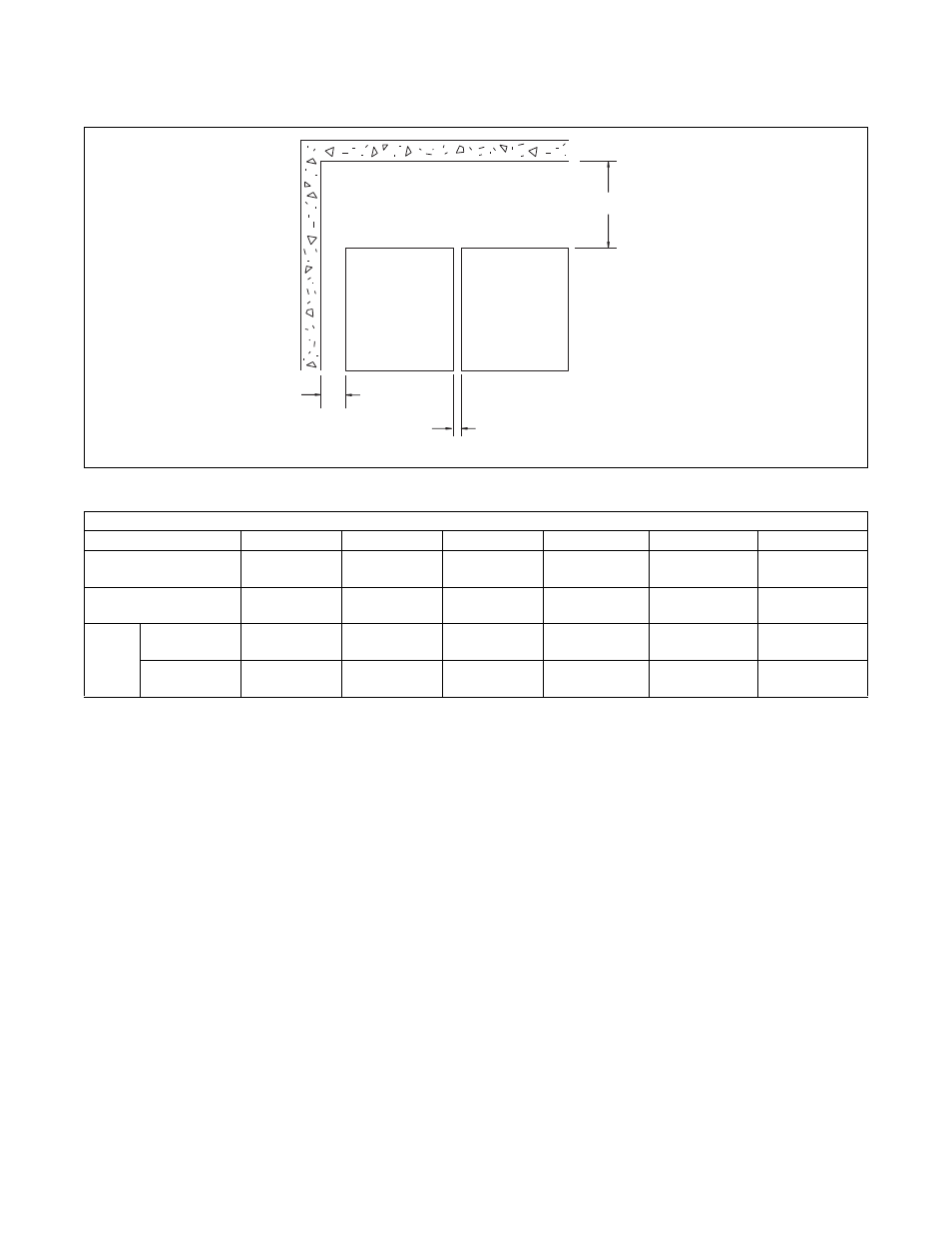

Dimensional Clearances
CHM2280N
Figure 6
Machine Capacity Dimensional Clearances
Dimensions 20 30 40 60 80 125
A
2 in.
(51 mm)
2 in.
(51 mm)
2 in.
(51 mm)
2 in.
(51 mm)
6 in.
(152 mm)
24 in.
(600 mm)
B
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
C
Recommended
24 in.
(610 mm)
24 in.
(610 mm)
24 in.
(610 mm)
24 in.
(610 mm)
24 in.
(610 mm)
36 in.
(914 mm)
Minimum
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
18 in.
(457 mm)
24 in.
(610 mm)
CHM2280N
A
B
C
FRONT
