To Install Glass (Figure 2)
Component Parts
I Socket
J Bulb (included)
K Retaining Ring
L
Inner Glass
M Outer Glass
N Socket Tool
O Spacer
1. Remove two retaining rings (K) from socket (I). Retaining rings are
shipped installed on socket.
2. Install light bulb (J). Be careful not to touch bulb with bare hands; oil
from the hands will dramatically reduce bulb life.
3. Slip outer glass (M) and spacer (O) over socket (I) and thread one of the
retaining rings onto the socket (I) using provided socket tool (N). Note:
Flat side of retaining ring should oriented as shown.
4. Slip inner glass (L) over socket (I).
5. Thread retaining ring (K) onto socket (I) using provided socket tool (N)
until snug against inner glass (L). Be careful not to over tighten. Note:
Flat side of retaining ring should be oriented as shown.
6. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

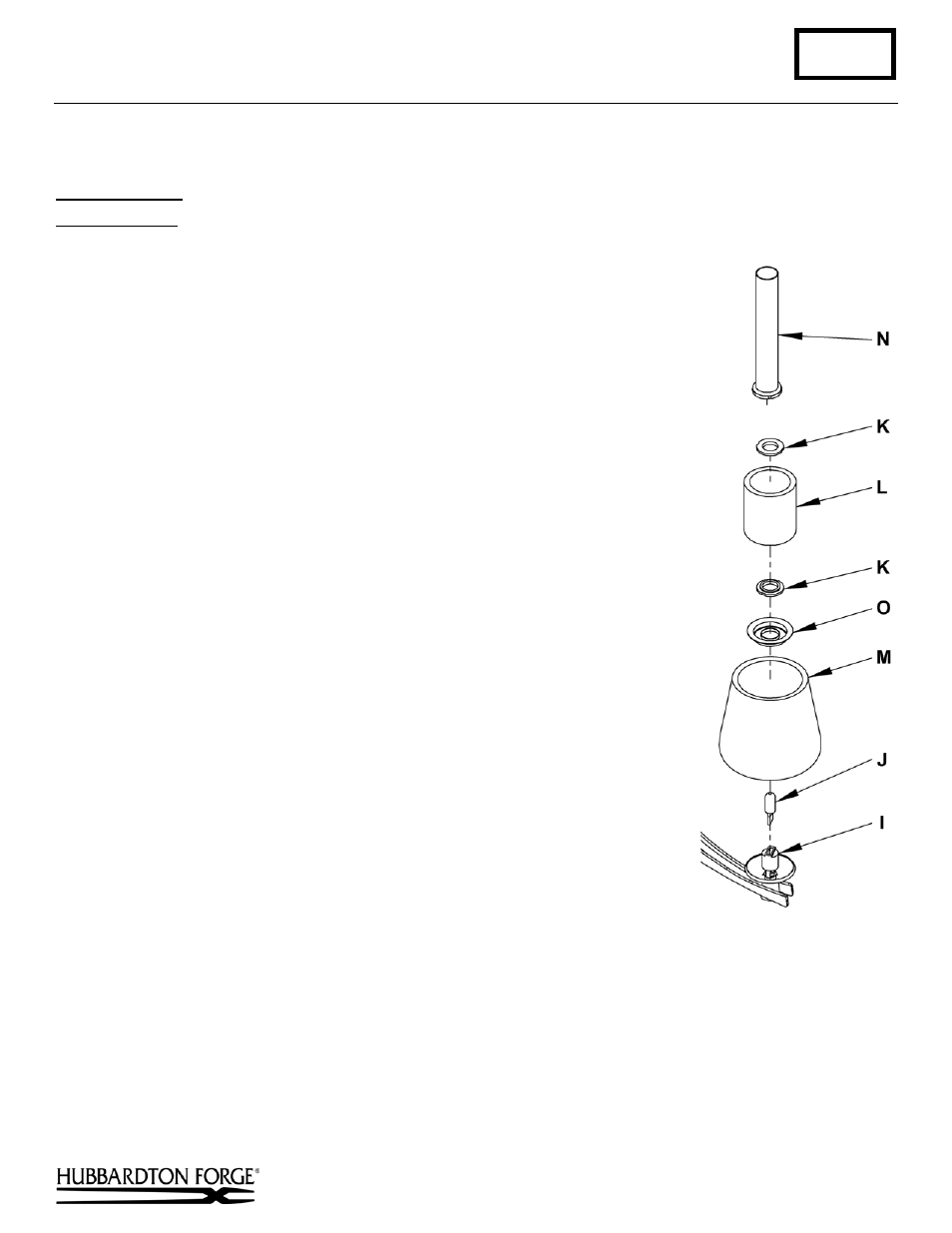

(Figure 2)
