Installation Instructions
B286
Fuse Vintage Platinum Sconces 205050, 205055 & 205060 Page 2 of 2
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28108
5. Carefully tuck all wires behind the fixture assembly and inside the wall mount bracket and place the fixture firmly
onto bracket (B) and fasten with two #8 black screws (E) and rubber washers (F) on top.
6. Install the two remaining black screws (E) in bottom of fixture attaching to wall mounting bracket (B).

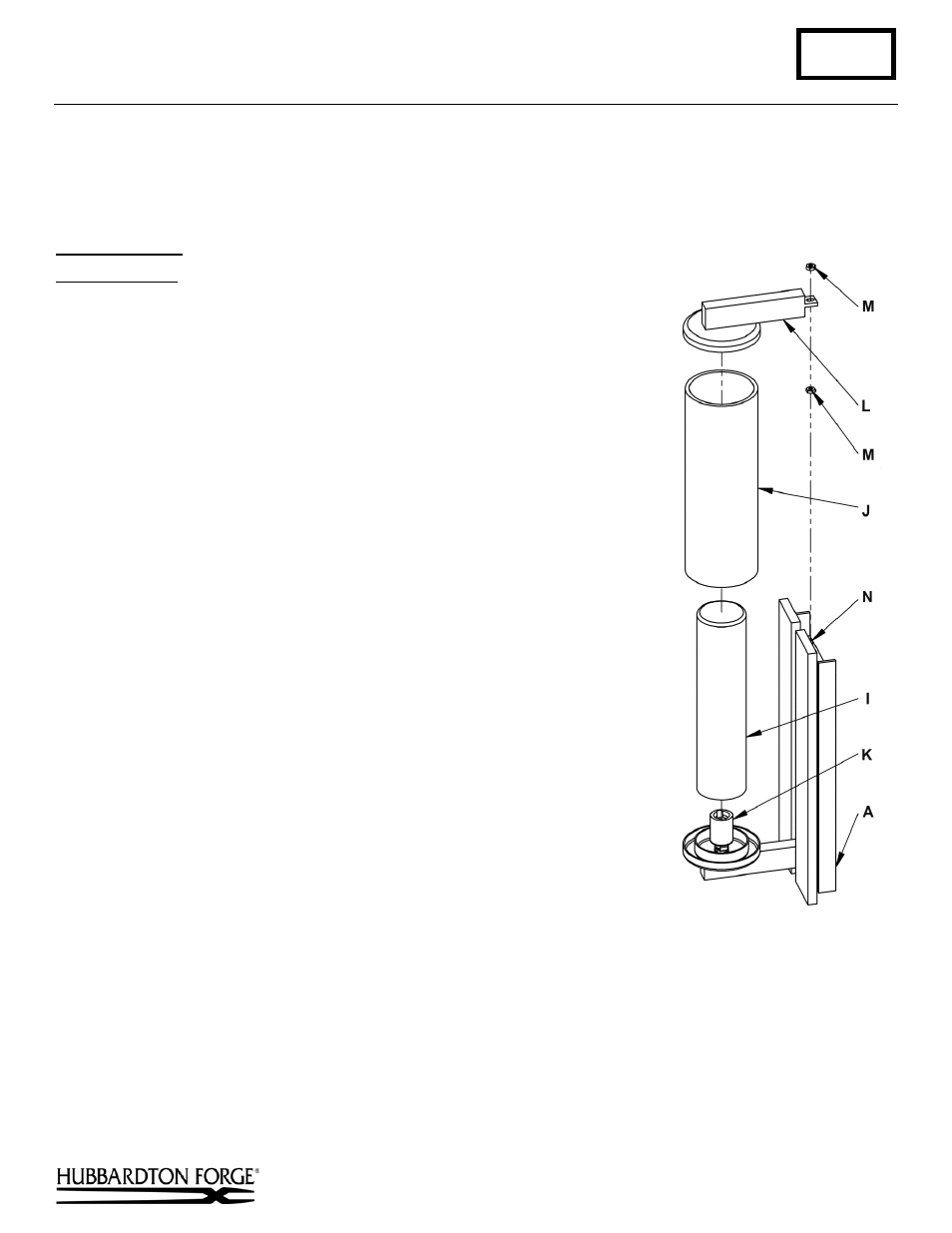

To Install Glass (Figure 2)
Component Parts
A Fixture Assembly
I
Inner Glass
J Outer Glass
K Socket
L
Top Arm
M Hex Nut (2)
N Threaded Stud
1. Install bulb (not included).
2. Slip inner glass (I) over socket (K) until it rest in the cup.
3. Slip outer glass (J) over inner glass (I) until it rest in the larger cup.
4. Thread on hex nut (M) on to threaded stud (N).
5. Place the top arm (L) down over the outer glass (J) and slip onto the
threaded stud (N).
6. Secure the top arm (L) by threading the hex nut (M) onto the threaded
stud (N). Tighten until snug.
7. Restore electricity at main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
*
Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 2)
