3. Attach a rack-mounting bracket to one side of the power supply unit
using four of the screws that came with the unit, as displayed in
Figure 47.

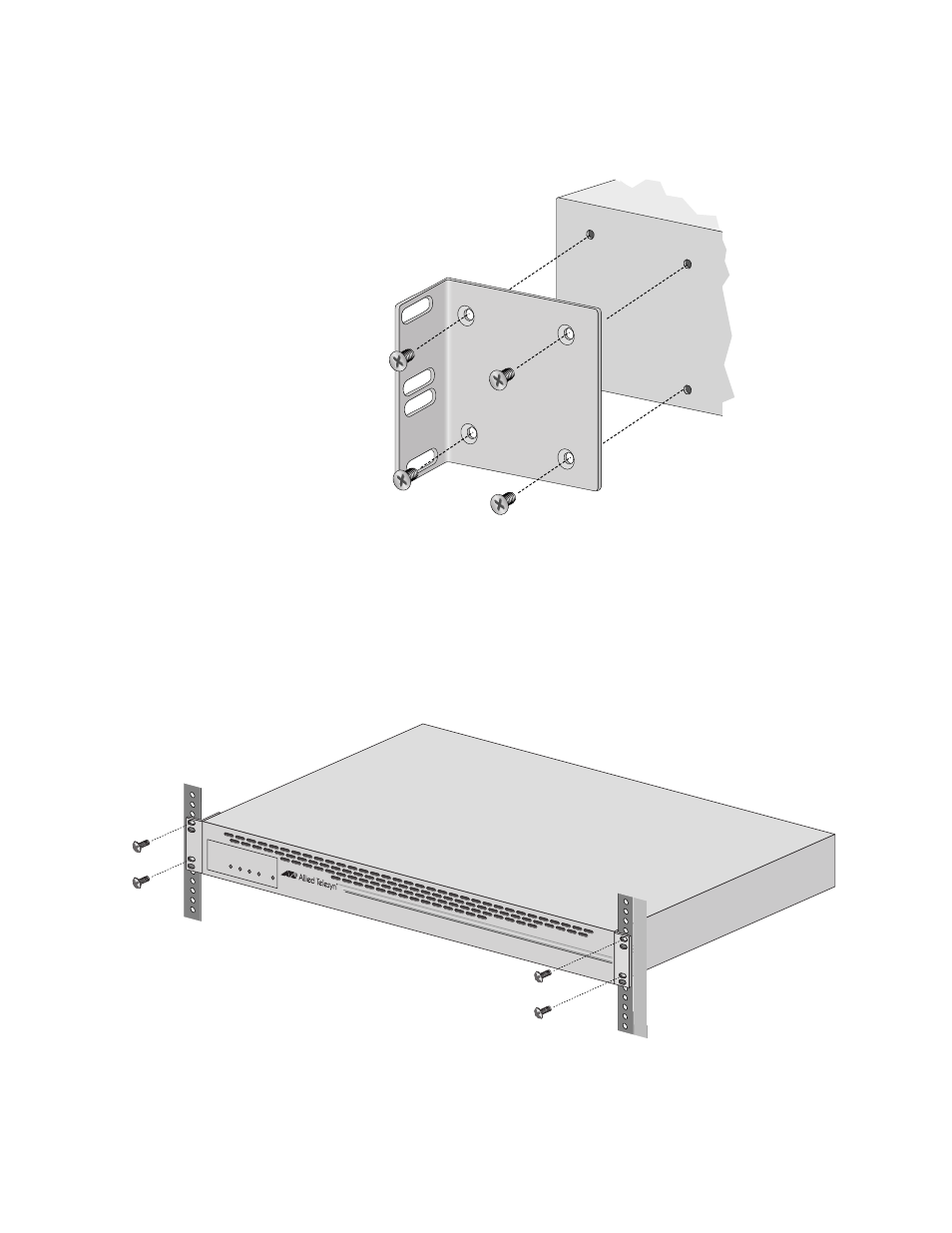

Figure 47 Attaching a Rack-mounting Bracket
4. Install the second rack-mounting bracket on the other side of the
power supply unit using the four remaining screws.
5. Mount and secure the power supply unit in a19-inch rack by using
four standard screws (not provided).
Figure 48 Installing the Power Supply Unit in a Rack
1
2
3
4
FAN
RPS
