AT-8350GB Installation Guide
25
10/100 Mbps
Port LEDs
Each 10/100 Mbps port has one LED. Each LED can display a variety of
port status information, including link status, speed, and duplex mode.

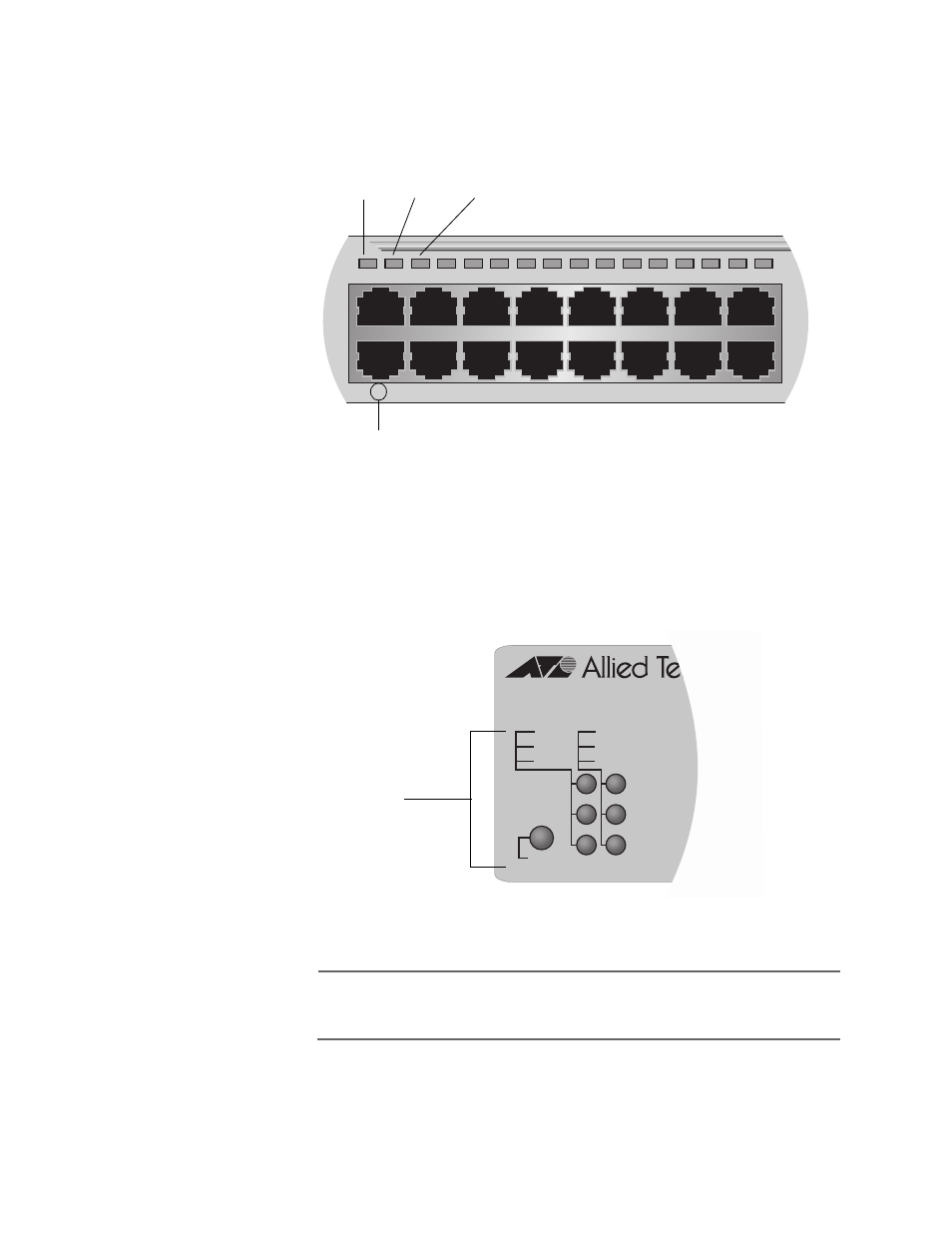

Figure 10 Port LEDs
You use the Mode select button to toggle the port LEDs to display the
different information. The port Mode LEDs above the Mode button
indicate what information the port LEDs are displaying. For example, if
the 100 mode LED is lit, then each port LED is displaying port speed.
Figure 11 Port Mode LEDs and Button
Note
Toggling the Mode selection button does not affect the normal
operations of the switch.
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Port 1
Port No.
LED
Port 2
LED
Port 3
LED
Port Mode
LEDs
Fast Ethernet Switch
AT-8350GB
FAULT
PWR
RPS LINK
100
FULL
MODE
