AT-8350GB Installation Guide
57
Installing the Switch on a Desktop
Perform the following procedure to install the switch on a desktop or
table. If you would prefer to install the switch in a rack, go to the next
procedure:
1. Place the unit upside down on a level, secure surface.
2. Remove the adhesive tabs from the stick-on rubber feet and apply
one tab to each corner on the bottom of the switch.

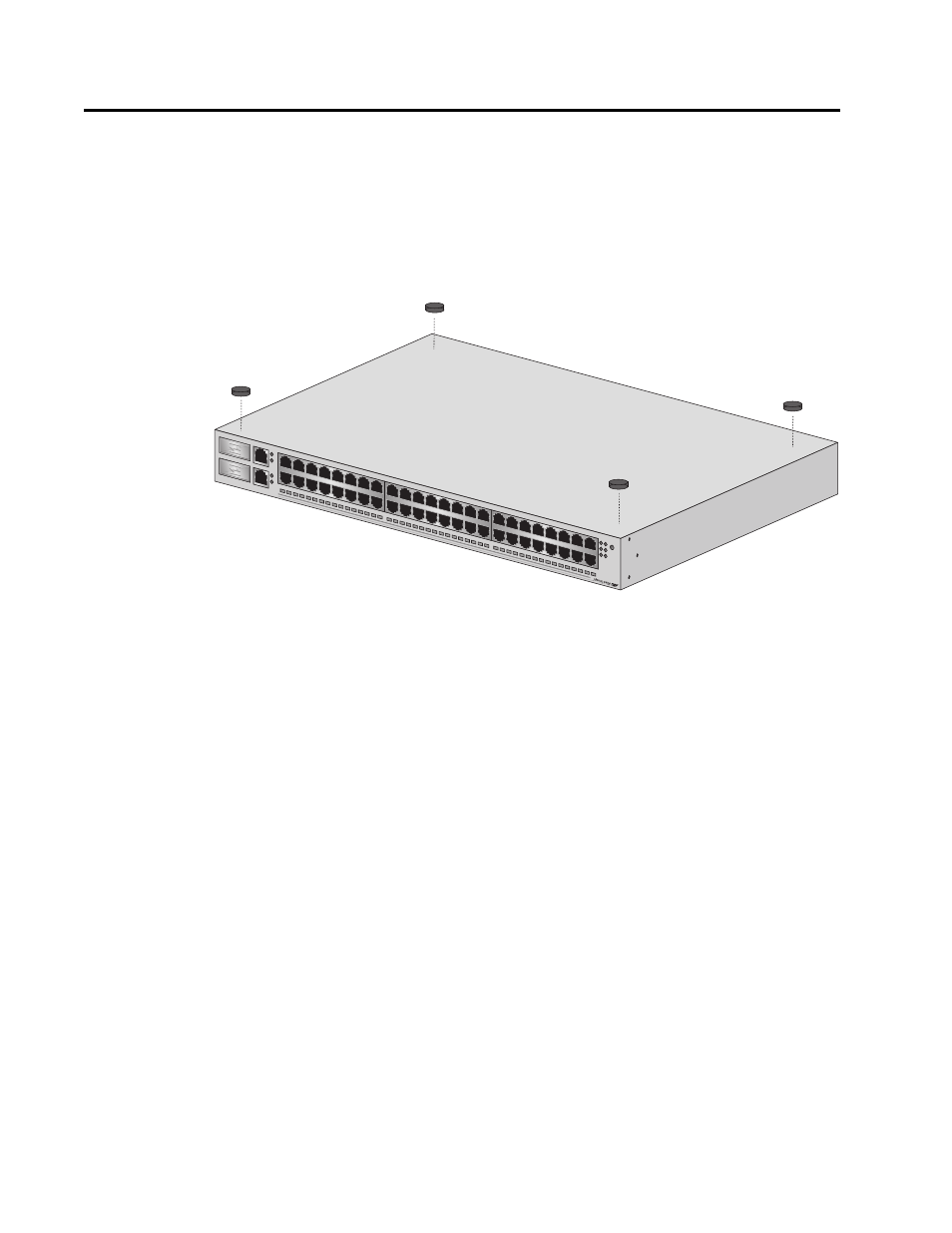

Figure 29 Attaching Rubber Feet to Switch
3. Turn the switch over.
